7.5.3 Connecting

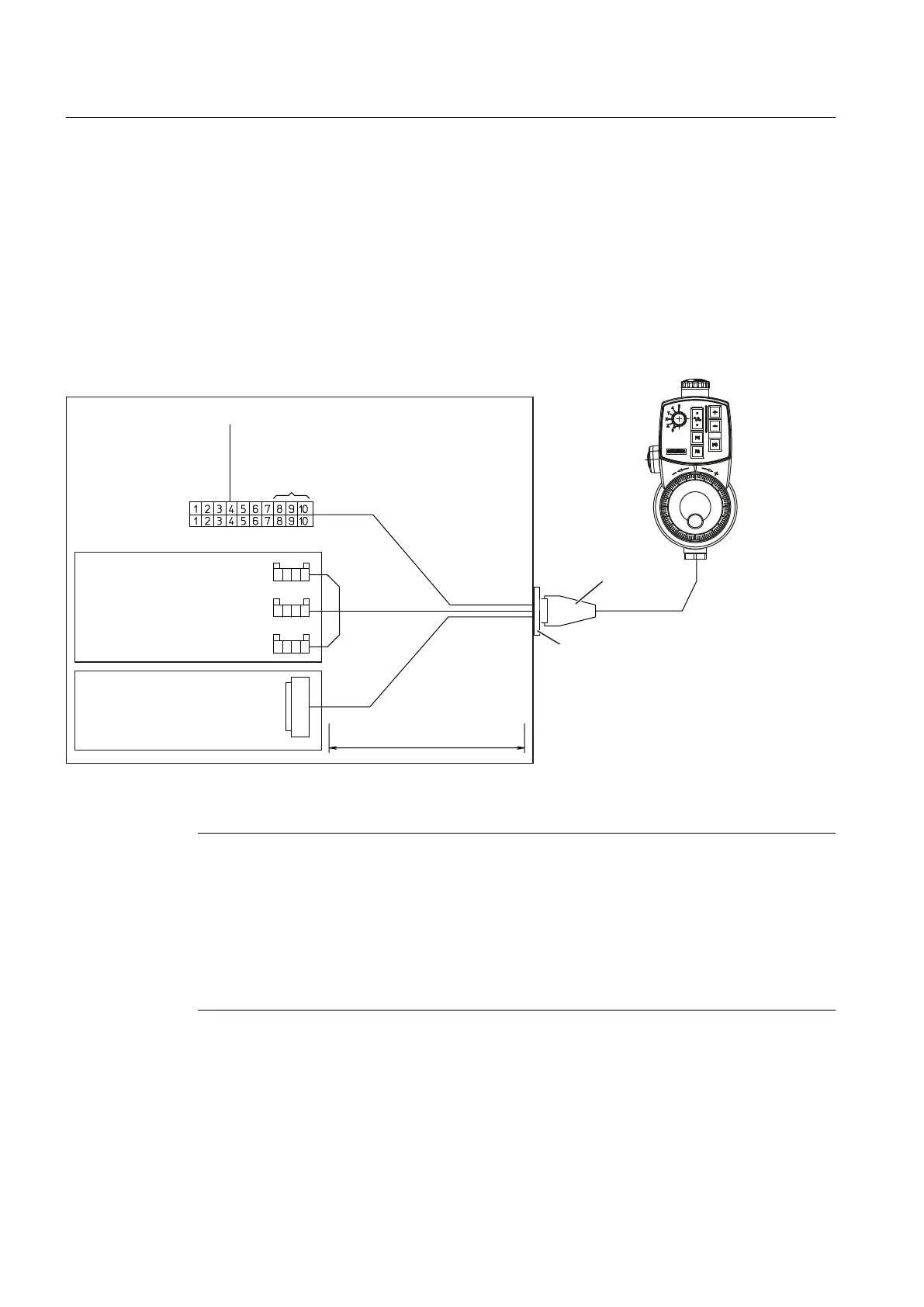

Connection diagram overview
A connection kit that must be ordered separately is required for connection of the mini HHU.
This connection kit contains a flange socket made of metal for installation in the control housing
on the machine and a terminating connector for overriding the EMERGENCY STOP circuit
when the handheld unit is not connected.
3OXJLQFRQQHFWRU
)ODQJHVRFNHW
&DEOHOHQJWK P
SLQVFUHZWHUPLQDO
SLQ86%VRFNHW
SLQ86%VRFNHW
SLQ86%VRFNHW
SROH
7HUPLQDOEORFN
1RWDVVLJQHG
&RQWUROOHUKRXVLQJ
)UHHO\ZLUHG
0LQL++8
&RQQHFWLRQFDEOHV
;
;
;
;
338
0&3&31
0&3&31



Figure 7-36 Connection diagram
Note
Mini HHU on the MCP Interface PN
You can also connect the mini HHU to the MCP Interface PN module:
● The selection switch at X51
● The function keys at X52 and X55
● The handwheel at X60 / X62
Note that the SINUMERIK 828D software can process up to three handwheels.
Connectable components
