Additional options
Optionally, you can use the following brackets for connection of the mini HHU:
● Angle box
An angle box is available as an option, which permits the cable outlet direction to be rotated
through 90°.
Note
The angular socket can only be used in conjunction with the non-assembled connection
kit.
● Adapter plate
To install the metal flange socket in the location for plastic flange sockets, an adapter plate
is available.

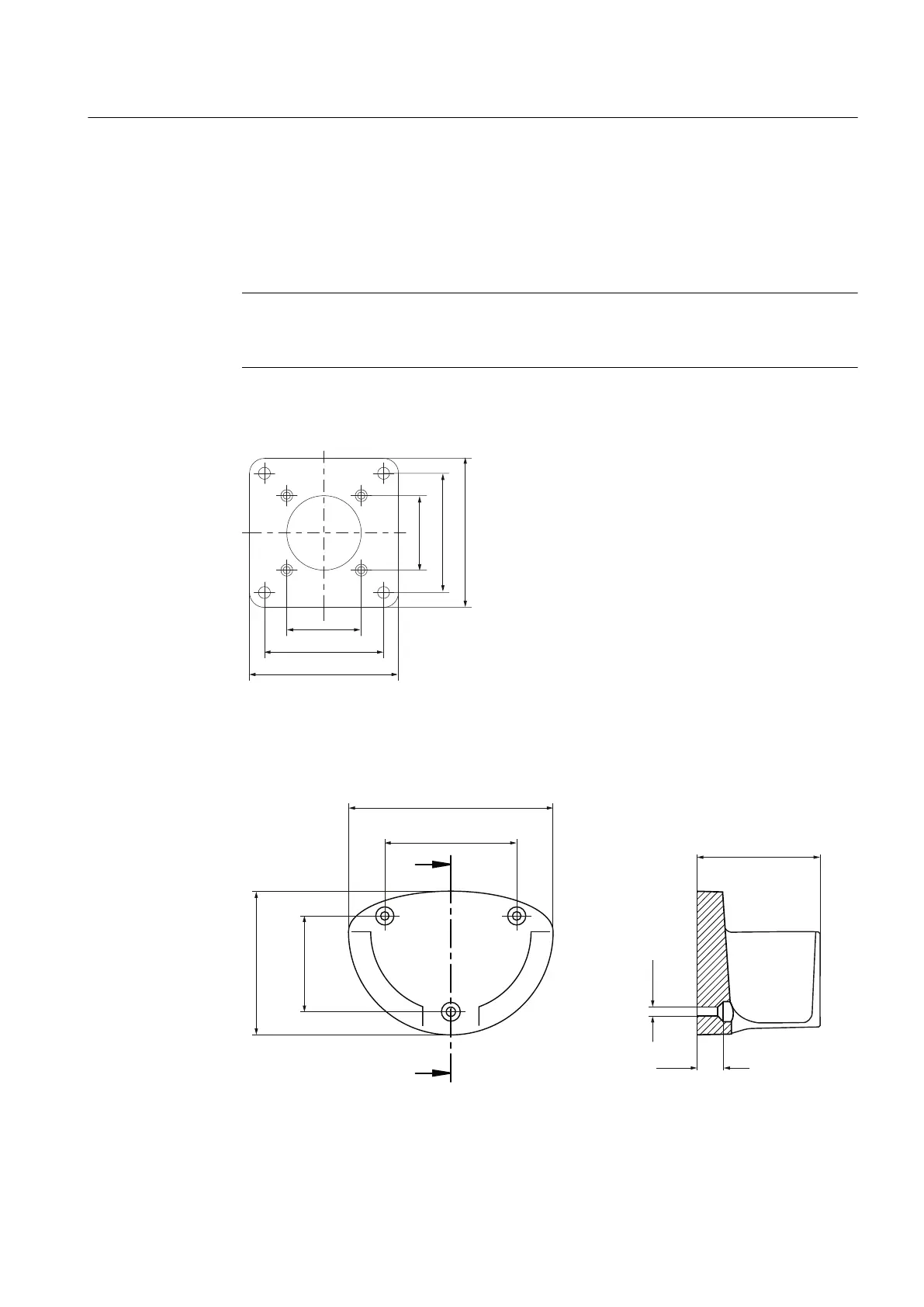

Figure 7-34 Dimension drawing of the adapter plate
● Holder
The mini HHU can be stored in a screw-on holder; this enables safe storage even on non-
magnetic surfaces. The holder is secured with three M4 screws.
Figure 7-35 Dimension drawing of the holder
Connectable components
7.5 Mini handheld unit
PPU
Manual, 01/2014, 6FC5397-2DP40-3BA3 159
