Note
Tools for configuring and analyzing PROFINET components
To configure and analyze PROFINET components, Siemens Automation and Drives Service
& Support provides the following tools at no cost:
● Primary Setup Tool (PST)
Using the Primary Setup Tool (PST), you can configure PROFINET components, e.g. you
can allocate the PN/PN coupler a device name.
You can find this tool in the Internet at the following address: (http://
support.automation.siemens.com/WW/view/en/19440762)
● PRONETA
PRONETA (PROFINET network analysis) is a PC tool to analyze PROFINET networks.
You can find this tool in the Internet under the following address: (http://
support.automation.siemens.com/WW/view/en/67460624)
Configuration
The device name must be defined in the following cases:
● When commissioning for the first time
● When a device is replaced
The PC must be connected using a crossover cable with, e.g. X2 at the PN/PN coupler.
Procedure:
1. Under "Tools" select → "Set PG/PC interface" →"TCP/IP" → "Intel(R) PRO/100 VM".
2. Under "Target system" select → "Edit Ethernet nodes ...".
3. In the dialog window "Edit Ethernet Nodes", press the "Search..." button under "Nodes that
can be accessed online".

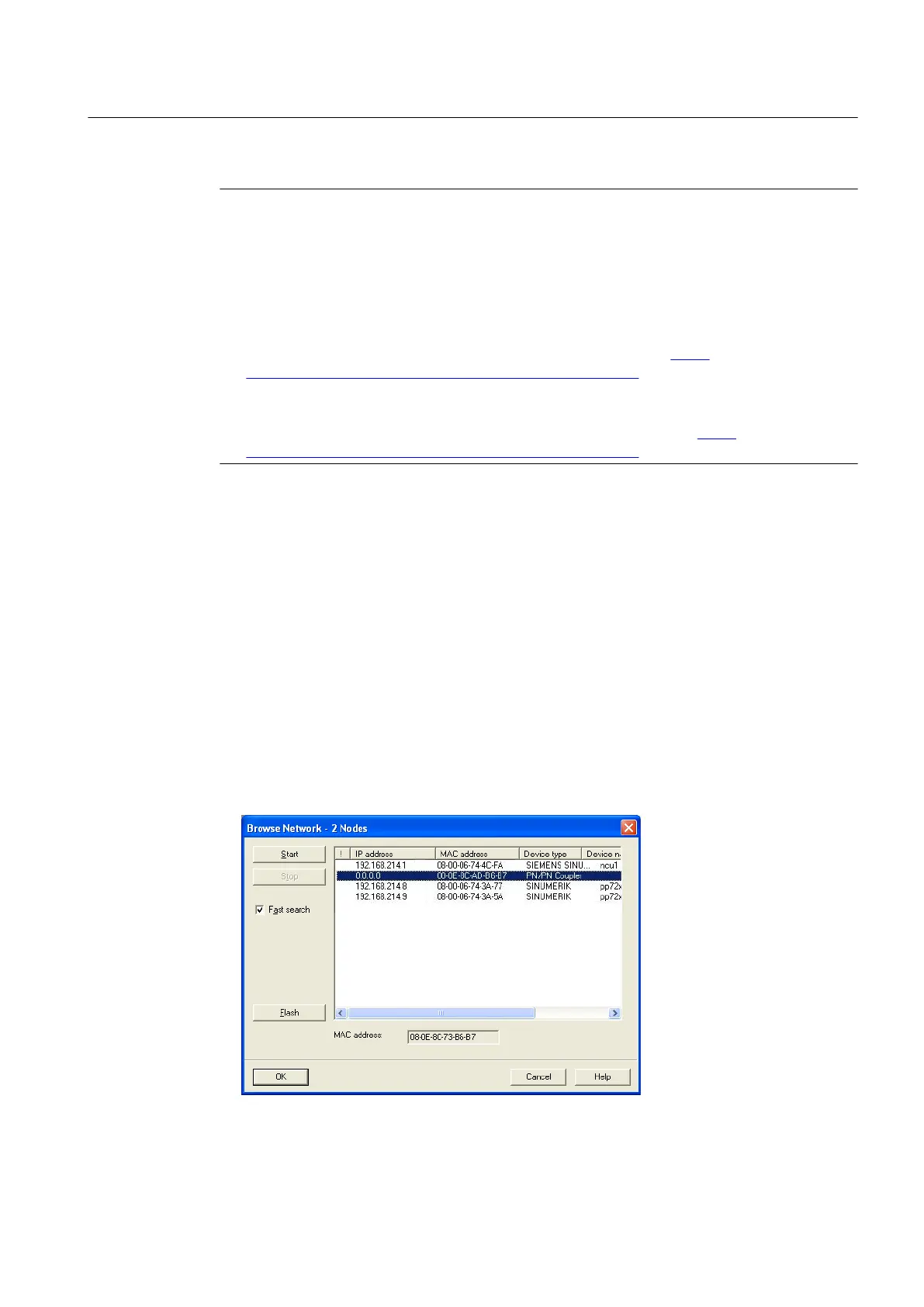

4. In the dialog window "Search Network" select the coupler and press "OK".
Spare parts and accessories
9.2 PN/PN coupler
PPU
Manual, 01/2014, 6FC5397-2DP40-3BA3 231
