Inserting the CompactFlash card
To correctly insert the CompactFlash card in the slot, note the position the edge (arrow) in the
figure below:

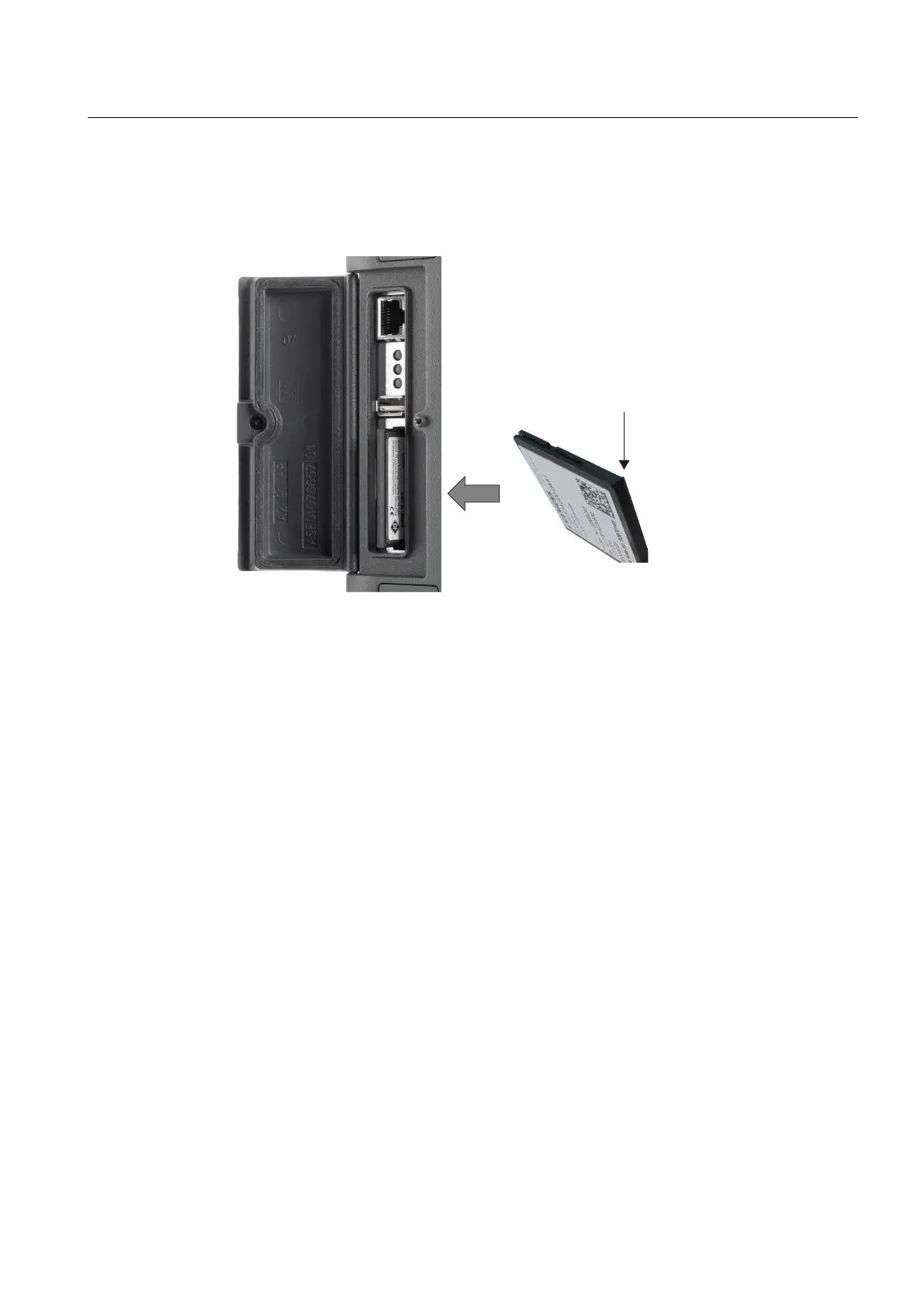

Figure 2-10 Direction to insert the user CompactFlash card
System description
2.9 CompactFlash Cards
PPU
Manual, 01/2014, 6FC5397-2DP40-3BA3 33
