Siemens SINUMERIK 840D Maintenance Manual

OCTOBER 2005 PRE-INSTALLATION PROCEDURES 29
SIEMENS MAINTENANCE MANUAL
Installation). For high performance machines, the machine must be bolted to
achieve maximum performance.

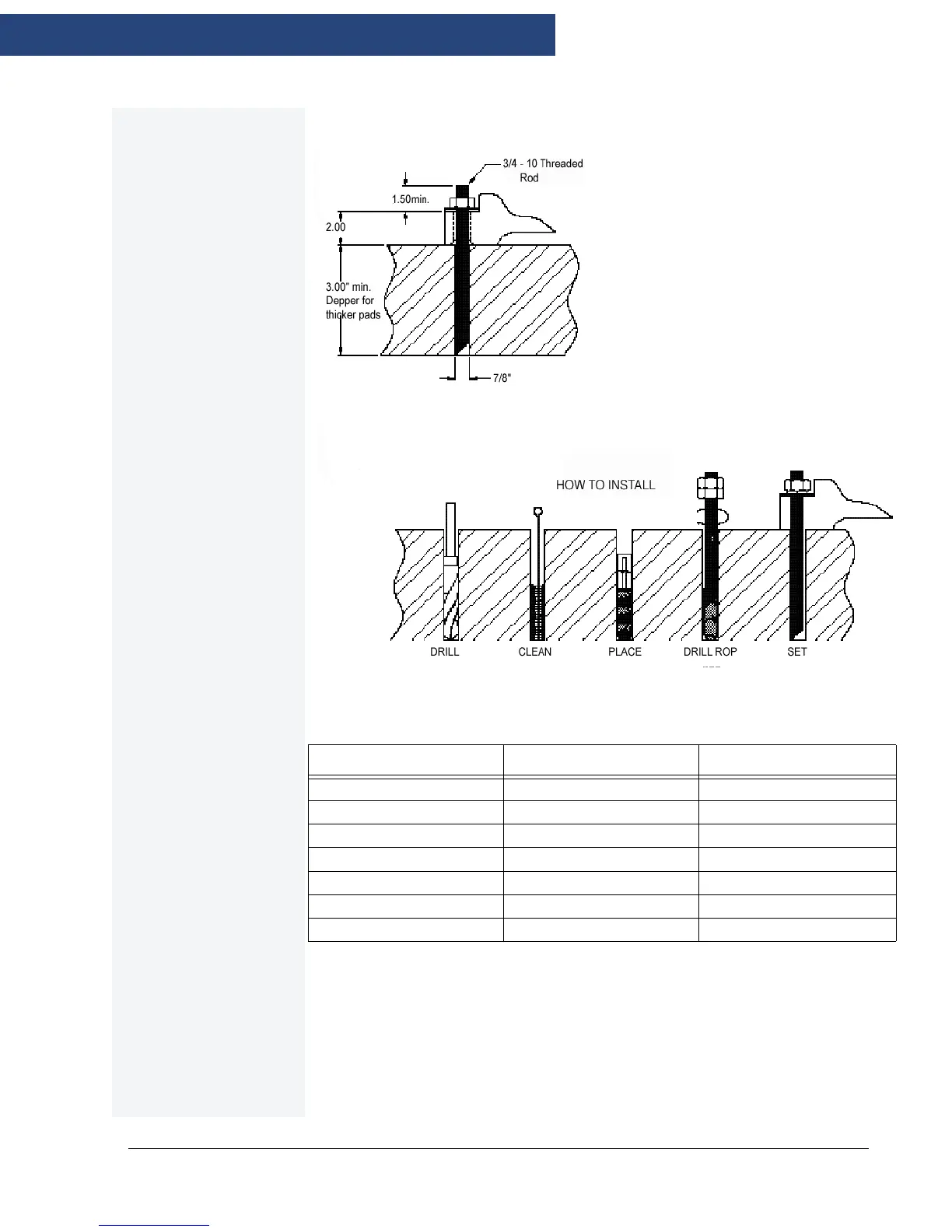

Figure 2-2: Anchor Stud Installation
Anchor stud installation:
1. Wear safety goggles.
2. Use 7/8 carbide tipped drill for the anchor you are using.
3. Use a rotary-hammer drill and drill the base material to depth.
Table 2-1: Isolation Pad Dimensions
MACHINE A (DEPTH) B (WIDTH)
2216/ 3016 7ft 9in 9ft 6in
4020 8ft 7in 11ft
3020 8ft 5in 10ft 2in
4525 8ft 10in 12ft
6030 9ft 11in 14ft 6in
6535 9ft 11in 15ft 10in
8030 9ft 11in 18ft 9in

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
