Technical Data
4.7 Overecxitation Protection 24
SIPROTEC, 7RW80, Manual
C53000-G1140-C233-1, Release date 10.2010
194

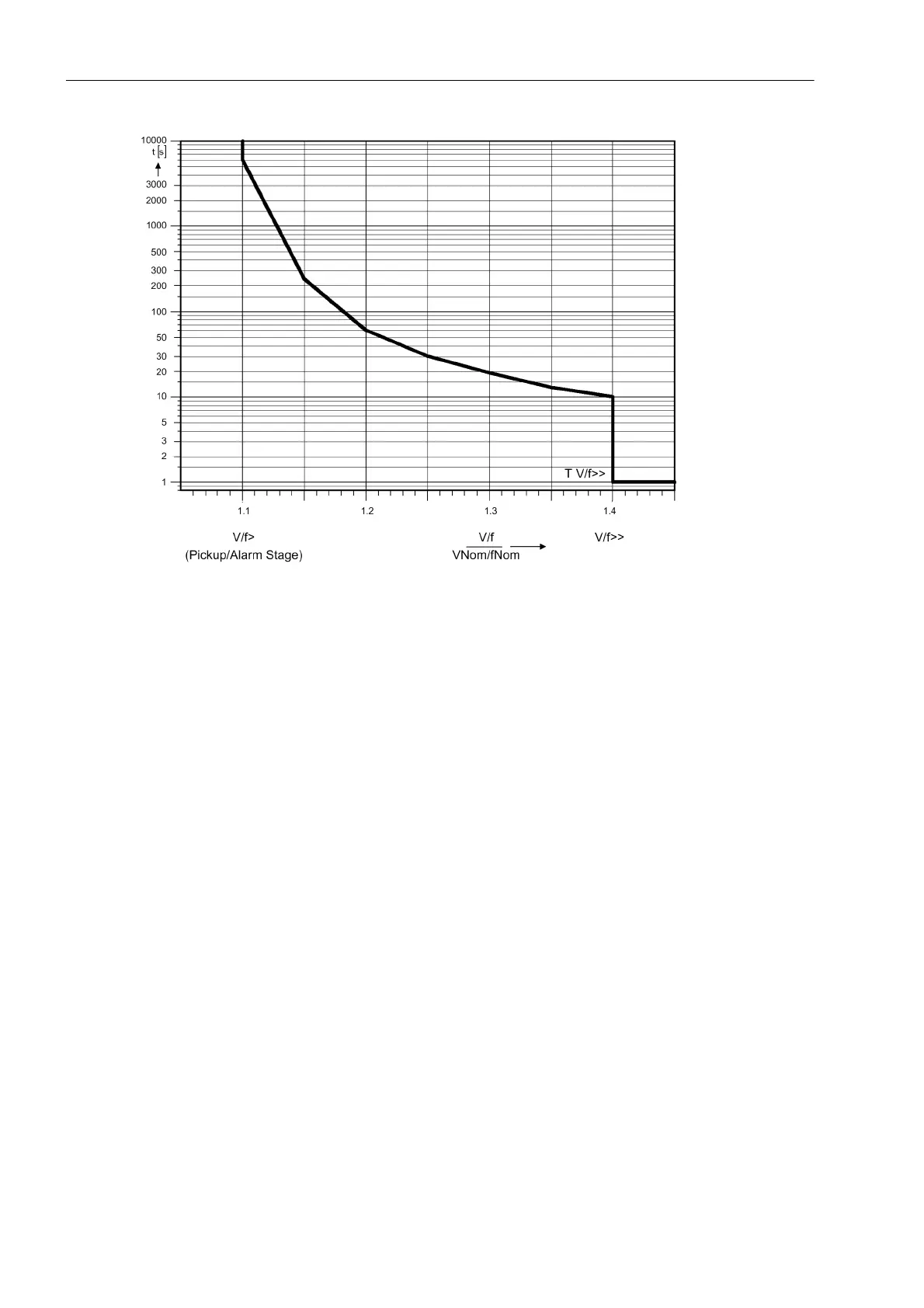

Figure 4-1 Resulting Tripping Characteristic from Thermal Replica and Stage Characteristic of the Over-
excitation Protection (Default Setting)
