4.12 Dimensions
SIPROTEC, 7RW80, Manual
C53000-G1140-C233-1, Release date 10.2010
206
4.12.2 Panel Surface Mounting (Housing Size 1/6)

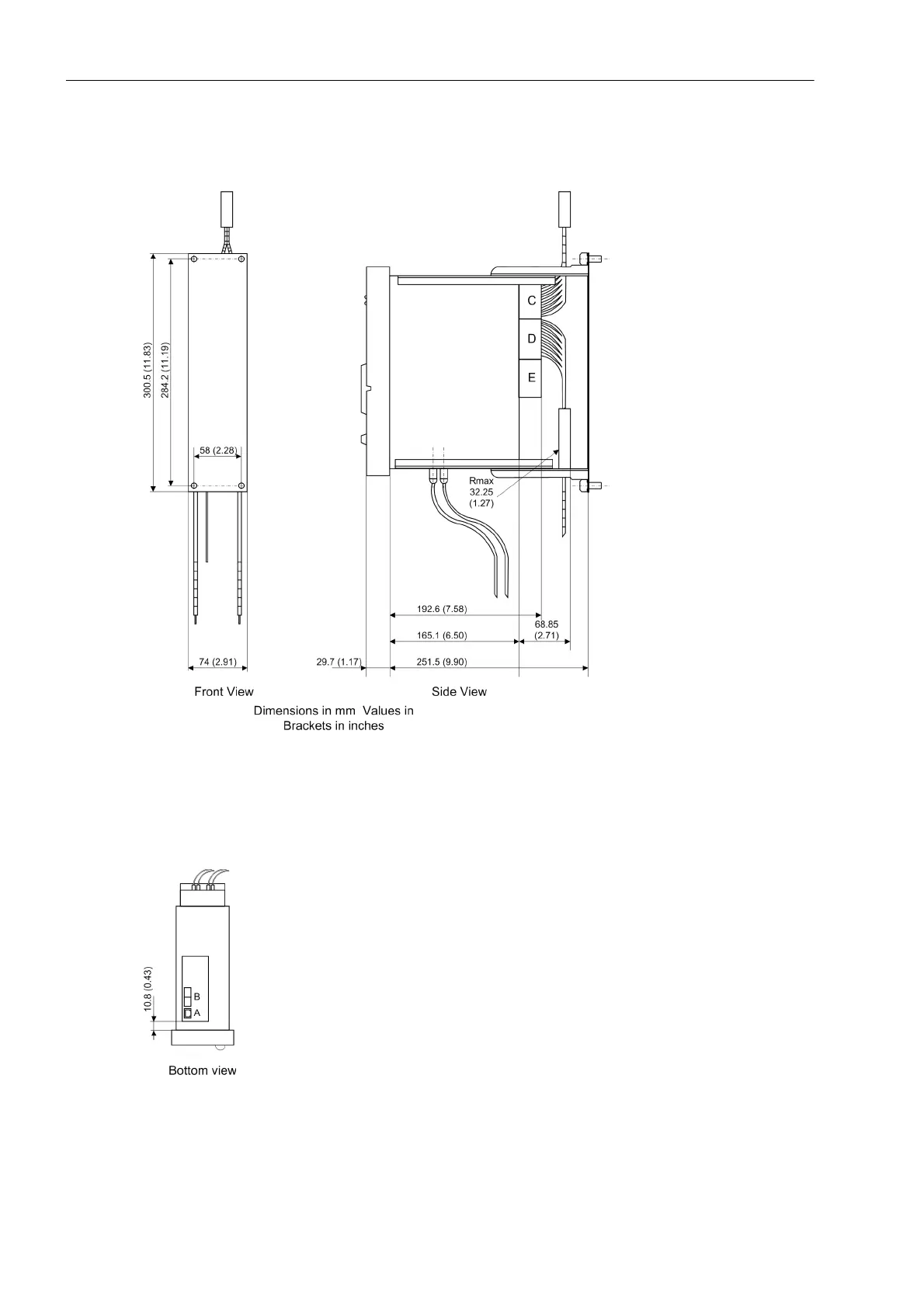

Figure 4-3 Dimensional drawing of a 7RW80 for panel flush mounting (housing size
1
/
6
)
4.12.3 Bottom view
Figure 4-4 Bottom view of a 7RW80 (housing size
1
/
6
)
■
