Siemens SIPROTEC 7RW80 - A.3 Connection Examples; Connection Examples

Appendix
A.3 Connection Examples
SIPROTEC, 7RW80, Manual
C53000-G1140-C233-1, Release date 10.2010
215
A.3 Connection Examples

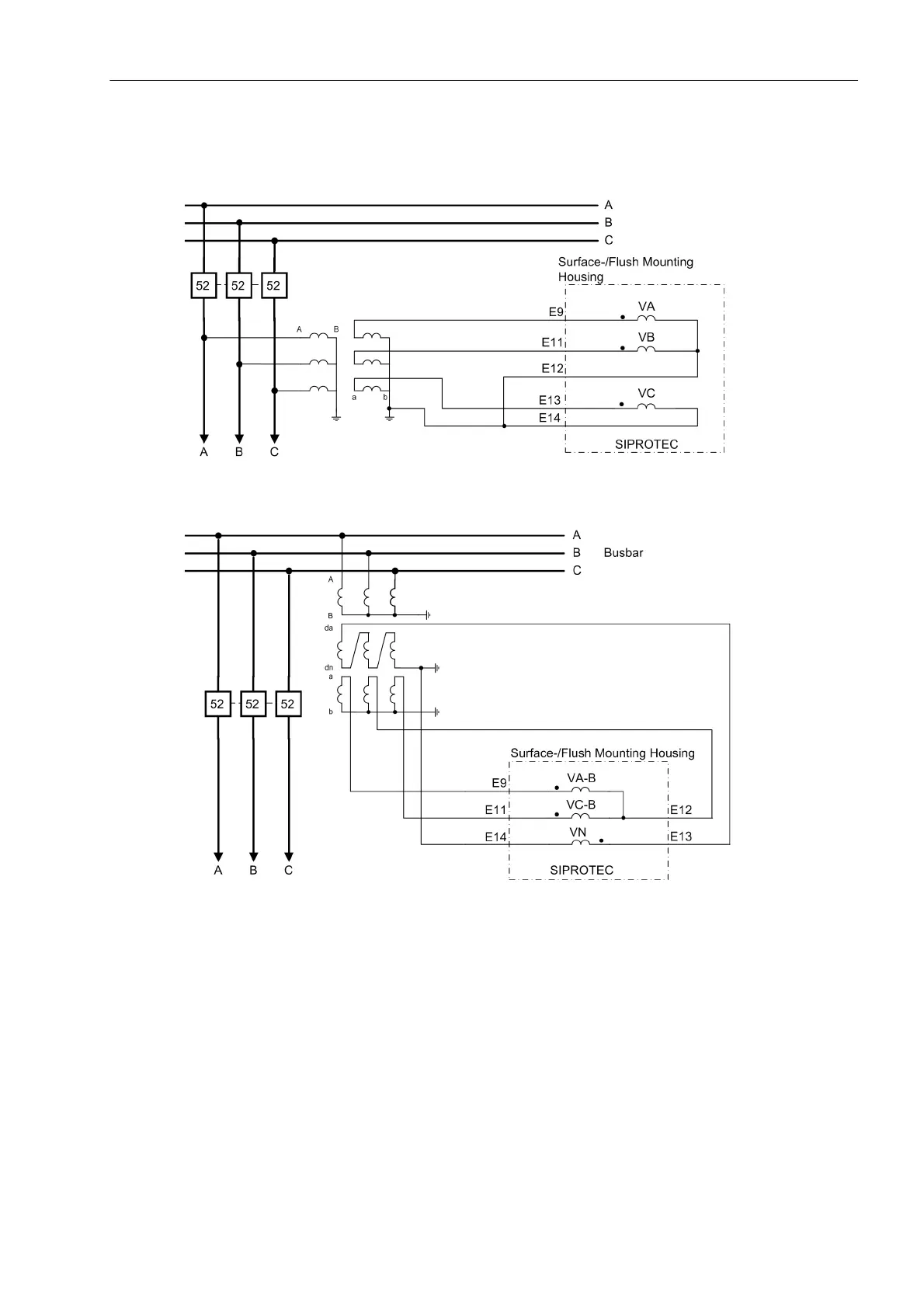

Figure A-3 Example for connection type "VAN, VBN, VCN" load-side voltage connection
Figure A-4 Voltage transformer connections to two voltage transformers (phase-to-phase voltages) and
broken delta winding (da-dn) – appropriate for all networks
