A.4.5 Default Display
The start page of the default display, which will open after device startup, can be selected via parameter
640Start image DD.
6-line Display

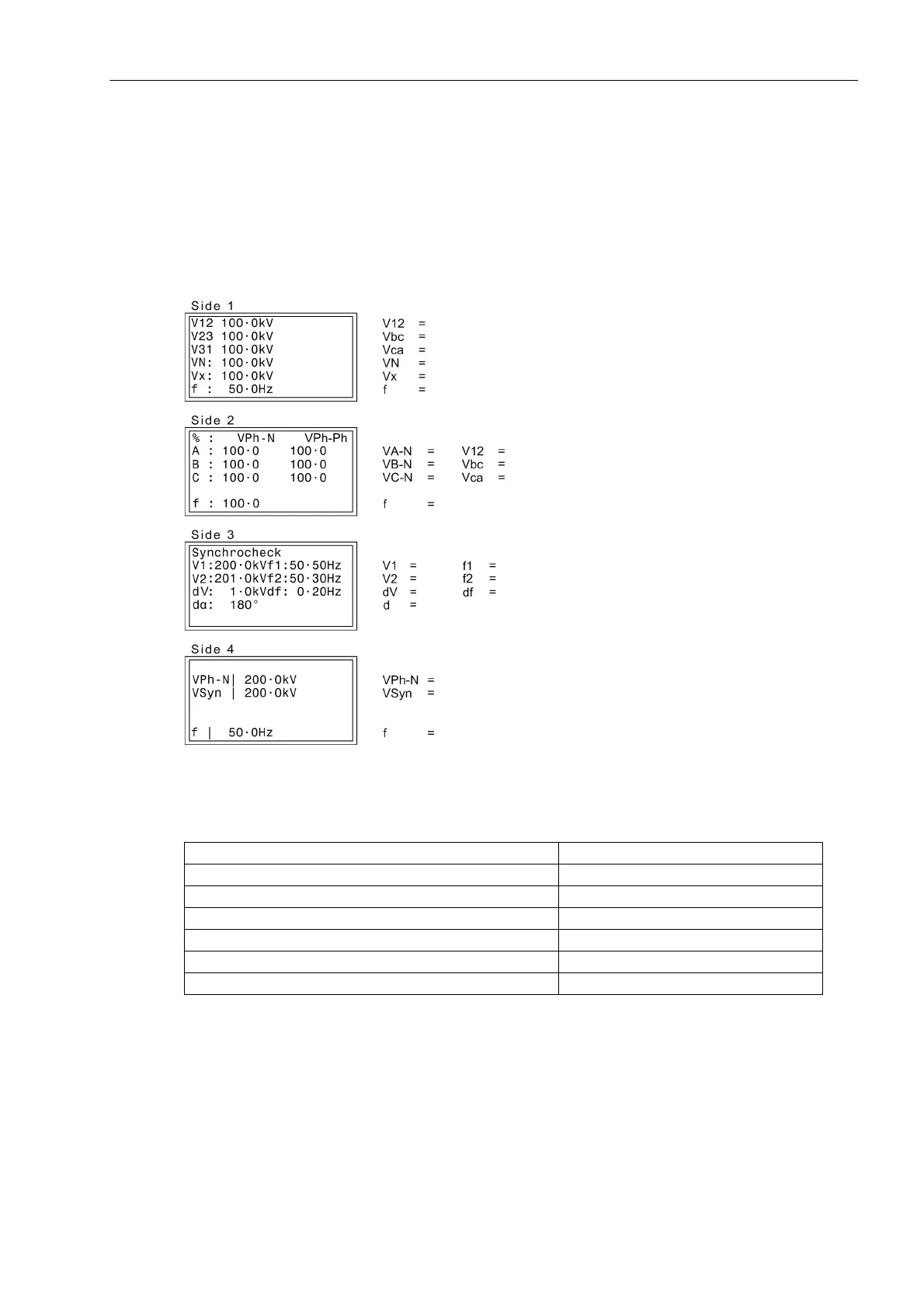

Figure A-11 Default display of 7RW80
Depending on the V- connection different default dispalys are visible
Setting Parameter 213 VT Connect. 3ph Visible Default Displays
Van, Vbn, Vcn 1 and 2
Vab, Vbc, VGnd 1 and 2
Vab, Vbc, VSyn 1, 2 and 3
Vab, Vbc 1 and 2
Vph-g, VSyn 4 and 3
Vab, Vbc, Vx 1 and 2
