Technical Data
4.12 Dimensions
SIPROTEC, 7RW80, Manual
C53000-G1140-C233-1, Release date 10.2010
205
4.12 Dimensions
4.12.1 Panel Flush and Cubicle Mounting (Housing Size 1/6)

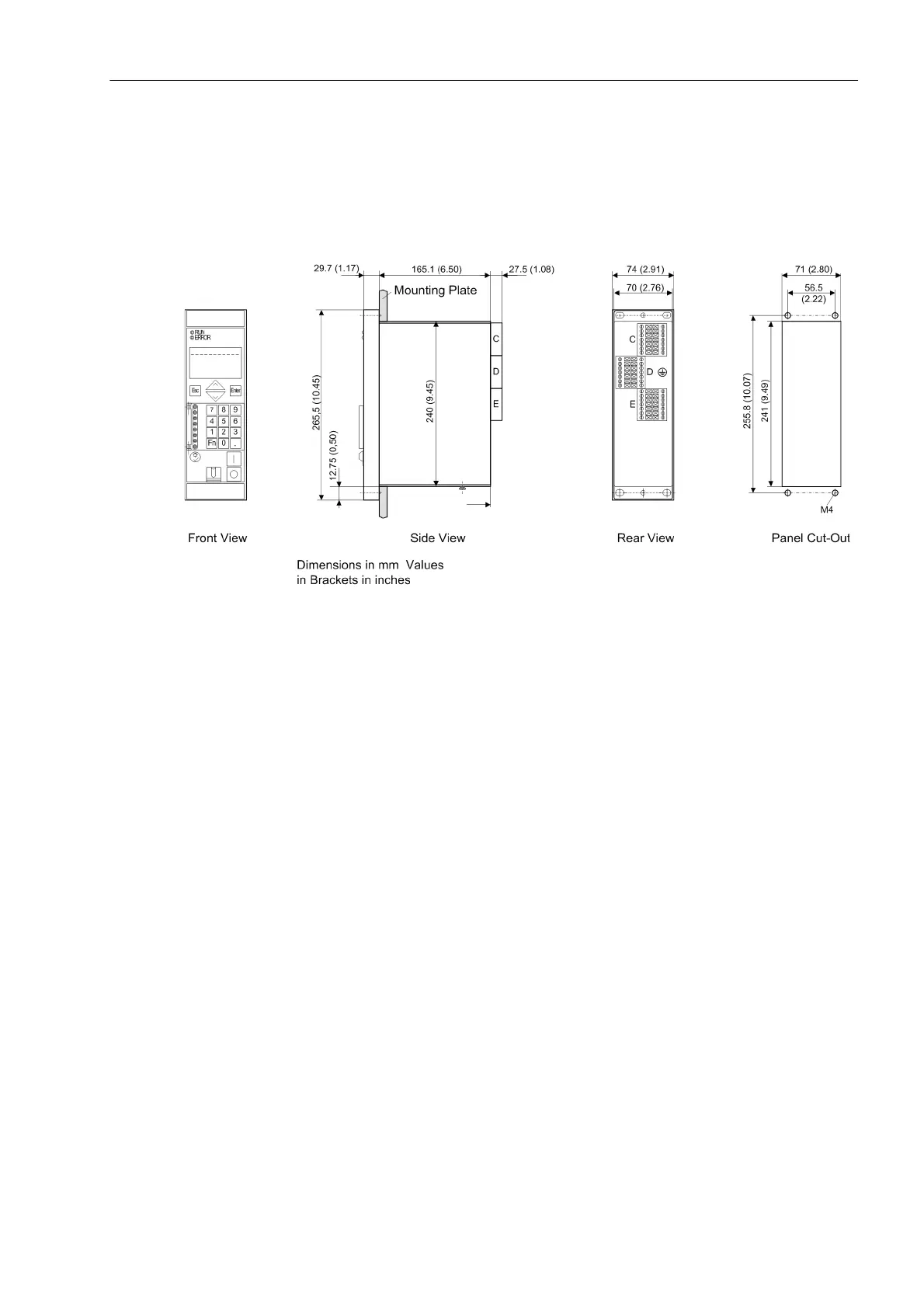

Figure 4-2 Dimensional drawing of a 7RW80 for Panel Fush and Cubicle Mounting (Housing Size
1
/
6
)
Note For cubicle mounting a mounting bracket set (containing upper and lower mounting rails) is needed
(Order No. C73165-A63-D200-1). When using the Ethernet interface it may be necessary to work over
the lower mounting rail.
Provide enough space for cables of the communications modules at the bottom of or below the device.
