Appendix
A.3 Connection Examples
SIPROTEC, 7RW80, Manual
C53000-G1140-C233-1, Release date 10.2010
218

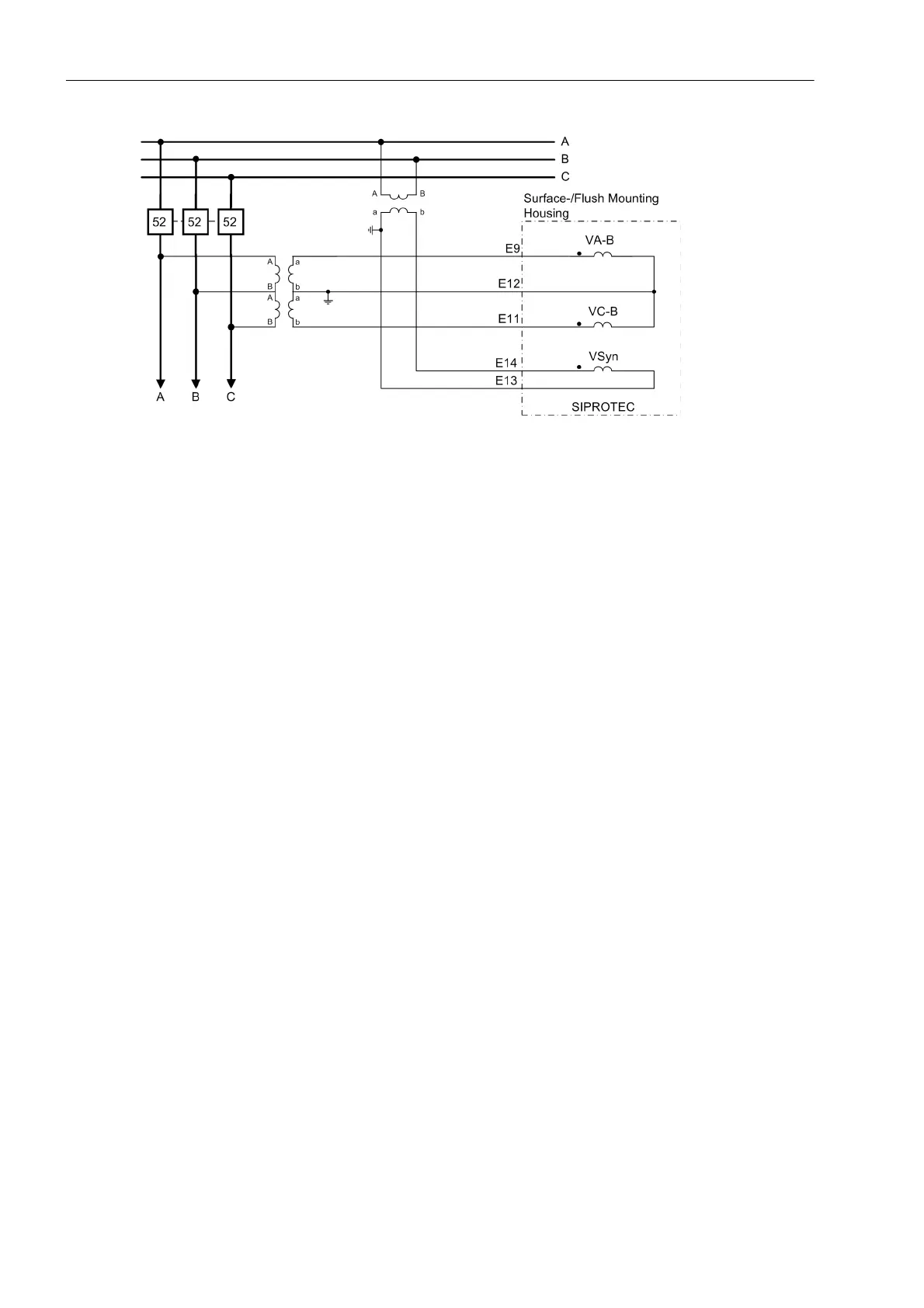

Figure A-10 Example for connection type "VAB, VBC, VSYN" with phase voltage connection as open-delta
connection
