Functions
2.4 Load Restoration
SIPROTEC, 7RW80, Manual
C53000-G1140-C233-1, Release date 10.2010
59

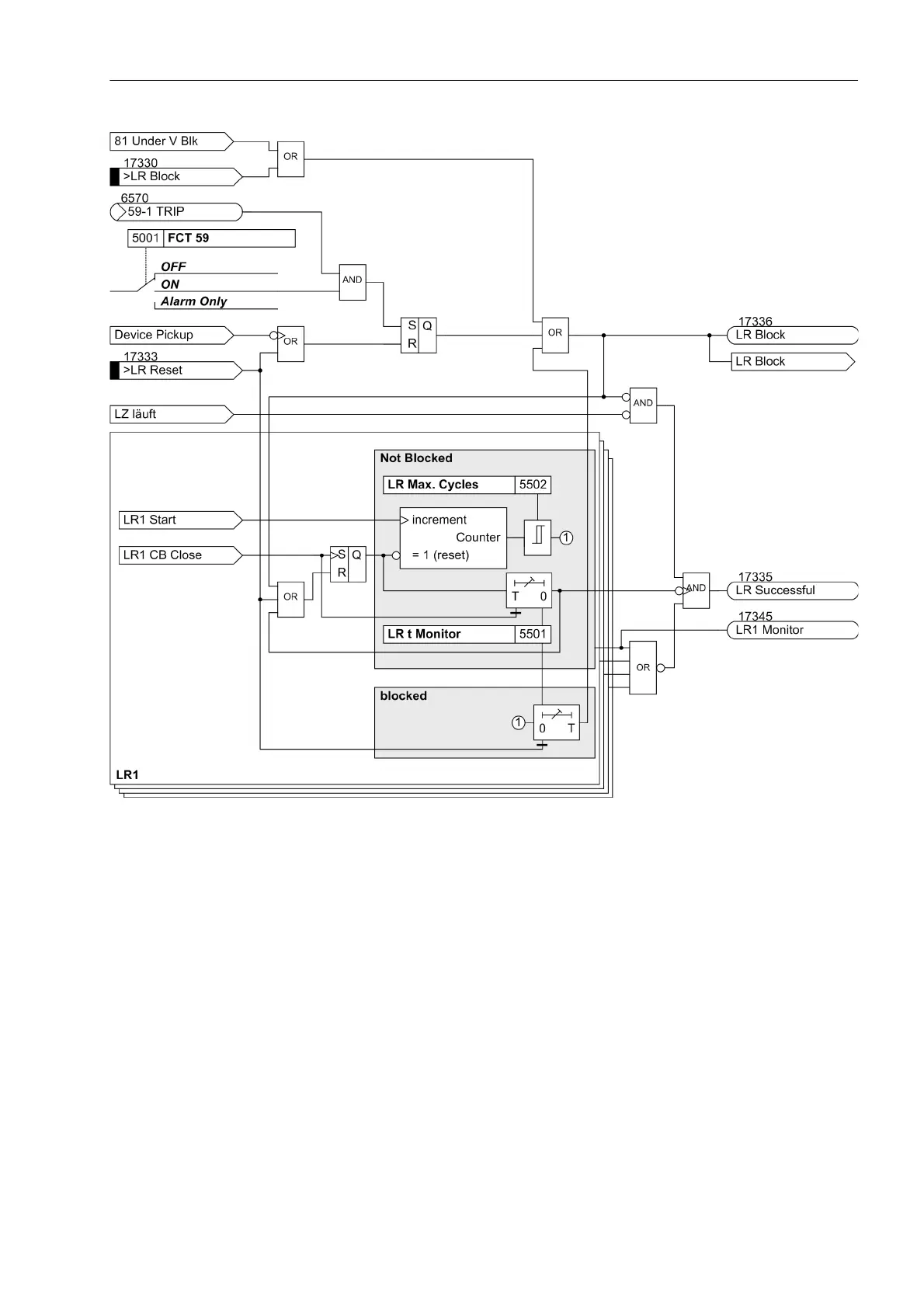

Figure 2-9 Load Restoration - Blocking and Monitoring
After the monitoring time of the restoration cycle has elapsed, the success of the load restoration will be eval-
uated.
Success basically depends on the following criteria:
• The load restoration is not blocked, e.g. by another protective function, binary input, undervoltage, monitor-
ing
• The monitoring time of restoration cycles of every started load restoration elements has elapsed
• The maximum number of configured cycles was not exceeded
• All started load restoration elements are connected
To better illustrate the mode of operation, the following examples demonstrate different scenarios of the load
restoration procedure.
