SIPROTEC 4 Devices
4-317SJ63 Manual
C53000-G1140-C120-1
Settings Double click on a protective function shown in the smaller window of Figure 4-21 to
obtain a window for entering the general settings associated with the function and the
settings of the protective elements belonging to the function.
f

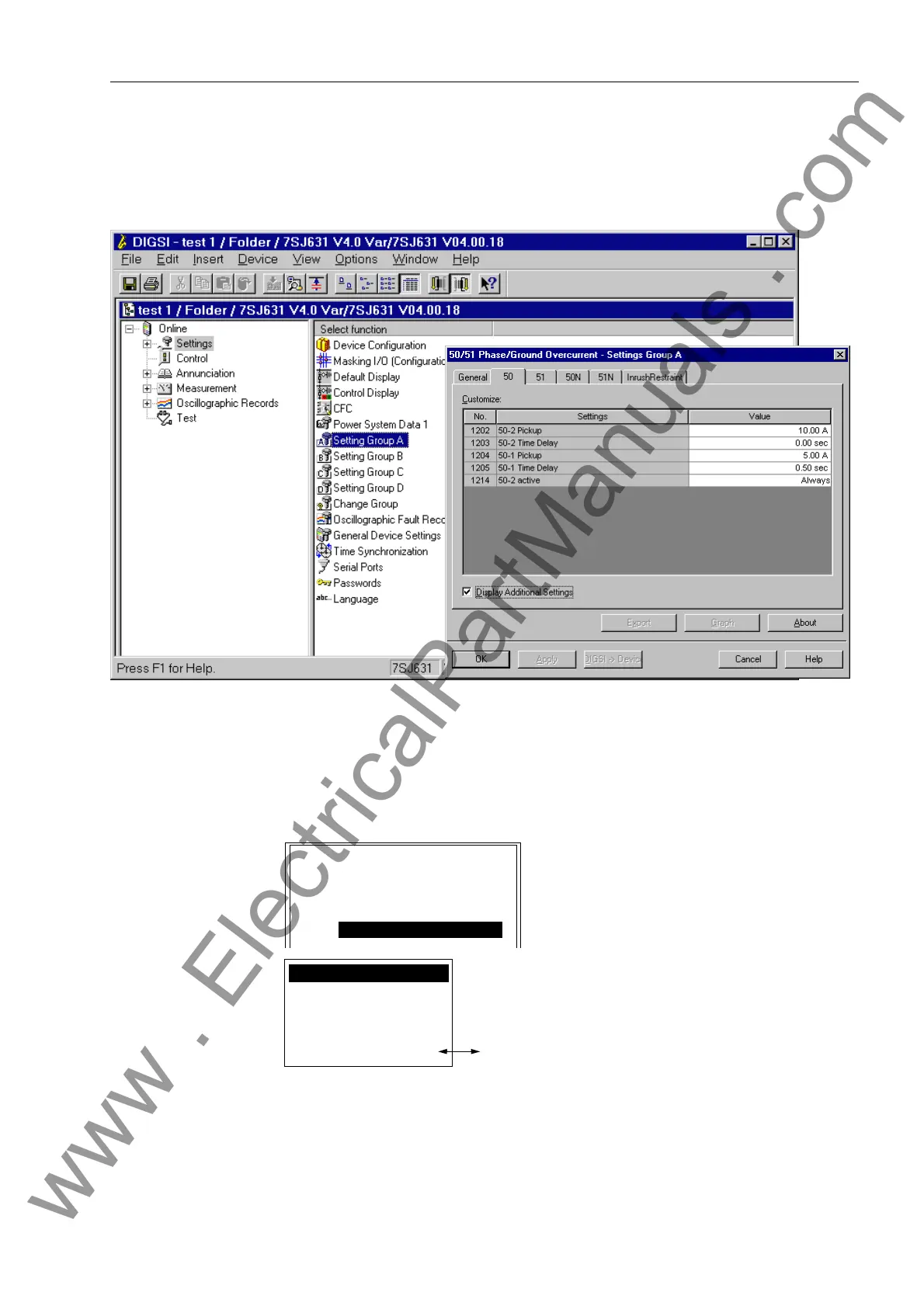

Figure 4-22 DIGSI
®
4, Entering Settings for a Protective Function, example
Changing Setting
Groups
The setting groups can be changed during operation using DIGSI
®
4, from the HMI on
the device, by triggering binary inputs, or via the system interface. The active setting
group is indicated.
Figure 4-23 SIPROTEC
®
4 Device, Changing Setting Groups on the HMI
*URXS$
*URXS%
*URXS&
*URXS'
%LQDU\,QSXW
,(&²² via protocol
&+$1*(*5283

$&7,9(*5283
*URXS$
&+$1*(WR
*URXS$
