SIPROTEC 4 Devices
4-32 7SJ63 Manual
C53000-G1140-C120-1
4.13 General Device Settings
The settings of the display to show information of network faults on the LEDs and the
LCD on the front of the SIPROTEC
®
4 device are defined in the DIGSI
®
4 window
shown below.

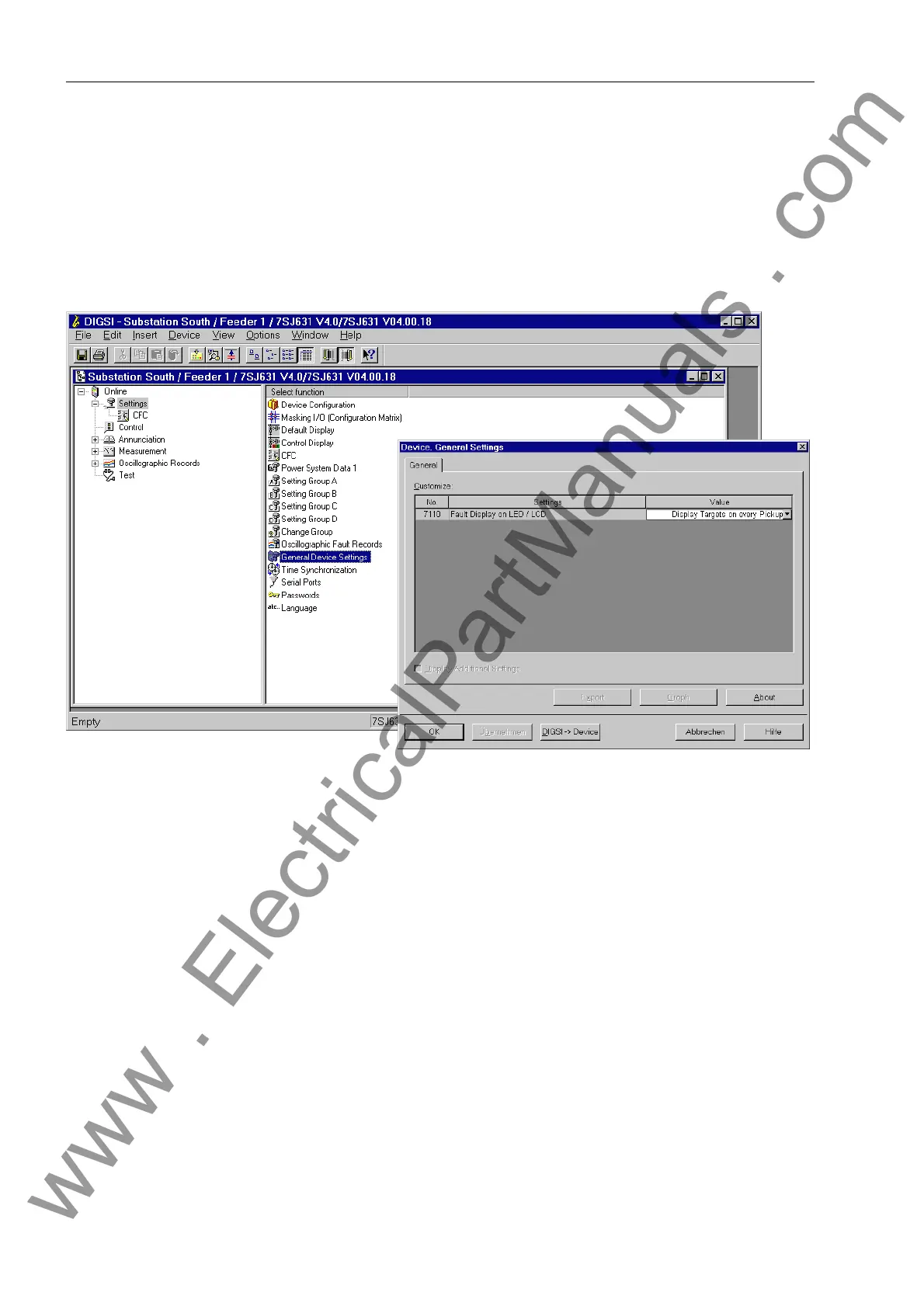

Figure 4-24 DIGSI
®
4, General Device Settings (Targets), example
The setting can also be changed at any time using the HMI on the SIPROTEC
®
4 de-
vice: 0DLQ0HQX → 6HWWLQJV → 'HYLFH.
