2.4 IO Modules
31SIPROTEC 4, Communication Module PROFINET IO, Communication Profile
C53000-L1840-C360-1, Edition 08.2012
IO Module Single-Point Indications 32
IO Module Double-Point Indications 04

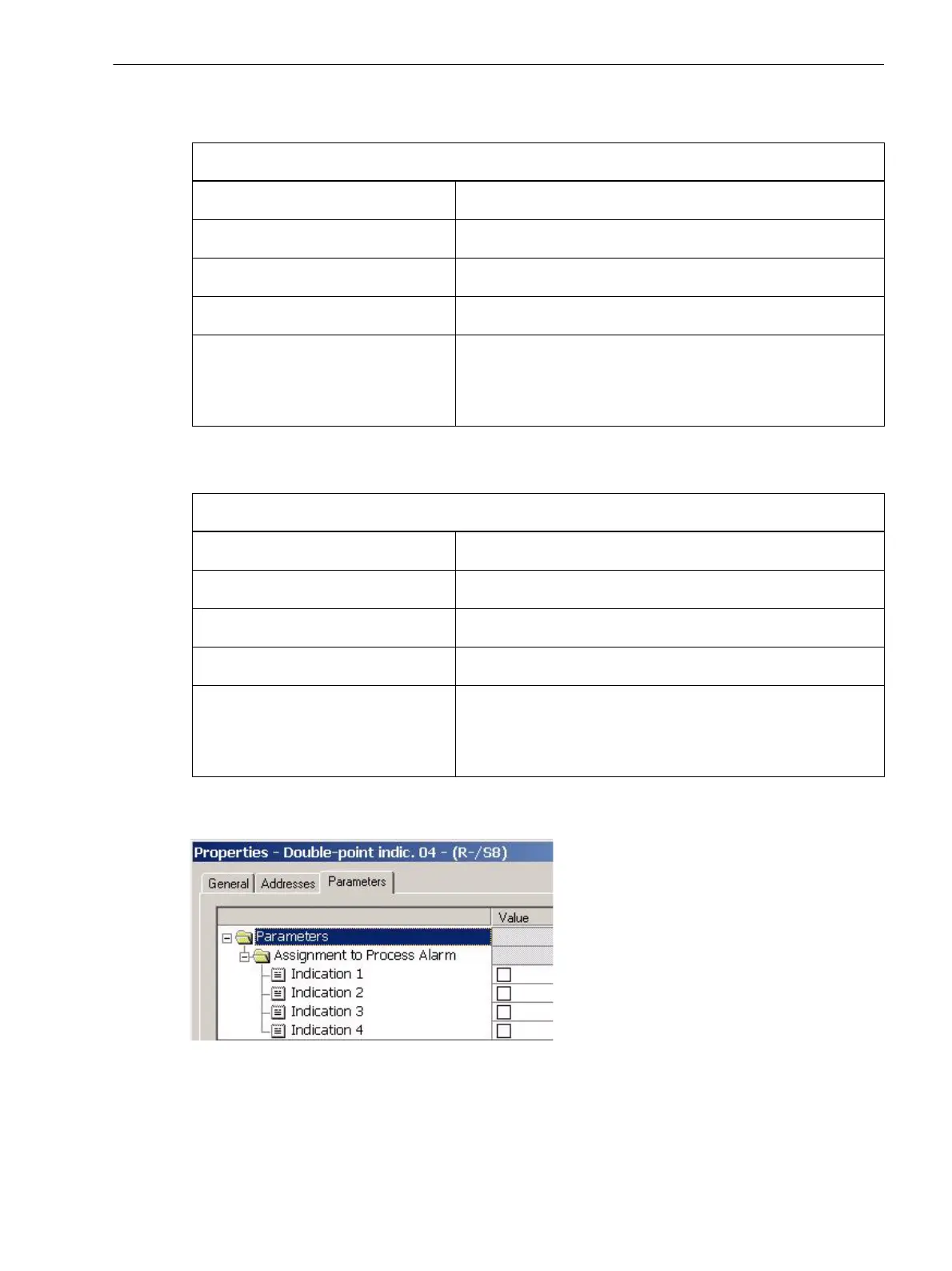

Figure 2-15 Double-Point indication 04
Single-point indications 32
Category in the hardware catalog Input data
Data type 32 single-point indications; see Chapter 2.3.1
Data size 4 bytes
Acyclic reading/writing of data None
Parameters Each single-point indication can be assigned to the process alarm
(see Chapter 2.7).
Default setting: all not assigned
Double-point indications 04
Category in the hardware catalog Input data
Data type 4 double-point indications; see Chapter 2.3.3
Data size 1 byte
Acyclic reading/writing of data None
Parameters Each single-point indication can be assigned to the process alarm
(see Chapter 2.7).
Default setting: all not assigned
