4 PROFINET IO Diagnosis
4.1 Diagnosis HTML Page of EN100
87SIPROTEC 4, Communication Module PROFINET IO, Communication Profile
C53000-L1840-C360-1, Edition 08.2012

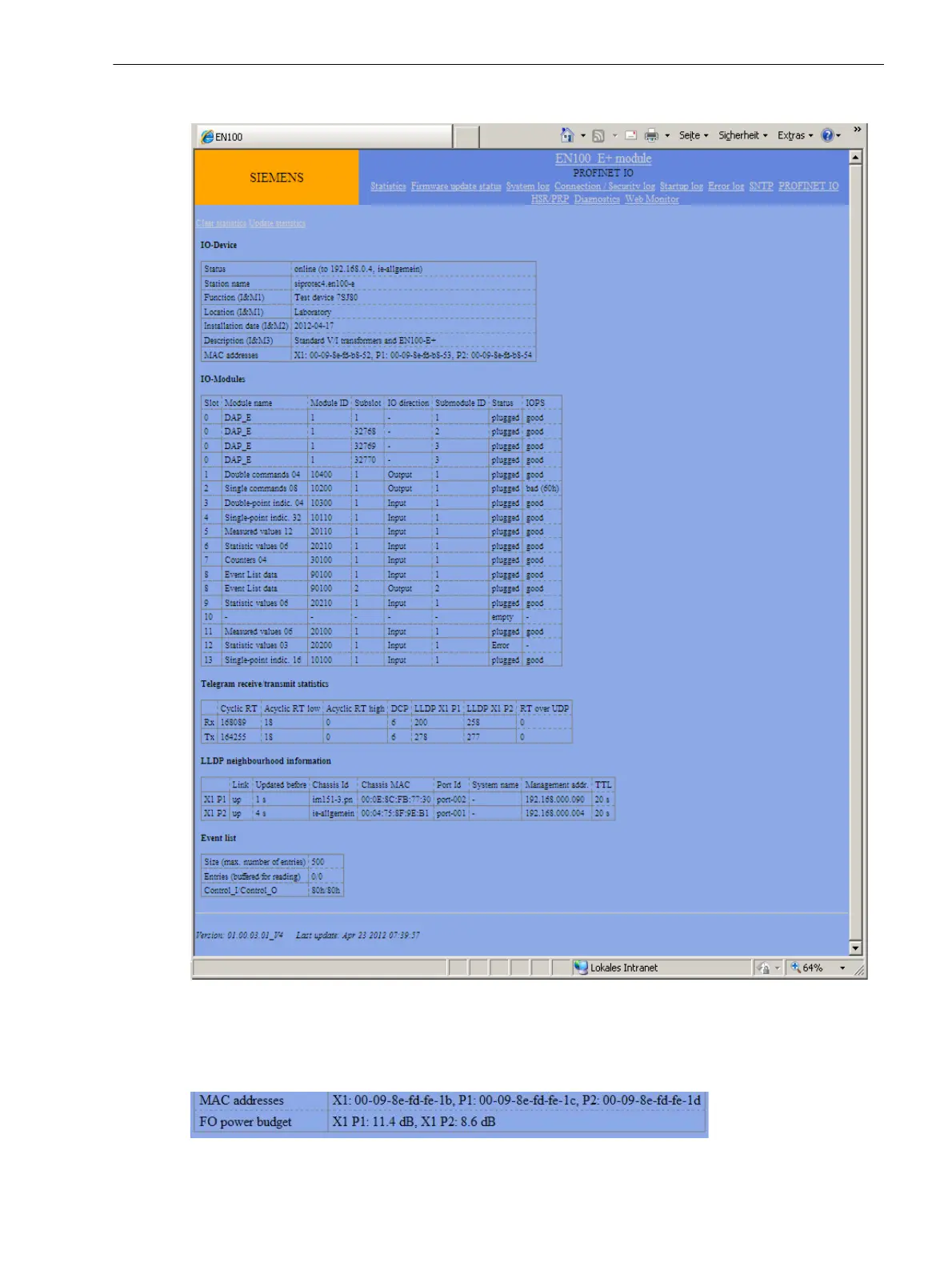

Figure 4-2 PROFINET IO Diagnosis Page
At use of PROFINET IO with fiber optical interface the column FO power budget is displayed in the information
block IO-DEVICE in addition.
Figure 4-3 Detail from the PROFINET IO Diagnosis Page at Use of the Fiber Optical Interface
