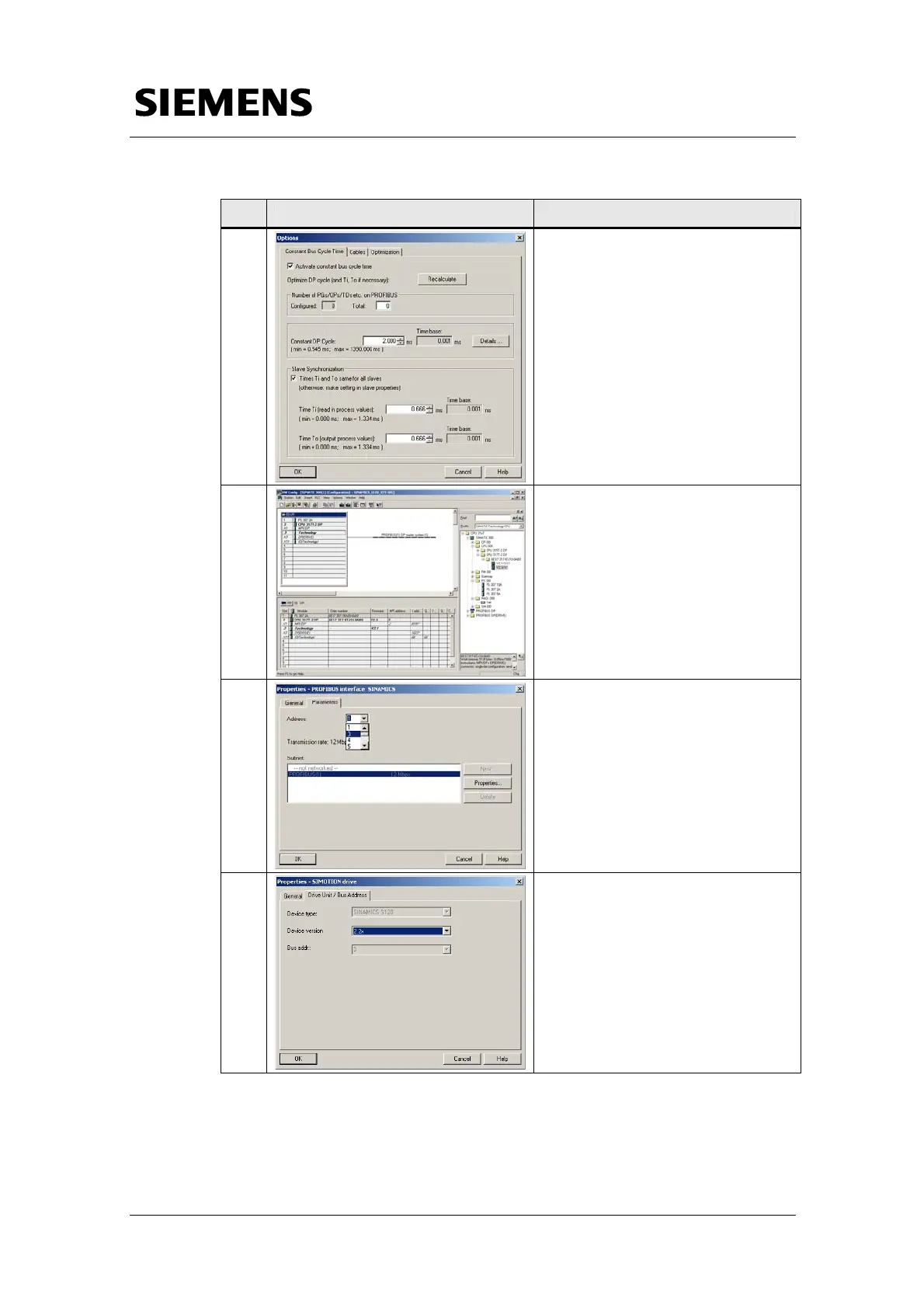

Requirements
Connection Establishment to SINAMICS S120
SINAMICS S120 at Technology CPU Entry ID: 21767896
V1.0 Edition 10/28/05 15/58
Copyright © Siemens AG 2005 All rights reserved
SINAMICS S120 und Technologie-CPU V2.0-SP1__05-10-28_13-20_e.doc
No. Instruction Note
6.
Activate the constant bus cycle
time and set a bus cycle time, e.g.
2 ms.
Activate Slave Synchronization to
specify identical time values for all
connected slaves.
7.
Now integrate a SINAMICS S120
drive from the module catalog for
PROFIBUS DP(DRIVE) and
connect this drive to DP(Drive).
8.
Set Profibus address 3 for
SINAMICS S120
Click the Properties… button to
open the settings for the Profibus
properties and check the settings.
Close the windows by clicking OK,
until you reach the window
Properties – SIMOTION drive.
9.
In the drop-down list of Device
version, set the firmware version of
SINAMICS S120 to the used
firmware version.
Select for example version 2.2x.
Close the window by clicking OK.
