Commissioning SINAMICS S120
Control of SINAMICS S120
SINAMICS S120 at Technology CPU Entry ID: 21767896
V1.0 Edition 10/28/05 47/58
Copyright © Siemens AG 2005 All rights reserved
SINAMICS S120 und Technologie-CPU V2.0-SP1__05-10-28_13-20_e.doc

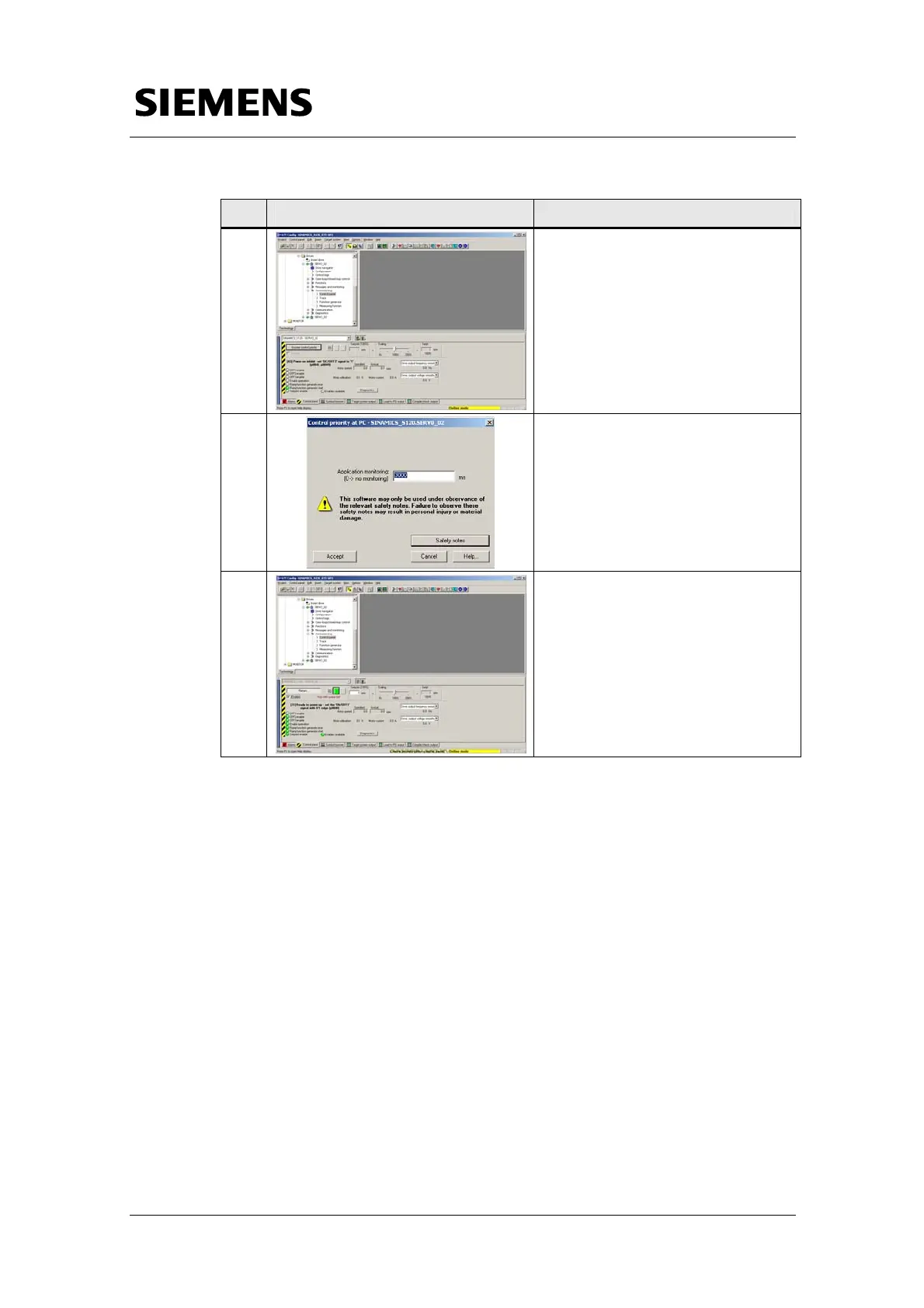

No. Instruction Note
4.
Clicking the Assume Control
priority button transfers the control
priority to S7T Config.
5.
Check the safety note and
acknowledge the note by clicking
the Accept button.
6.
Now set the enable by checking the
Enables setting.
7.1.2 Diagnostics of missing signals and enables
If not all signals are set by the control panel during setting the enables at
the drive, the missing enables can be checked via a diagnostics display in
S7T Config.
The diagnostics display is available under the respective drive SERVO_02
or SERVO_03 in the Diagnostics section, Control/Status words tab. The
missing enables can be directly read in the respective section.
