Commissioning SINAMICS S120
Commissioning SINAMICS S120
SINAMICS S120 at Technology CPU Entry ID: 21767896
V1.0 Edition 10/28/05 41/58
Copyright © Siemens AG 2005 All rights reserved
SINAMICS S120 und Technologie-CPU V2.0-SP1__05-10-28_13-20_e.doc

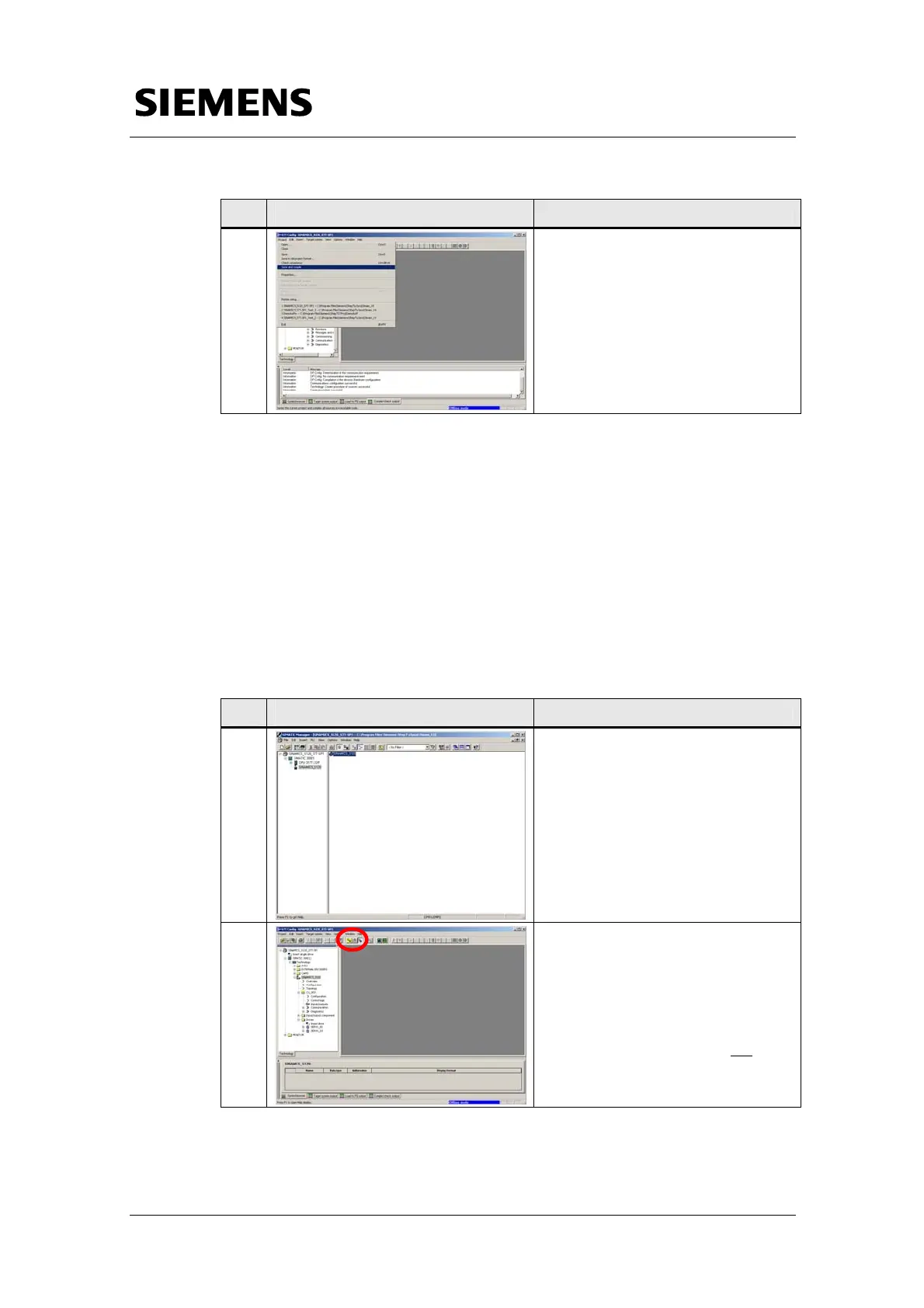

No. Instruction Note
15.
Save and compile the new
configuration by clicking the
corresponding menu item.
6.3 Implementing the necessary BICO interconnections
A part of the hardware signals at the SINAMICS S120 demonstration box
listed in Chapter
1.4 Hardware wiring of the components is already
interconnected in SINAMICS S120 via the BICO technology.
The missing interconnection of the Ready signal of the smart line module
for the drive SERVO_02 of the double motor module configured via the
automatic configuration of the DRIVE-CLiQ components now has to be
performed.
Table 6-3 Implementing the BICO interconnection at the drive SERVO_02
No. Instruction Note
1.
In the SIMATIC Manager, select
SINAMICS_S120 and double-click
this component in the right
window.
This starts S7T Config for
SINAMICS S120.
2.
Establish the online connection to
SINAMICS S120 using the Speed
button.
Attention:
At this point, activating the online
connection via the menu is not
possible!
