Proceed accordingly for the partial download of parameters and
configurations to the technology part of the technology CPU.
Ensure a subsequent data backup using the Copy current data to ROM
command.
8.3 Special setting at the SINAMICS S120 training case
Special operation of the SINAMICS S120 training case at a 230V mains
socket-outlet requires a special parameter setting at the connected drives
different from the factory settings.
The smart line module and the motor module of the SINAMICS S120
training case are specially modified for operation at the 230V mains. For
this reason, the setting of the parameter p210 of the connected drives
must differ from the factory settings and has to be set as follows:
p210 = 345 V Device supply voltage SERVO/VECTOR
This setting is to be made in the expert list of the drives of the SINAMICS
S120 training case and the parameter has to be set in the Expert List of
the drive SERVO_02 as well as of SERVO_03.
Note
The setting of the parameter p210 = 345V cannot be calculated and is
preset for correct operation of the SINAMICS S120 training case at the
230V mains. For this reason, the listed setting has to be applied as
described!

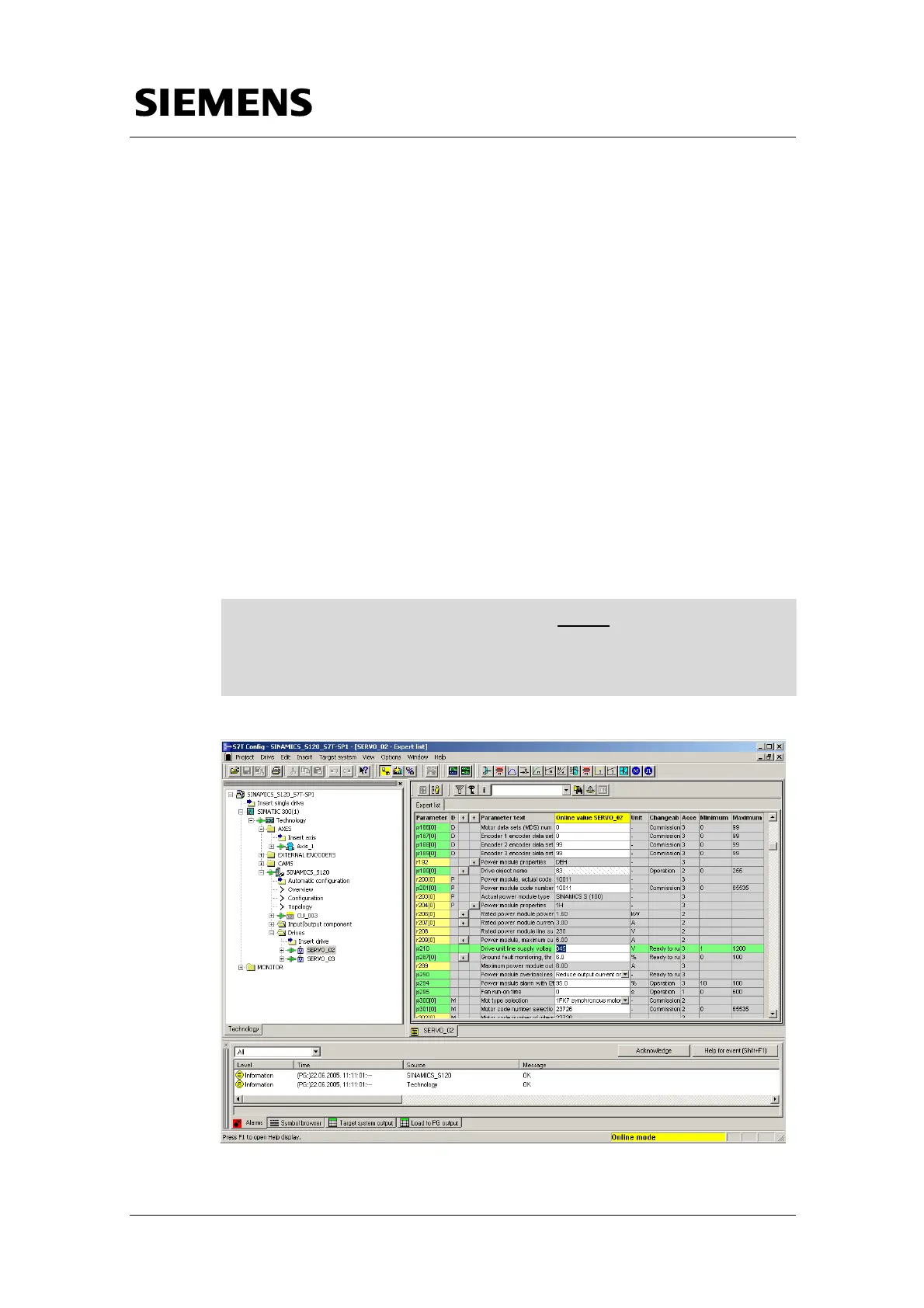

Figure 8-4 Special parameter setting at the SINAMICS S120 training case
