Requirements
Connection Establishment to SINAMICS S120
SINAMICS S120 at Technology CPU Entry ID: 21767896
V1.0 Edition 10/28/05 17/58
Copyright © Siemens AG 2005 All rights reserved
SINAMICS S120 und Technologie-CPU V2.0-SP1__05-10-28_13-20_e.doc

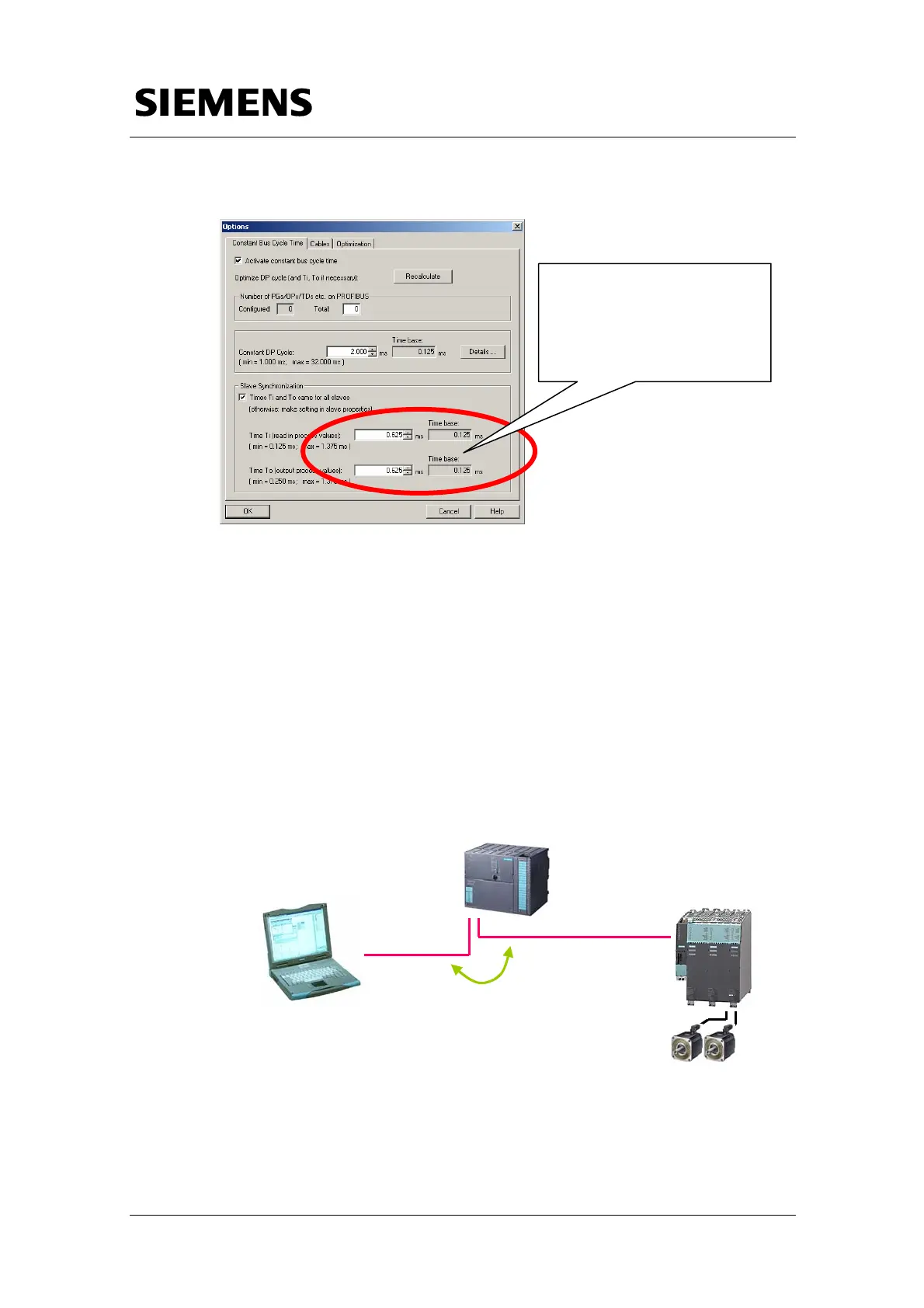

Figure 3-4 Adapting the times Ti and To in case of inconsistency
3.3.3 Activating “Capability of SIMATIC PC station routing” in NetPro
To be able to establish an online connection between the configuration
computer and the SINAMICS S120 drive system, “Capability of SIMATIC
PC station routing” has to be activated in NetPro.
When using SINAMICS S120 with the technology CPU, the configuration
computer is connected to the Profibus of the technology CPU whereas
SINAMICS S120 is connected to the DP(Drive) of the technology CPU.
Figure 3-5 Routing between –X1 and –X3 of the technology CPU
Technology CPU
SINAMICS S120
(training case)
Configuration computer
Profibus
DP(Drive)
-X3-X1
ROUTING
between -X1 and -X3
To enable online access to SINAMICS S120 from the configuration
computer, routing has to occur between Profibus and DP(Drive) through the
technology CPU.
Adaptation of the times Ti and
To as multiple of the time
base in case of
inconsistencies during saving
and compiling the HW Config
settin
s.
