Commissioning SINAMICS S120
Control of SINAMICS S120
SINAMICS S120 at Technology CPU Entry ID: 21767896
V1.0 Edition 10/28/05 52/58
Copyright © Siemens AG 2005 All rights reserved
SINAMICS S120 und Technologie-CPU V2.0-SP1__05-10-28_13-20_e.doc

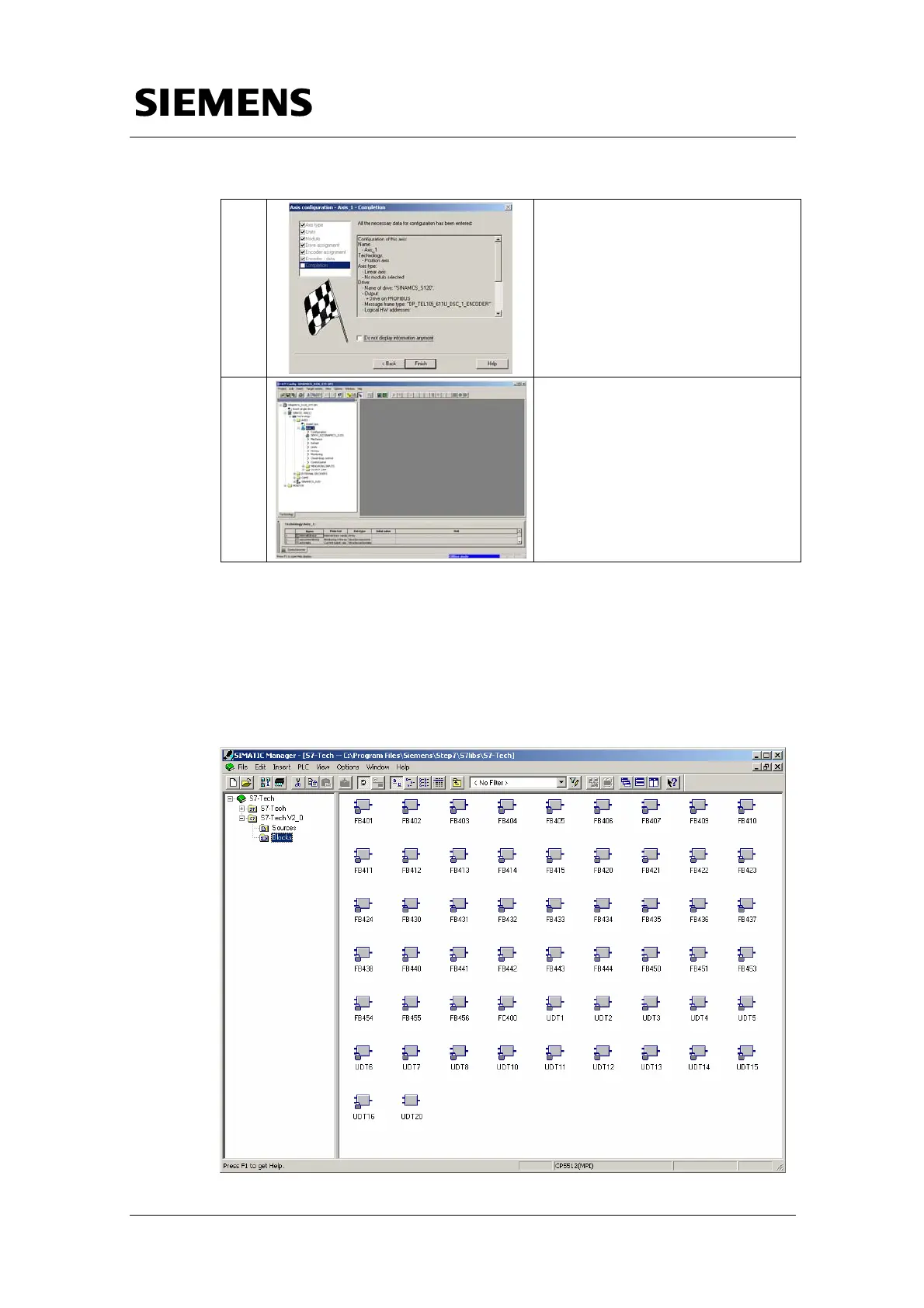

10.
Finish the creation of the axis by
clicking the Finish button.
11.
The technology object Axis is now
completely created and can be used
and addressed in the controller.
7.2.2 Control of the axis from the STEP 7 program
After creating the axis in the S7T Config configuration tool and after loading
the configuration to the technology CPU, this axis can be activated via the
respective technology function blocks from the S7 Tech block library in the
STEP 7 program.
Figure 7-2 S7 Tech V2.0 block library
