Commissioning SINAMICS S120
Control of SINAMICS S120
SINAMICS S120 at Technology CPU Entry ID: 21767896
V1.0 Edition 10/28/05 48/58
Copyright © Siemens AG 2005 All rights reserved
SINAMICS S120 und Technologie-CPU V2.0-SP1__05-10-28_13-20_e.doc

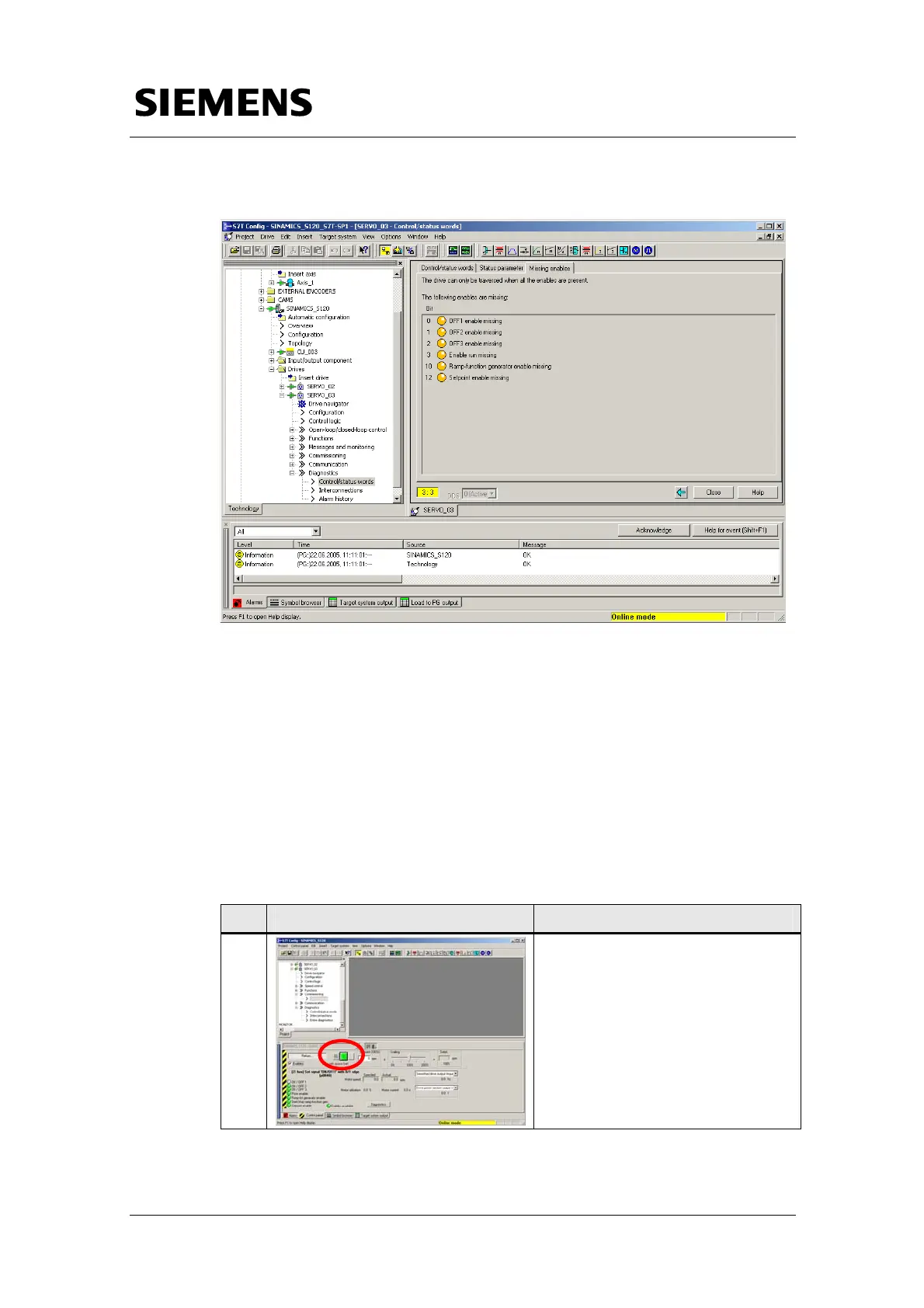

Figure 7-1 Checking the missing enables at the drive
In case of missing enables, check the hardware wiring and the BICO
interconnection whether all signals are relayed to the respective location
and whether the wiring has been performed correctly.
7.1.3 Operation of the drive via the control panel
If all enables exist, the drive can be controlled via the control panel of
SINAMICS S120 as follows:
Table 7-2 Operation of the drive via the control panel
No. Instruction Note
1.
Start the drive by clicking the green
ON button.
