6 Commissioning SINAMICS S120
You are provided with information on…
how you can recommission SINAMICS S120 and which steps are required
for recommissioning.
6.1 Automatic configuration of the DRIVE-CLiQ components
All DRIVE-CLiQ components at SINAMICS S120 are now to be
automatically configured by reading the electronic rating plates using
S7T Config.

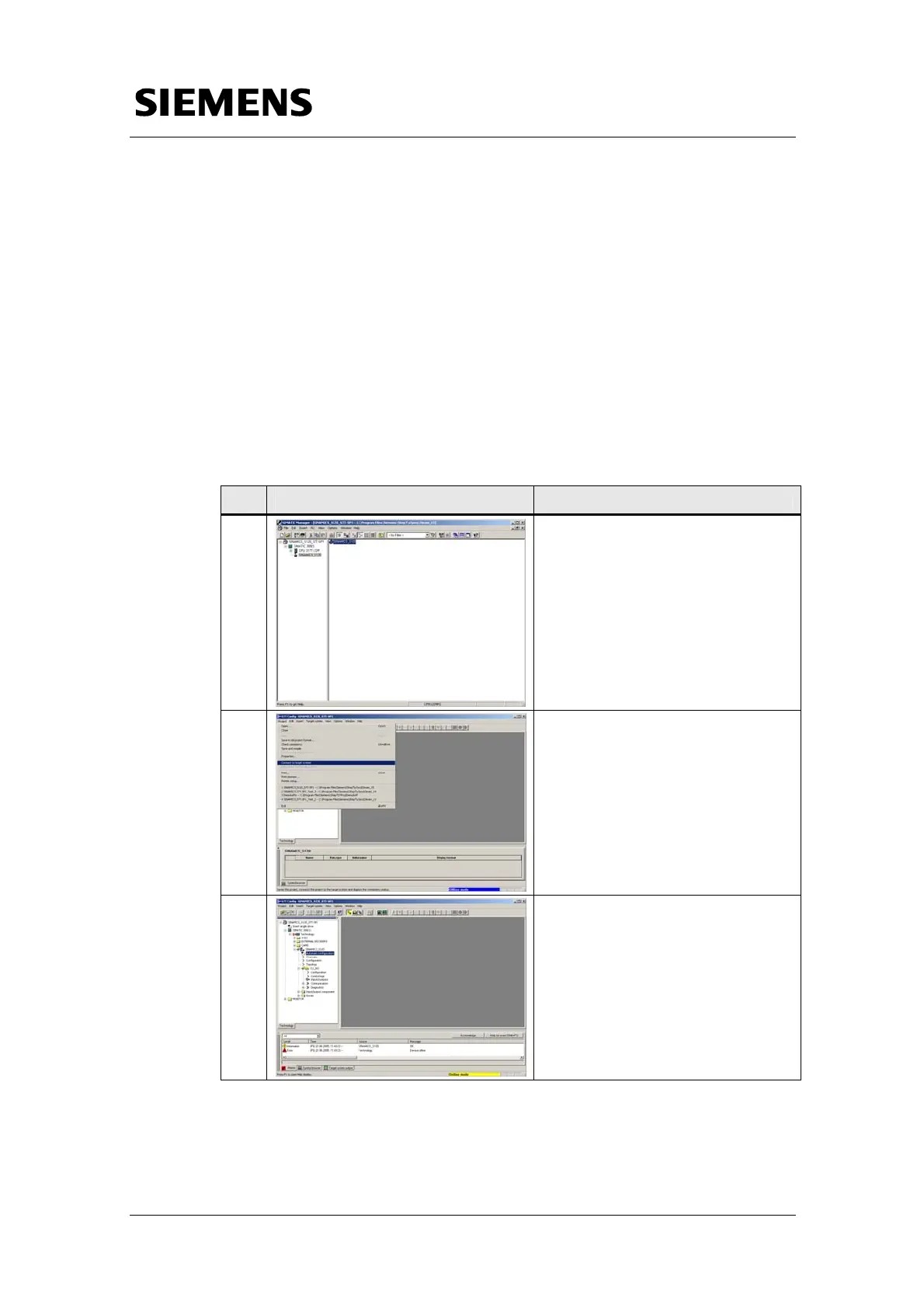

Table 6-1 Automatic configuration of the DRIVE-CLiQ components
No. Instruction Note
1.
In the SIMATIC Manager, select
SINAMICS_S120 and double-click
this component in the right
window.
This starts S7T Config for
SINAMICS S120.
2.
In the Project menu, establish the
online connection to SINAMICS
S120 by selecting the menu item
Connect to target system.
3.
In the component SINAMICS_S120,
double-click Automatic
Configuration to start the
automatic configuration of the
DRIVE-CLiQ components.
