Commissioning SINAMICS S120
Commissioning SINAMICS S120
SINAMICS S120 at Technology CPU Entry ID: 21767896
V1.0 Edition 10/28/05 44/58
Copyright © Siemens AG 2005 All rights reserved
SINAMICS S120 und Technologie-CPU V2.0-SP1__05-10-28_13-20_e.doc

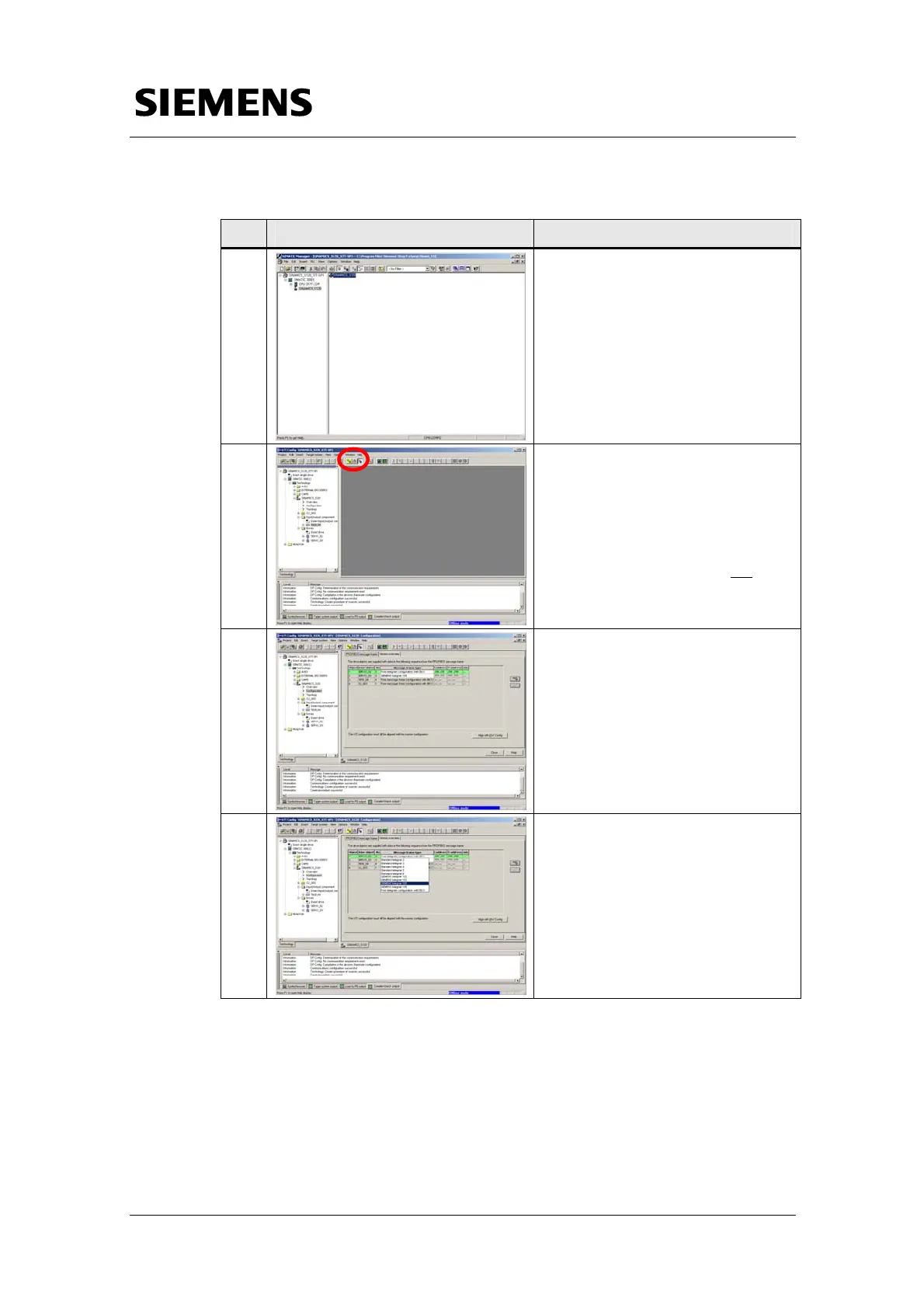

Table 6-4 Adapting the message type
No. Instruction Note
1.
In the SIMATIC Manager, select
SINAMICS_S120 and double-click
this component in the right
window.
This starts S7T Config for
SINAMICS S120.
2.
Establish the online connection to
SINAMICS S120 using the Speed
button.
Attention:
At this point, activating the online
connection via the menu is not
possible!
3.
In the component SINAMICS_S120,
select and double-click
Configuration to open it.
4.
In the list, set the message type
SIEMENS Telegram 105 for the
drive SERVO_02.
Check the setting for the drive
SERVO_03. The message type
SIEMENS Telegram 105 should be
set for both drives.
