Additional Installation Instructions
B.4 Hi Precision mount
FSS200 clamp-on sensors
Installation Manual, 08/2017, A5E36255466-AC
125
17.Install enclosure housing cover using a flat blade screwdriver and cover screws.

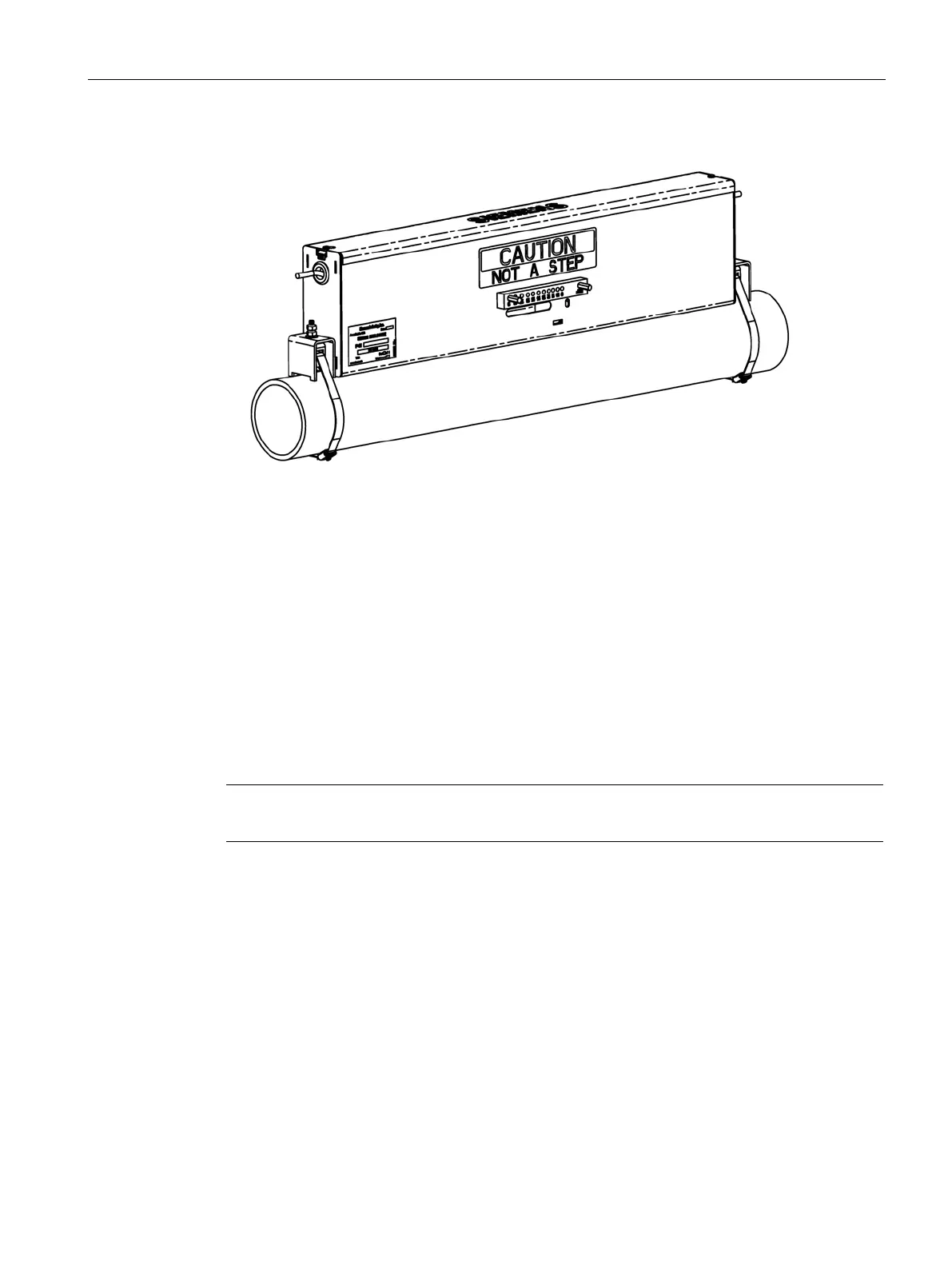

Figure B-39 Installed Hi Precision mount single enclosure
18.Proceed to Sensor wiring (Page 48) to connect sensor cables to the transmitter.
19.Complete the flowmeter make-up process and verify that the sensor installation is
complete before continuing to the final step. Adjustment of the index pins may be
required.
20.The installation of the sensors is now complete.
21.Return to transmitter and finalize programming.
Sensors - Dual enclosure
Installation procedure
Note
In the following procedure use the coupling compound that is supplied with your sensors.
