Additional Installation Instructions
B.3 Magnetic mounting
FSS200 clamp-on sensors
104 Installation Manual, 08/2017, A5E36255466-AC
8. Prepare the surface of the pipe. De-grease the surface, if necessary, and remove any
grit, corrosion, rust, loose paint, etc. Use abrasive material provided to provide a clean
contact surface for the sensors.
9. Mounting mode applications - see figures below.
Note
Do not mount frames over frost.
Do not mount frames on the seam of pipe.
Single path, Reflect mode
Single and Dual path Direct X mode

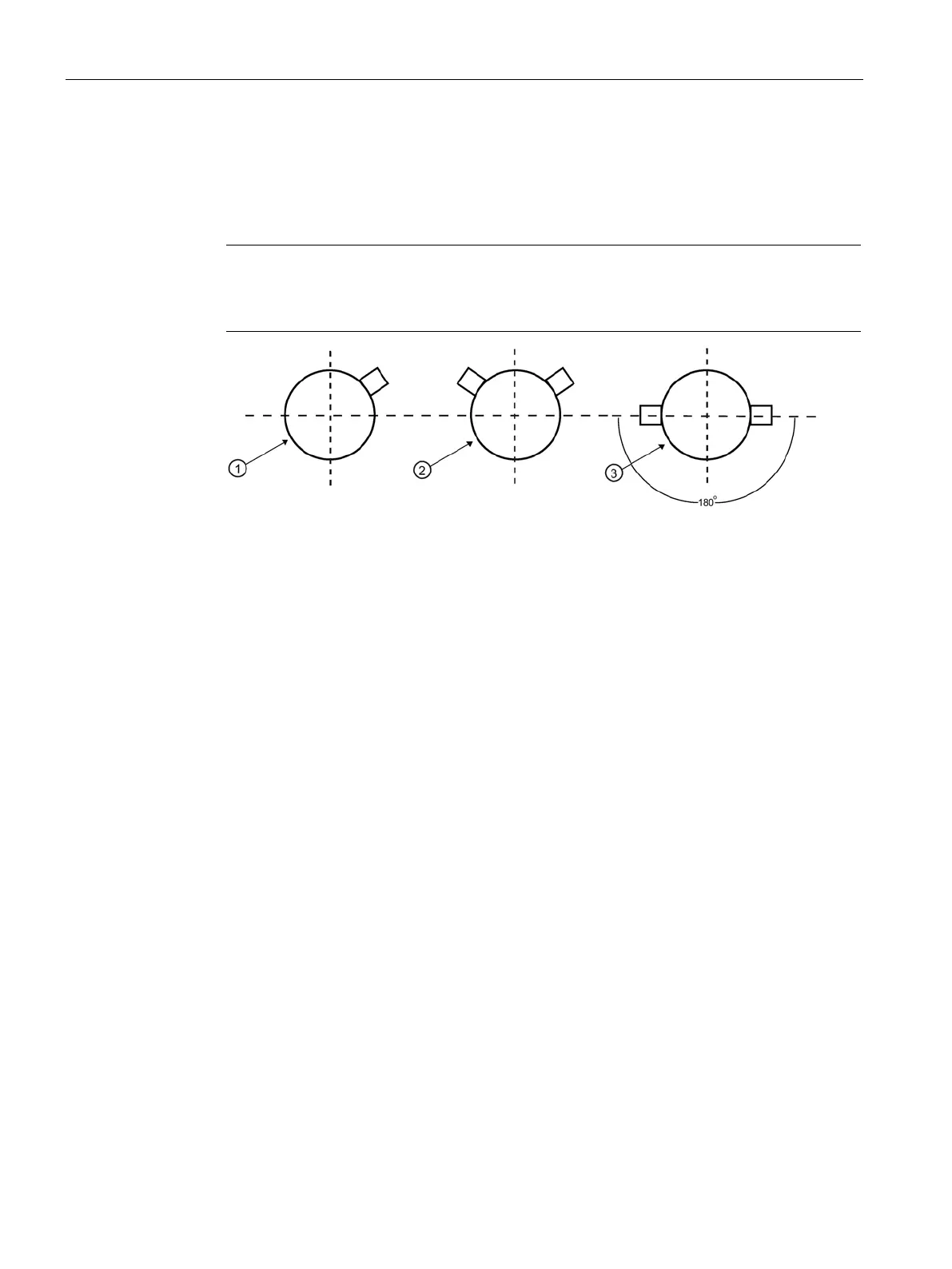

Figure B-12 Horizontal sensor mounting
Magnetic mounting frame procedures
Reflect mount
The Magnetic mounting frames establish the axial alignment of the sensors and allow the
removal and replacement of either sensor while preserving their exact mounting location.
1.
Use the Wizard setup procedure to program the transmitter for the sensors that were
selected.
2. After receiving the spacing number index from the transmitter, make a note of the number
displayed.
