Connecting
5.3 Sensor nameplate
FSS200 clamp-on sensors
Installation Manual, 08/2017, A5E36255466-AC
47
Clamp-on sensors have one nameplate that shows the following information:
● product identification
● product specifications
● certificates and approvals
The transmitter is identified as "Ultrasonic transmitter SITRANS FST030 or FST020" and the
sensors as "Ultrasonic sensor SITRANS FSS200".
Note
Check to make sure that the sensors are a matched set with the same serial numbers and
marked with an "A" and "B" (e.g., 19256A and 19256B).

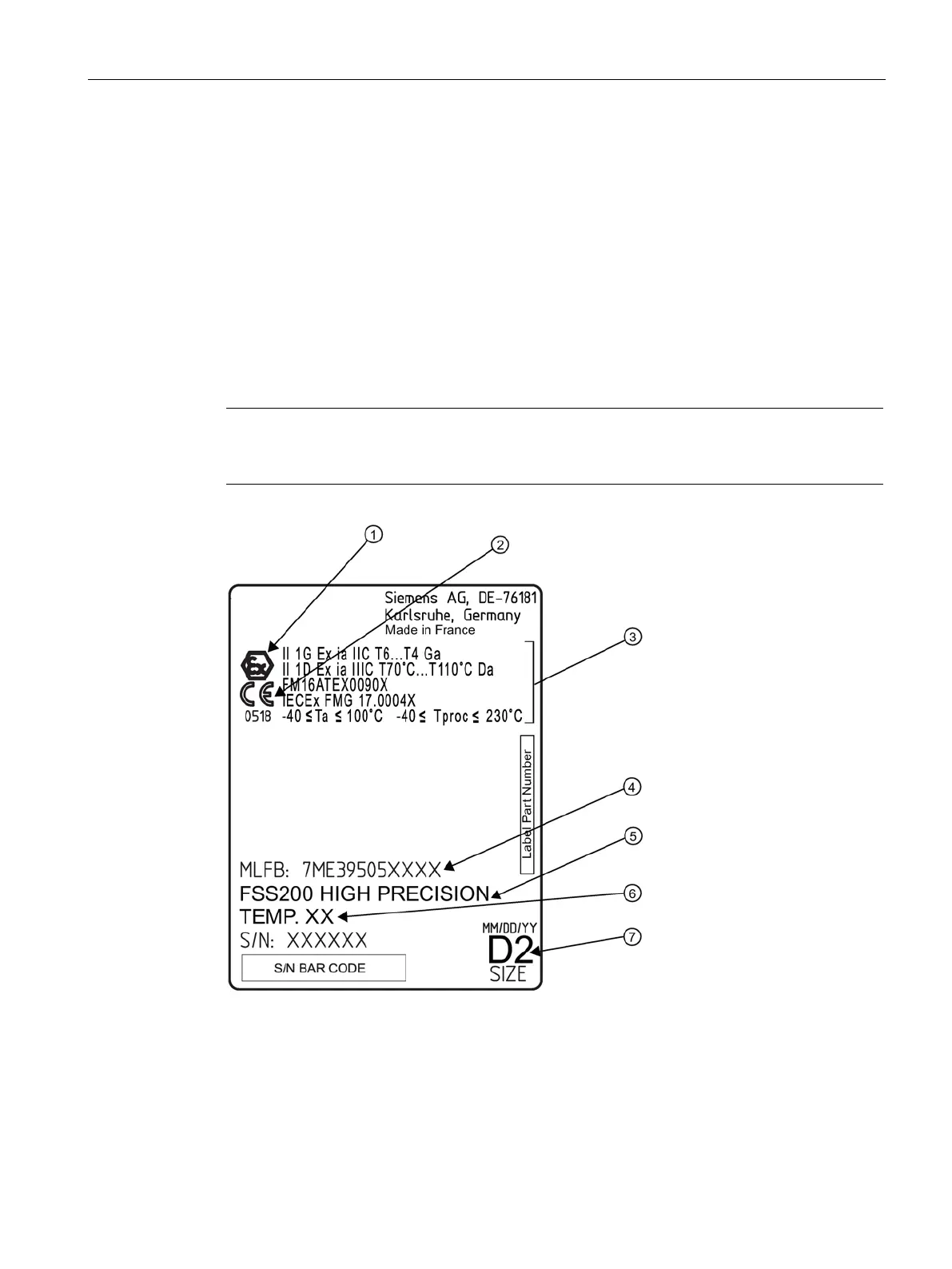

Figure 5-1 Sensor identification nameplate example
