8.3 Dimensions and weights
8.3.1 Flange versions

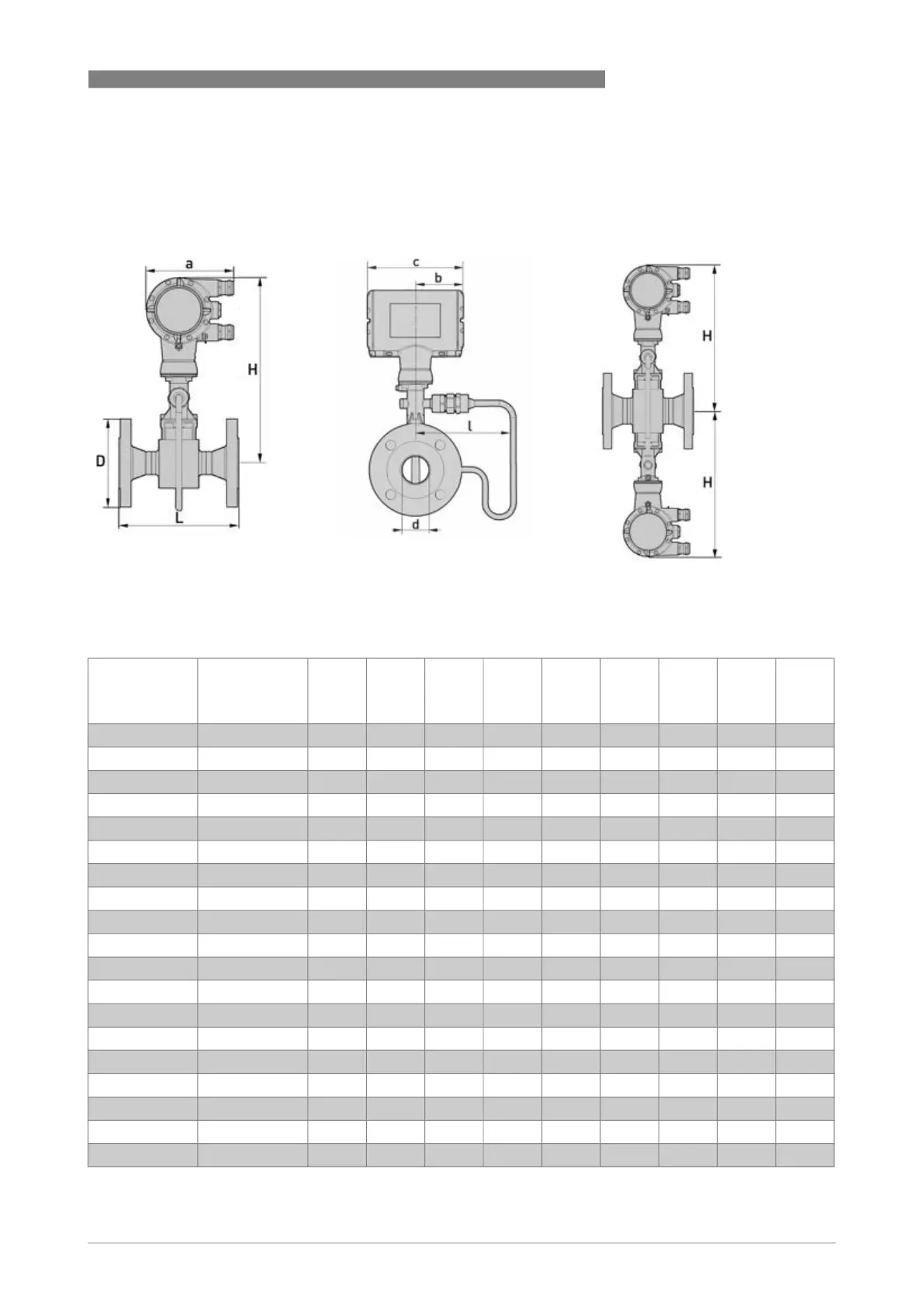

Flange version EN 1092-1
a = 148.5 mm / 5.85" b = 85.8 mm / 3.38"
c = 171.5 mm / 6.76"
Option:
Version with two signal converter
Nominal size
DN
Pressure
rating
PN
d D L H H
F1R
①
H
F2R
②
l l
F1R
①
l
F2R
②
15 40 17.3 95 200 358.8 - - 169.3 - -
15 100 17.3 105 200 358.8 - - 169.3 - -
25 40 28.5 115 200 358.3 358.8 - 169.3 169.3 -
25 100 28.5 140 200 358.3 358.8 - 169.3 169.3 -
40 40 43.0 150 200 362.3 358.3 358.8 169.5 169.3 169.3
40 100 42.5 170 200 362.3 358.3 358.8 169.5 169.3 169.3
50 16 54.5 165 200 368.3 362.3 358.3 169.5 169.5 169.3
50 40 54.5 165 200 368.3 362.3 358.3 169.5 169.5 169.3
50 63 54.5 180 200 368.3 362.3 358.3 169.5 169.5 169.3
50 100 53.9 195 200 368.3 362.3 358.3 169.5 169.5 169.5
80 16 82.5 200 200 380.3 368.3 362.3 169.3 169.5 169.5
80 40 82.5 200 200 380.3 368.3 362.3 169.3 169.5 169.5
80 63 81.7 215 200 380.3 368.3 362.3 169.3 169.5 169.5
80 100 80.9 230 200 380.3 368.3 362.3 169.3 169.5 169.5
100 16 107 220 250 396.8 380.3 368.3 171.5 169.3 169.5
100 40 107 235 250 396.8 380.3 368.3 171.5 169.3 169.5
100 63 106.3 250 250 396.8 380.3 368.3 171.5 169.3 169.5
100 100 104.3 265 250 396.8 380.3 368.3 171.5 169.3 169.5
150 16 159.3 285 300 416.3 396.8 380.3 191.5 171.5 169.3

Siemens SITRANS FX330 Specifications

General

Type	Vortex flowmeter
Measuring principle	Vortex shedding
Housing Material	Aluminum or Stainless Steel
Accuracy	±1% of measured value
Output	4-20 mA, pulse
Power supply	24 V DC
Nominal diameter	DN 15 to DN 300
Communication	HART
Material (wetted parts)	Stainless steel
Ingress protection	IP68
Temperature range	-40°C to +400°C (-40°F to +752°F)
