7ML19985AN02 SITRANS LU10 – INSTRUCTION MANUAL Page 9
mmmmm
Installation
Optional Cards
Communications Module
The SITRANS LU10 is software / hardware ready to accept an optional Siemens
Milltronics SmartLinx communications module that provides an interface to one of
several popular industrial communications systems.
Your SITRANS LU10 may be shipped to you without a SmartLinx module, for installation at
later date.
If you are ready to install your SmartLinx module, or want to change it, please follow the
procedure as outlined.
TIB-9 Card
The standard SITRANS LU10 supports one Siemens Milltronics TS-3 temperature sensor.
When equipped with a TIB-9 card, the SITRANS LU10 supports up to ten TS-3s.
Your SITRANS LU10 may be shipped to you without a TIB-9 card, for installation at a later
date.
If you are ready to install your TIB-9 card, please follow the procedure as outlined.
Installation Procedure
With power off and the SITRANS LU10 lid opened:
1. Remove the four LCD card screws and the card itself.
2. If there is no TIB-9 card being installed, proceed to step 6, otherwise proceed
with step 3.
3. Remove the five board A screws, and lift off the board (though still attached by
ribbon connectors).
4. Mount the TIB-9 card by mating the connectors and secure the card in place
using the three screws provided.
5. Replace board A and secure in place using the screws removed in step 3.
6. If installing an optional SmartLinx module, mount the card by mating the
connectors and secure the card in place using the two screws provided.
Refer to the SmartLinx module documentation for any required hardware settings
Refer to the SmartLinx module documentation for any required hardware settings Refer to the SmartLinx module documentation for any required hardware settings
Refer to the SmartLinx module documentation for any required hardware settings
prior to replacing the LCD card or closing the SITRANS LU10 lid.
prior to replacing the LCD card or closing the SITRANS LU10 lid. prior to replacing the LCD card or closing the SITRANS LU10 lid.
prior to replacing the LCD card or closing the SITRANS LU10 lid.
7. Replace the LCD card and secure in place using the screws removed in step 1.

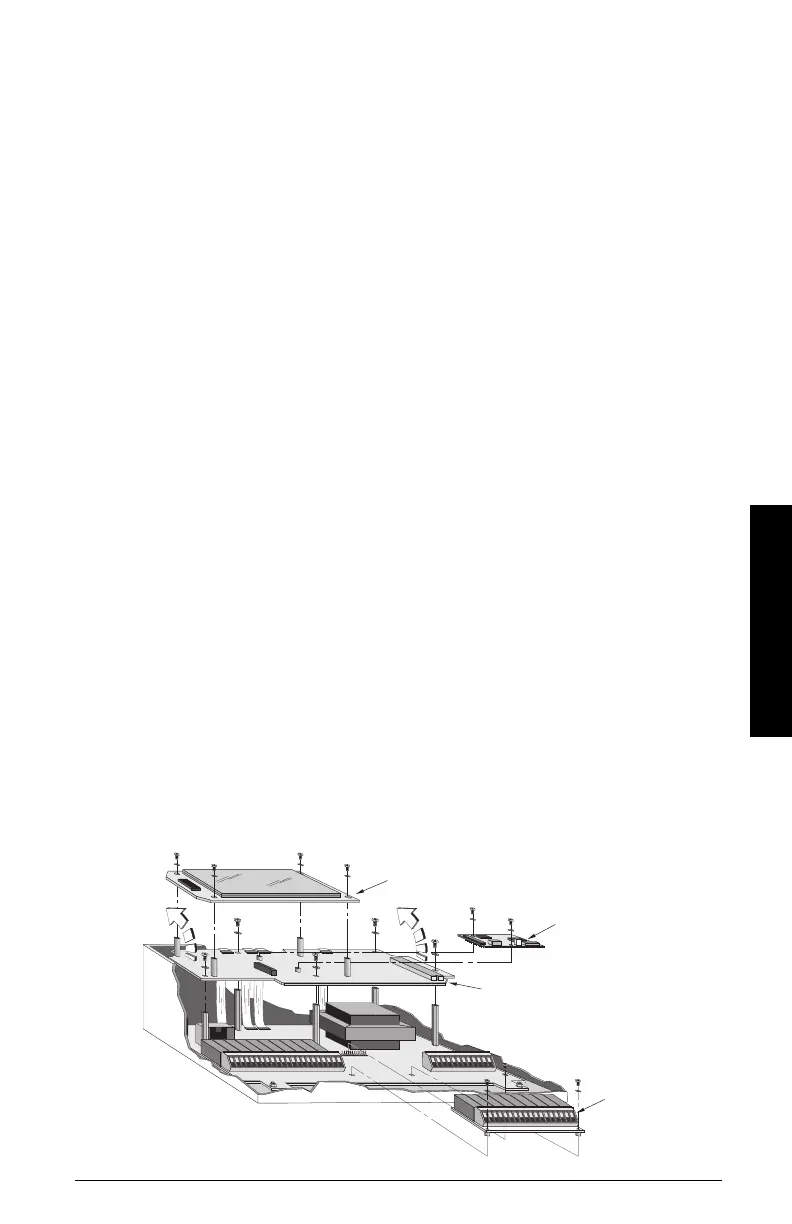

LCD card
communications module
board A
TIB-9 card
