Siemens Sivacon S8 Planning Information

26
SIVACON S8 Planning Principles – Circuit-breaker design

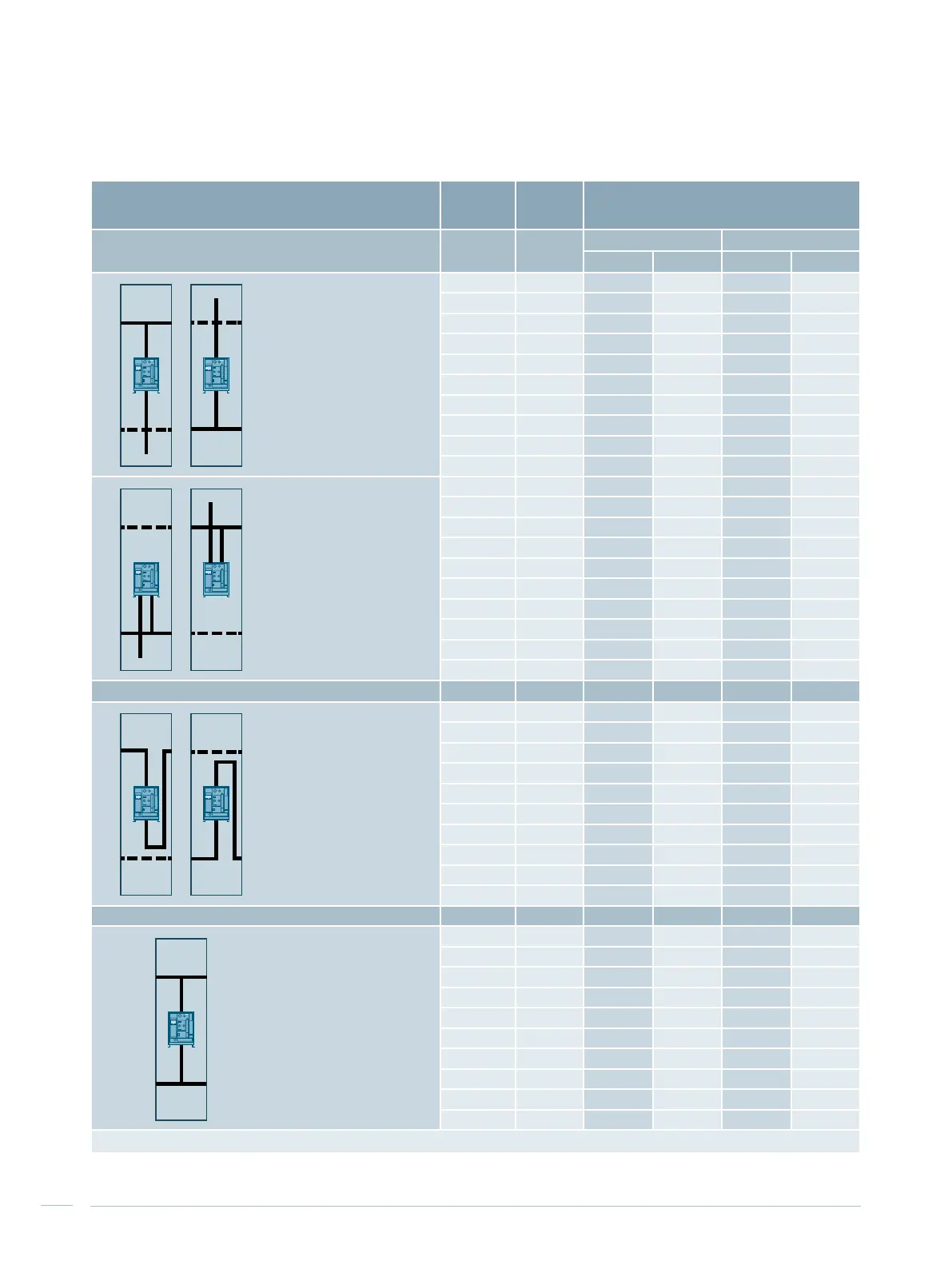

Tab. 3/4: Cubicle dimensions for rear busbar position with two busbar systems in the cubicle
Cubicle type
ACB type
Nominal
device
current
Cubicle width in mm
Incoming / outgoing unit
Cable connection Busbar connection
3-pole 4-pole 3-pole 4-pole
2 busbar systems in the
cubicle:
rear top busbar position and
cable / busbar entry from the
bottom
or
rear bottom busbar position
and
cable / busbar entry from the
top
3WL1106 630 A 400/600 600 - -
3WL1108 800 A 400/600 600 - -
3WL1110 1,000 A 400/600 600 - -
3WL1112 1,250 A 400/600 600 - -
3WL1116 1,600 A 400/600 600 400/600 600
3WL1120 2,000 A 400/600 600 400/600 600
3WL1220 2,000 A 600/800 800 600/800 800
3WL1225 2,500 A 600/800 800 600/800 800
3WL1232 3,200 A 600/800 800 600/800 800
3WL1340 4,000 A 1,000 1,000
800
1)
/1,000 1,000
2 busbar systems in the
cubicle:
rear bottom busbar position
and
cable / busbar entry from the
bottom
or
rear top busbar position and
cable / busbar entry from the
top
3WL1106 630 A 400/600 600 - -
3WL1108 800 A 400/600 600 - -
3WL1110 1,000 A 400/600 600 - -
3WL1112 1,250 A 400/600 600 - -
3WL1116 1,600 A 400/600 600 400/600 600
3WL1120 2,000 A 400/600 600 400/600 600
3WL1220 2,000 A 600/800 800 600/800 800
3WL1225 2,500 A 600/800 800 600/800 800
3WL1232 3,200 A 600/800 800 600/800 800
3WL1340 4,000 A - -
800
1)
/1,000 1,000
Longitudinal coupler 3-pole 4-pole
2 busbar systems in the
cubicle:
rear top busbar position
or
rear bottom busbar position
3WL1106 630 A 600 600 - -
3WL1108 800 A 600 600 - -
3WL1110 1,000 A 600 600 - -
3WL1112 1,250 A 600 600 - -
3WL1116 1,600 A 600 600 - -
3WL1120 2,000 A 600 600 - -
3WL1220 2,000 A 800 800 - -
3WL1225 2,500 A 800 800 - -
3WL1232 3,200 A 800 800 - -
3WL1340 4,000 A 1,000 1,000 - -
Transverse coupler 3-pole 4-pole
2 busbar systems in the
cubicle:
rear top busbar position
and
rear bottom busbar position
3WL1106 630 A 400/600 600 - -
3WL1108 800 A 400/600 600 - -
3WL1110 1,000 A 400/600 600 - -
3WL1112 1,250 A 400/600 600 - -
3WL1116 1,600 A 400/600 600 - -
3WL1120 2,000 A 400/600 600 - -
3WL1220 2,000 A 600/800 800 - -
3WL1225 2,500 A 600/800 800 - -
3WL1232 3,200 A 600/800 800 - -
3WL1340 4,000 A 1,000 1,000 - -
1)
Frame height 2,200 mm
