SIVACON S8 Planning Principles – Universal mounting design
designs makes for a space-optimized structure of the
switchboard. Tab. 4/1 gives an overview of the general
cubicle characteristics.
The universal mounting design of SIVACON S8 switch-
boards (Fig. 4/1) allows outgoing feeders in withdrawable
design, fixed-mounted design and plug-in in-line design to
be implemented. A combination of these mounting
4 Universal mounting design
Tab. 4/1: General cubicle characteristics for the universal mounting design
Application range - Incoming feeders up to 630 A
- Outgoing cable feeders up to 630 A
- Outgoing motor feeders up to 630 A
Degrees of protection - Up to IP43 Ventilated
- IP54 Non-ventilated
Cubicle dimensions - Cubicle height 2,000, 2,200 mm
- Cubicle width (rear connection in cubicle) 600 mm
- Cubicle width (front connection in cubicle) 1,000, 1,200 mm
Device compartment - Height 1,600, 1,800 mm
- Width 600 mm
Form of internal separation - Up to form 4b
1)
Compartment door, functional
compartment door
Mounting designs - Withdrawable design
- Fixed-mounted design with compartment door
- In-line switch-disconnectors 3NJ62 with fuses
2)
- In-line switch-disconnectors SASIL plus with fuses (Jean Müller)
2)
1)
Dependent on mounting design
2)
Front connection in cubicle

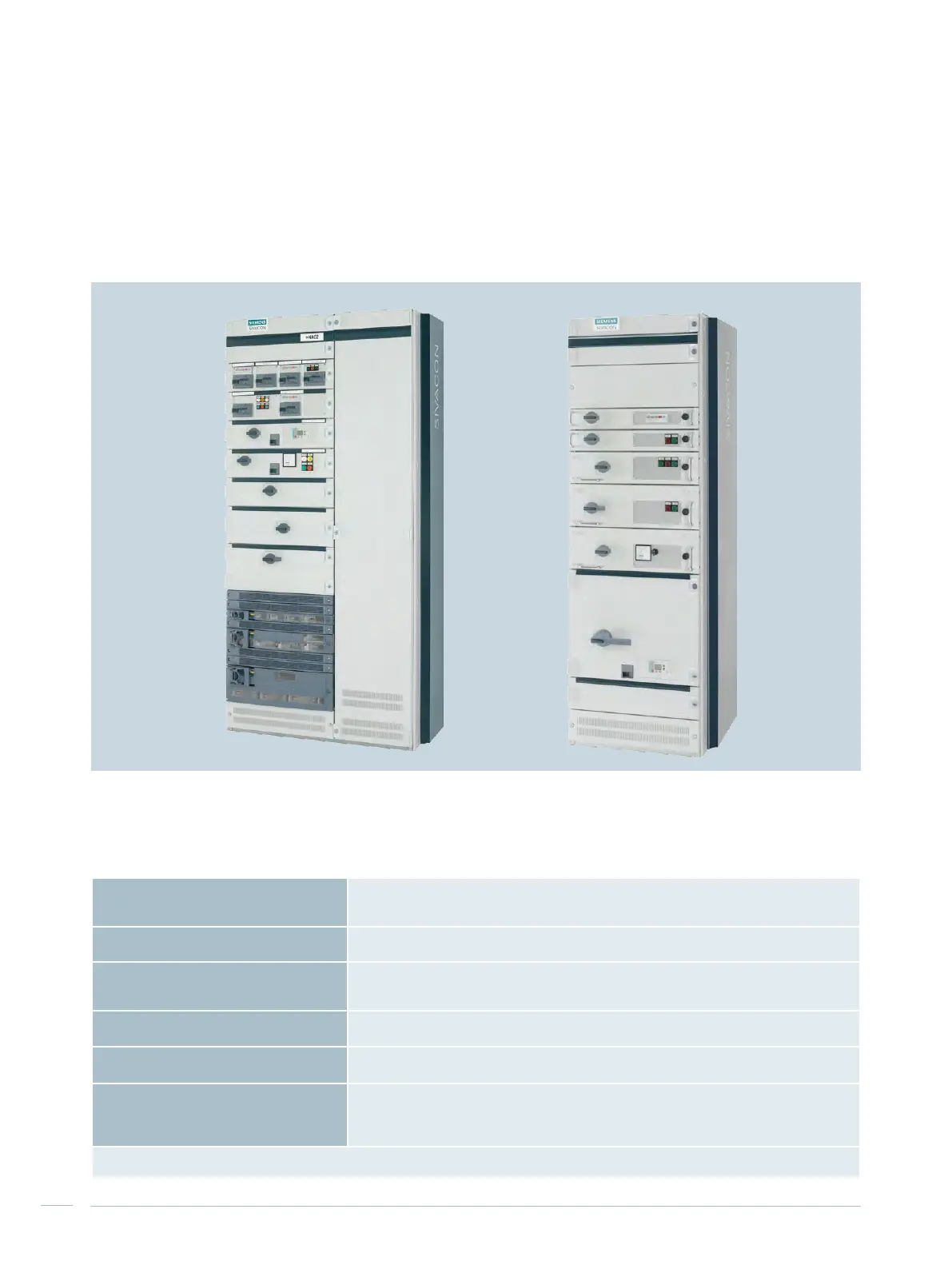

Fig. 4/1: Cubicles for universal mounting design: on the left with front cable connection; on the right for rear cable connection
