SIVACON S8 Planning Principles – Circuit-breaker design
3.1 Cubicles with one ACB (3WL)
The widths for the different cubicle types are listed by ACB
type in Tab. 3/2 to Tab. 3/4.

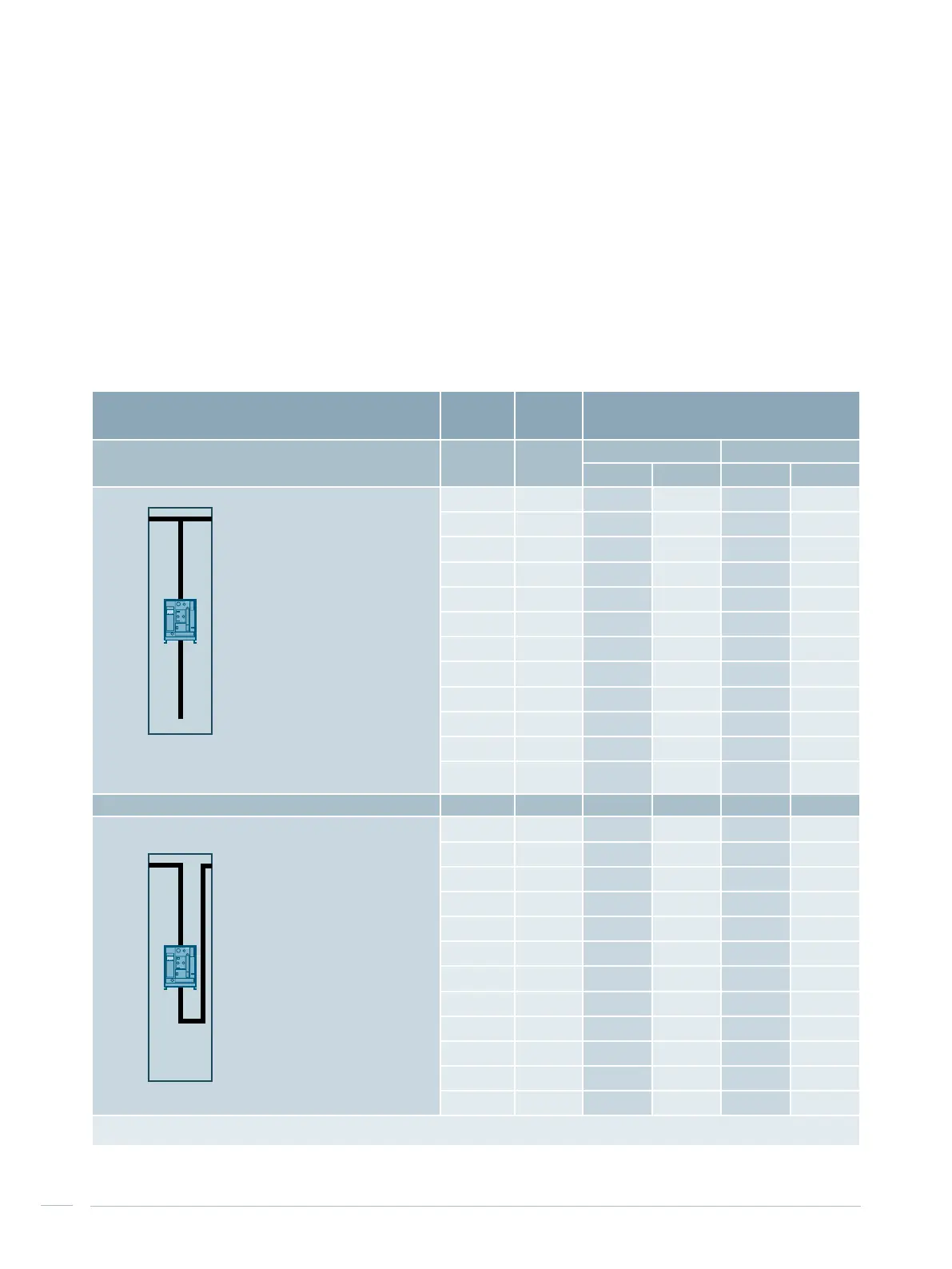

Tab. 3/2: Cubicle dimensions for top busbar position
Cubicle type
ACB type
Nominal
device
current
Cubicle width in mm
Incoming / outgoing unit
Cable connection Busbar connection
3-pole 4-pole 3-pole 4-pole
Top busbar position,
cable / busbar entry from the
top or bottom
3WL1106 630 A 400/600 600 - -
3WL1108 800 A 400/600 600 - -
3WL1110 1,000 A 400/600 600 - -
3WL1112 1,250 A 400/600 600 - -
3WL1116 1,600 A 400/600 600 400/600 600
3WL1120 2,000 A 400/600 600 400/600 600
3WL1220 2,000 A 600/800 800 600/800 800
3WL1225 2,500 A 600/800 800 600/800 800
3WL1232 3,200 A 600/800 800 600/800 800
3WL1340 4,000 A
2)
800 1,000 800 1,000
3WL1350
1)
5,000 A
2)
- - 1,000 1,000
The position of the connecting bars is identical for cable entry
from the top or bottom
3WL1363
1)
6,300 A
2)
- - 1,000 1,000
Longitudinal coupler 3-pole 4-pole
Top busbar position
3WL1106 630 A 600 800 - -
3WL1108 800 A 600 800 - -
3WL1110 1,000 A 600 800 - -
3WL1112 1,250 A 600 800 - -
3WL1116 1,600 A 600 800 - -
3WL1120 2,000 A 600 800 - -
3WL1220 2,000 A 800 1,000 - -
3WL1225 2,500 A 800 1,000 - -
3WL1232 3,200 A 800 1,000 - -
3WL1340 4,000 A
2)
1,000 1,200 - -
3WL1350
1)
5,000 A
2)
1,200 1,200 - -
3WL1363
1)
6,300 A
2)
1,200 1,200 - -
1)
Withdrawable design, frame height 2,200 mm
2)
Main busbar up to 6,300 A
