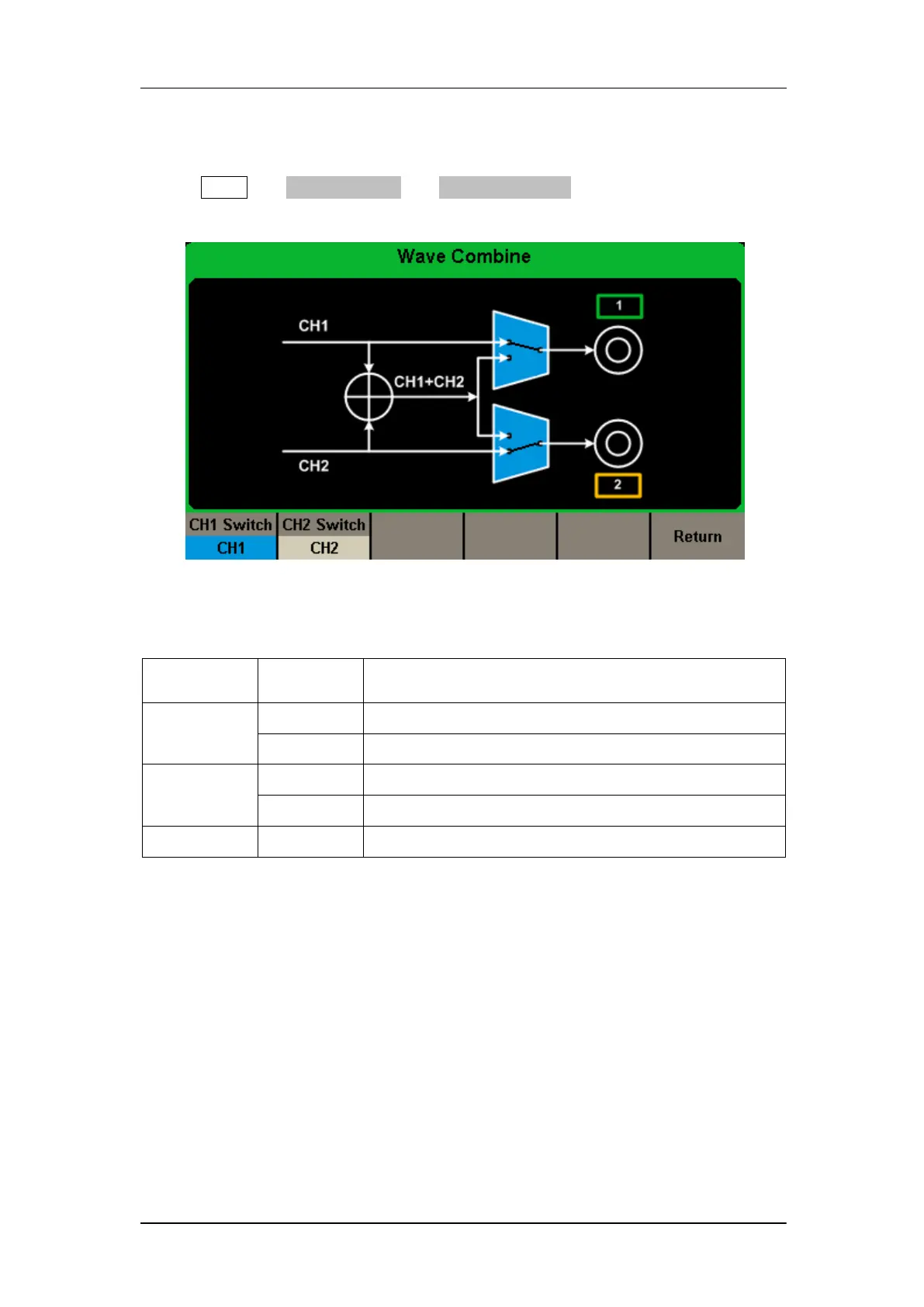

Sets the trigger level of the measurement system. The system triggers and
obtains the measurement readings when the input signal reaches the
specified trigger level. The default is 0V and the available range is from -3V to
1.5V. Choose TrigLev and use the numeric keyboard to input the desired value
and select the unit (V or mV) from the pop-up menu. Or use the knob and
arrow keys to change the parameter value.
4. Coupling Mode
Sets the coupling model of the input signal to “AC” or “DC”. The default is
“AC”.
5. HFR
High Frequency Rejection can be used to filter out the high-frequency
components of a measured signal and improve the measurement accuracy in
low-frequency signal measurement. Press HFR to enable or disable this
function. The default is “Off”.
Enable High Frequency Rejection when low-frequency signal with lower
than a 250kHz frequency is measured to filter out the high-frequency
noise interference.
Disable High Frequency Rejection when a signal with a frequency higher
than 250 KHz is measured. The maximum frequency that can be counted
is 200 MHz.
