SIGLENT
SDG2000X User Manual 139
Press Type and choose Linear.

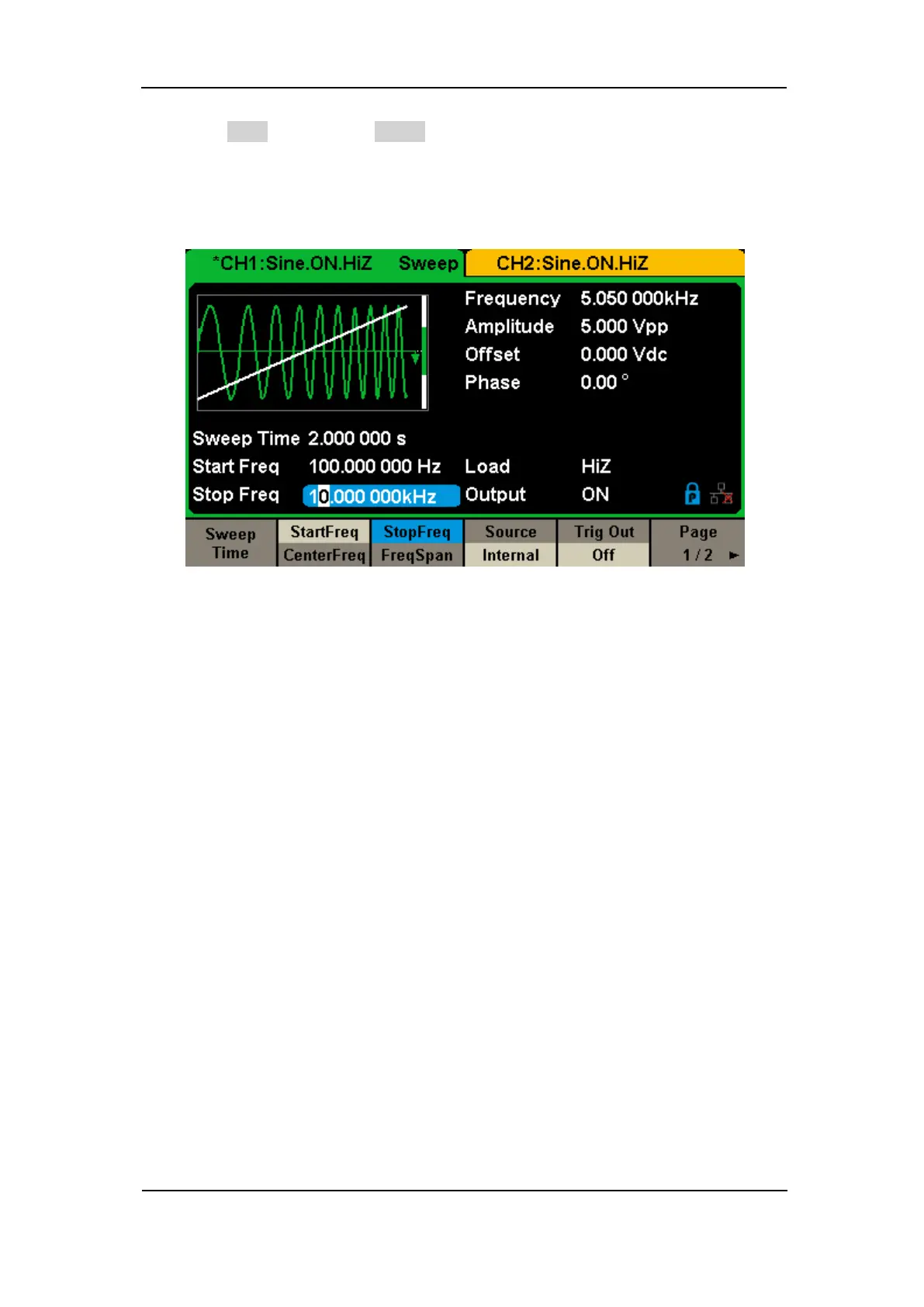

When all parameters above are set, the linear sweep waveform generated is
shown in Figure 3-7.
Figure 3-7 Generate a Linear Sweep Waveform
