 Set the burst cycle.
Press Cycle, Input ‘5’ from the keyboard and choose the unit ‘Cycle’ to set
the burst cycle count to 5.
 Set the delay.
Press Page 1/2 to choose Delay, and input ‘100’ from the keyboard and
choose the unit ‘μs’ to set the delay to 100μs.

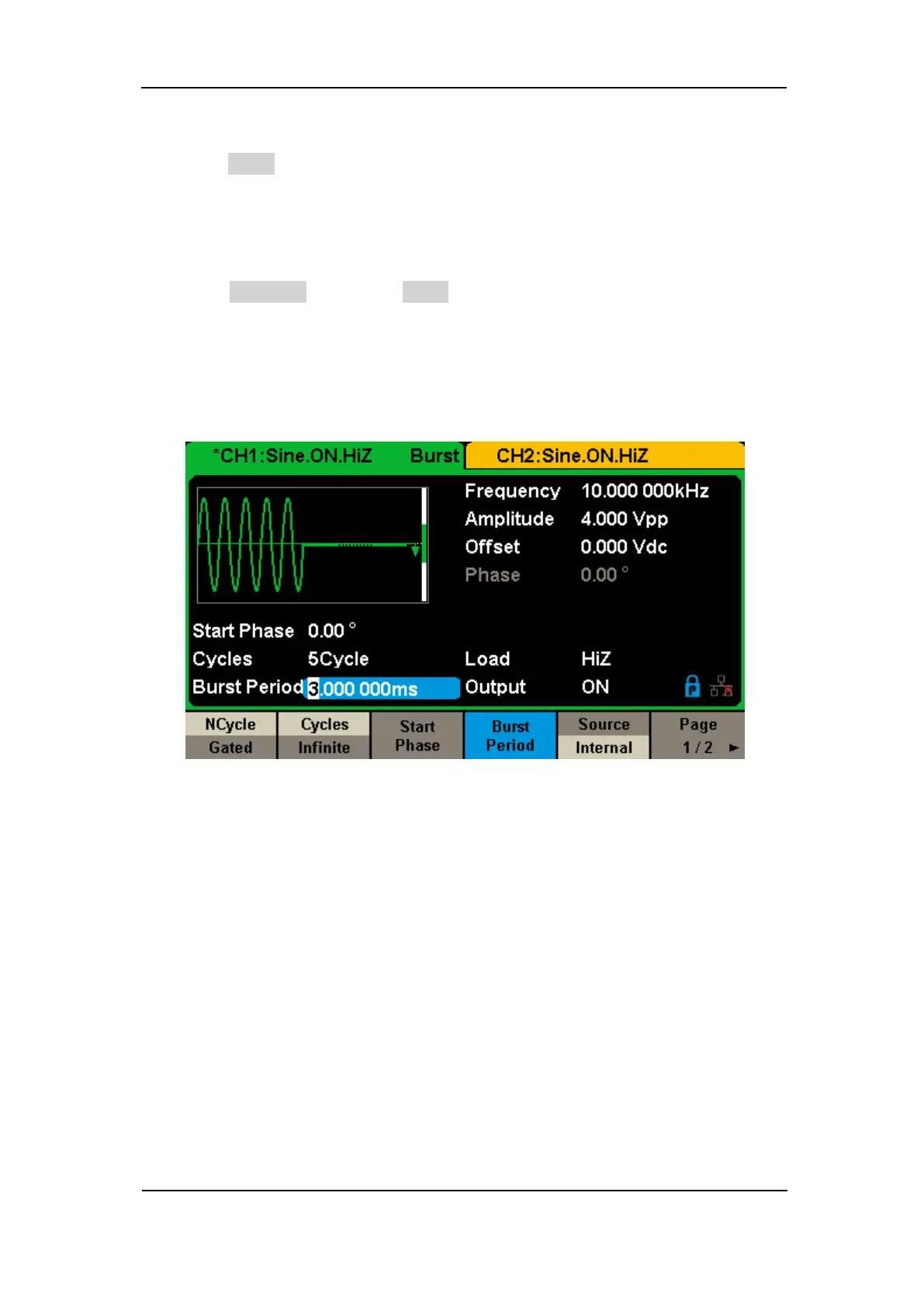

When all parameters above are set, the waveform generated is shown in
Figure 3-8.
Figure 3-8 Generate a N-Cycle Burst Waveform
