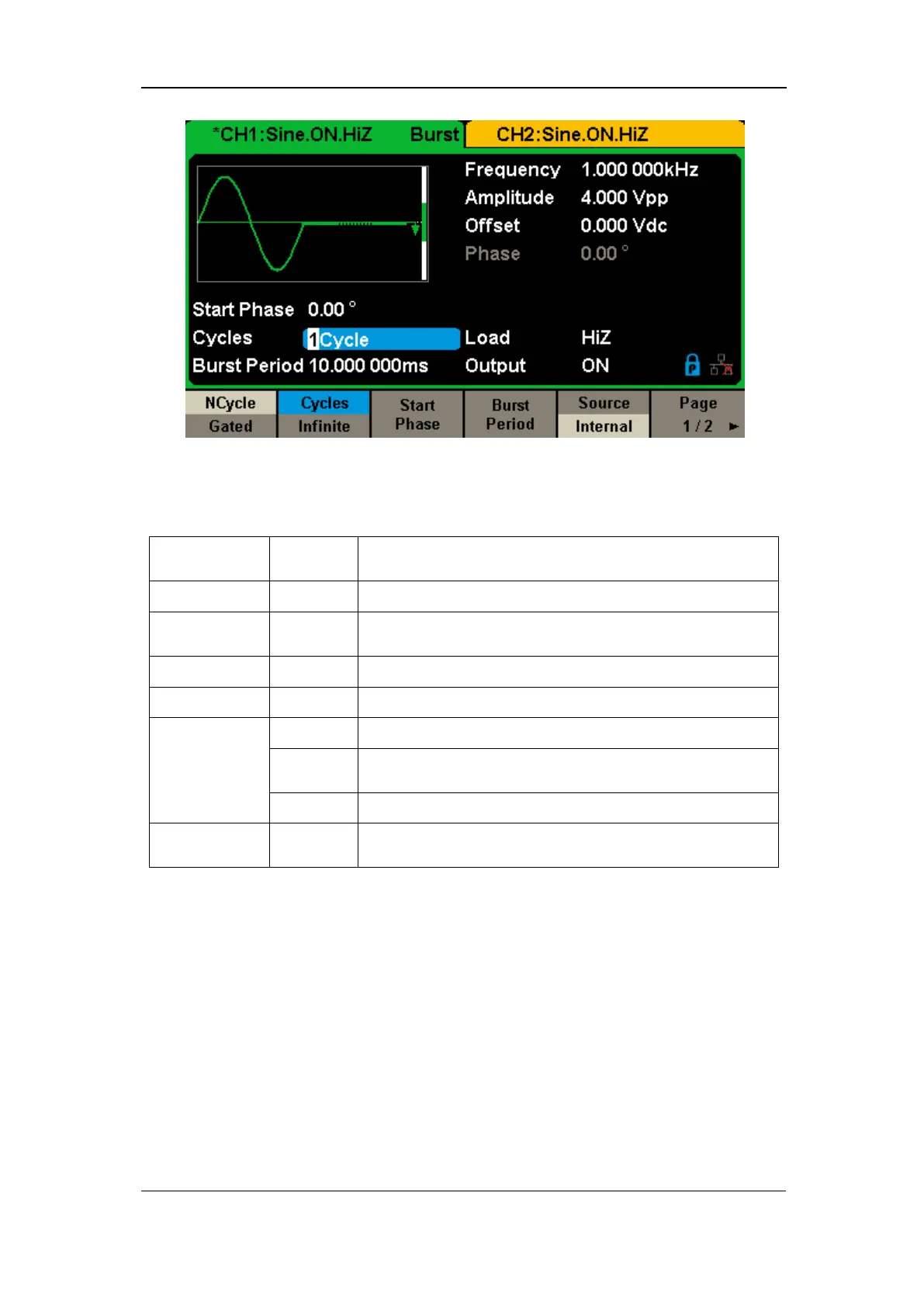

Figure 2-38 N-Cycle Burst Interface (Page 1/2)
Table 2-21 Menu Explanations of the N-Cycle Burst (Page 1/2)
Function
Menu
Settings
Explanation
NCycle
Use the N-Cycle mode.
Cycles
Infinite
Set the number of the bursts in N-Cycle.
Set the number of the bursts in N-Cycle to be infinite.
Start Phase
Set the start phase of the burst.
Burst Period
Set the burst period.
Source
Internal
Choose internal source as a trigger.
External
Choose external source as a trigger. Use the [Aux
In/Out] connector at the rear panel.
Manual
Trigger a burst by manual.
Page
1/2
Enter the next page.
