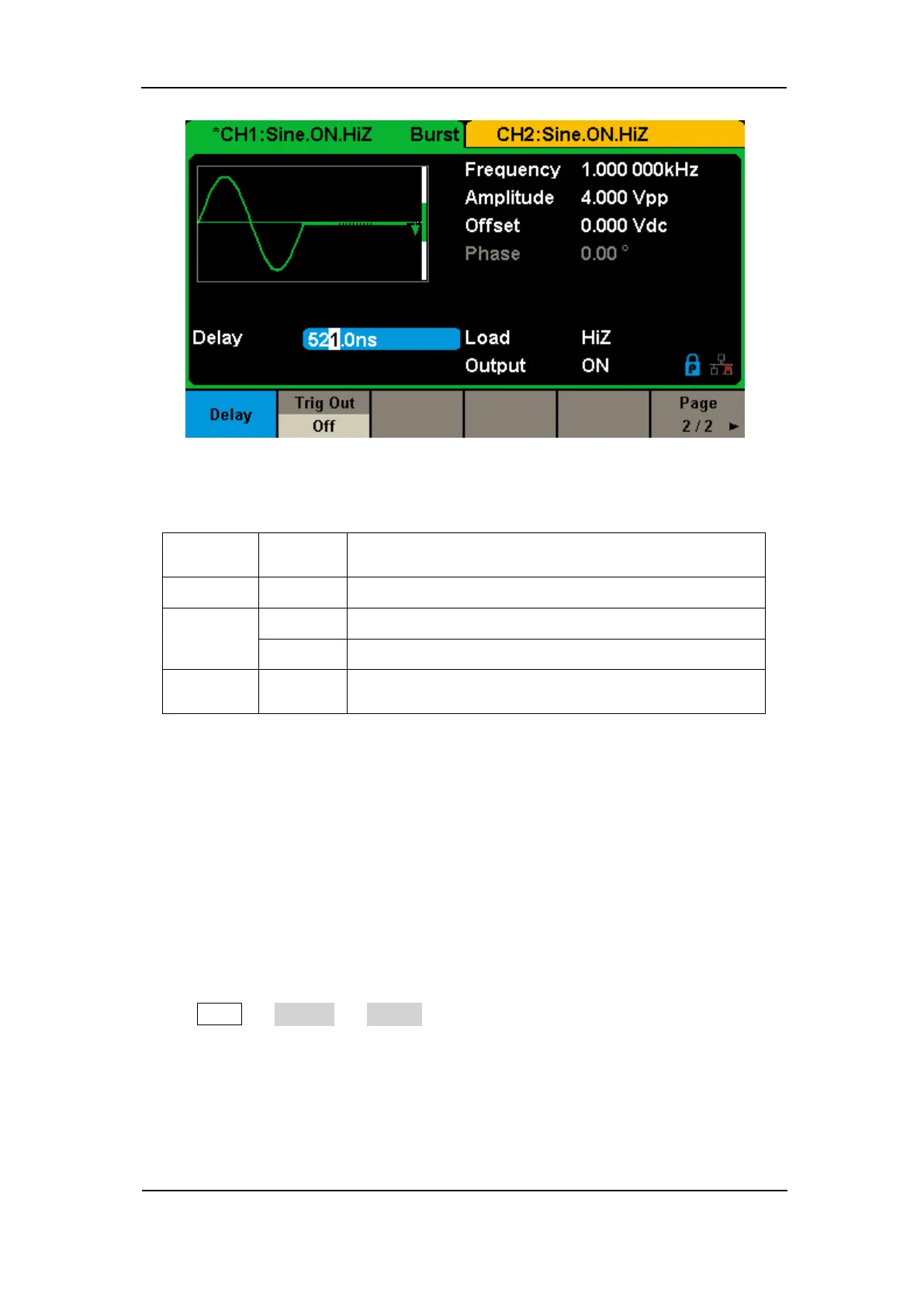

Figure 2-39 N-Cycle Burst Interface (Page 2/2)
Table 2-22 Menu Explanations of the N-Cycle Burst (Page2/2)
Set the delay time before the burst starts.
Return to the previous page.
Infinite
In infinite mode, the cycle number of the waveform is set as an infinite value.
The generator outputs a continuous waveform after receiving the trigger signal.
Waveforms that support infinite mode include sine, square, ramp, pulse and
arbitrary.
Press Burst → NCycle → Infinite, and set the trigger source to “external” or
“manual”. The screen will display an infinite cycle burst, as shown in Figure
2-40 Infinite Burst InterfaceFigure 2-40.
