SIGLENT
SDG2000X User Manual 85
Table 2-26 Menu Explanation of File Storage
Cursor downward to select.
Select the current character.
Delete the current character.
Store the file with the current name.
Return to the store/Recall interface.
Select the character
Users can select the desired character from the virtual soft keyboard by using
the knob or Up and Down menus. Or touch the location of the character on the
screen directly. Then choose Select to display the character selected in the
filename area.
Delete the character
Use the left and right arrow keys to move the cursor in the file name. Then
choose Delete to delete the corresponding character.
4. Save the file.
After finishing inputting filename, press Save. The generator will save the file
under the currently selected directory with the specified filename.

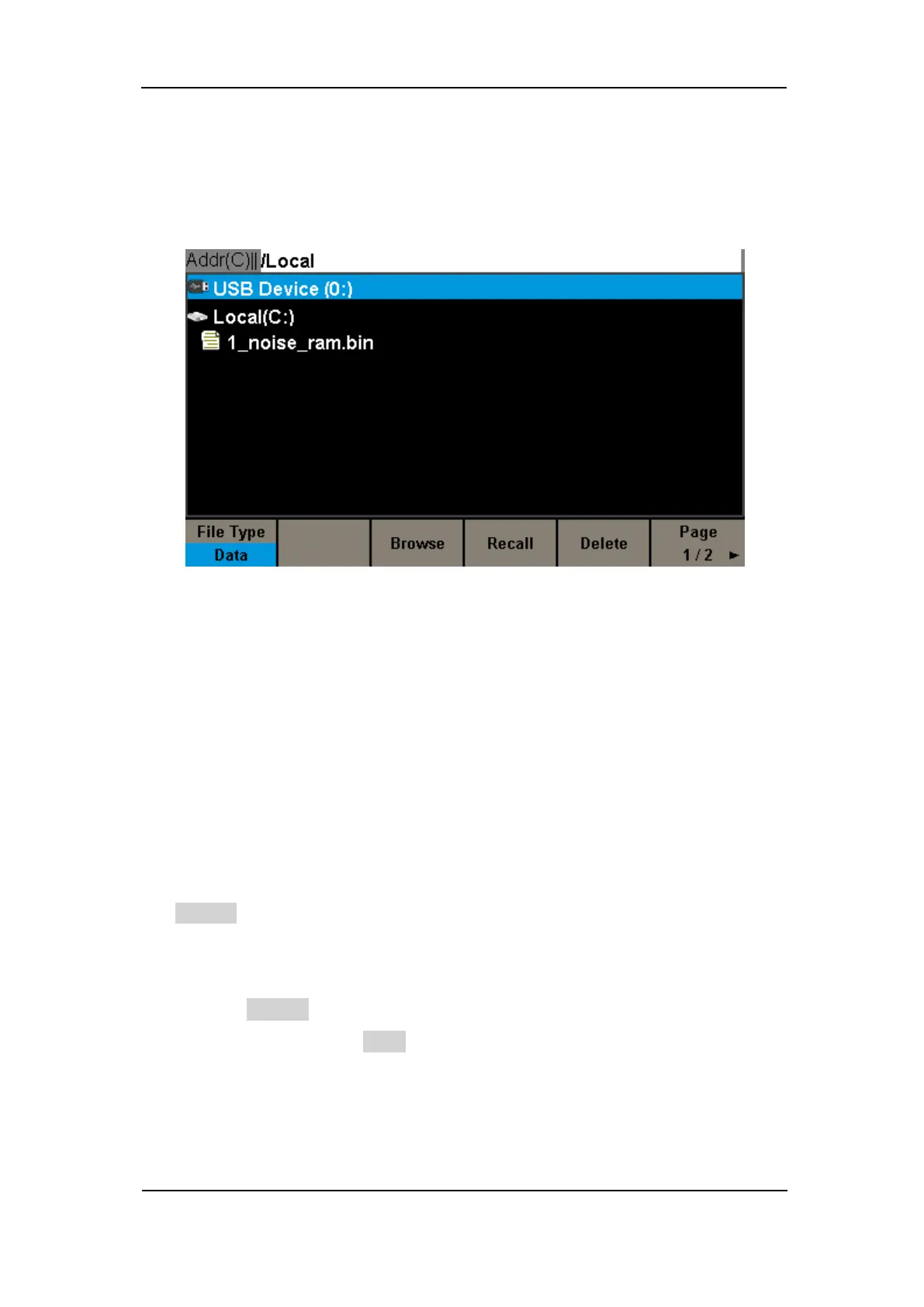

To Recall State File or Data File
To recall the instrument state or arbitrary waveform data, the procedures are
as follows:
1. Choose the file type.
Press Store/Recall ā File Type, and choose state or data as the storage type.
