Evaluation
• Put the reader onto the rotor.
• Turn the reader and perform a fine adjustment with the aid of the central
eccentric mechanism in order to localize the O-point and the maximum
liquid point in the capillary tubes. You can now read the percentage
value.
• Remove the capillary tubes. Some of the tubes can also be evaluated
with the reader outside of the rotor (see the instructions for use on the
back of the reader).
Pos: 103 /010 Uni versalmodule/ Leerzeile @ 0\mod_12 02116244500 _0.docx @ 114 @ @ 1
Pos: 104 /100 Sig ma/100 BA Ze ntrifugen Sigma (St andardmo dule)/061 Betrieb_ Spincontrol Basic /061-002 0-0020-0030 Ei nsetzen von Zu behör @ 27\m od_14053203 18688_68.doc x @ 193739 @ 4 @ 1
6.2.2.3 Installation of accessories
• Only use tubes that are suitable for the rotor (see chapter 11.1 -
"Range of accessories").
• Always load the axial symmetrical inserts of the rotors with the same
accessories and fill to avoid imbalance.
Centrifugation with low capacity
• Install the tubes axial symmetrically so that the rotor is loaded evenly.
• It is not permissible to load angle rotors on only one axis.

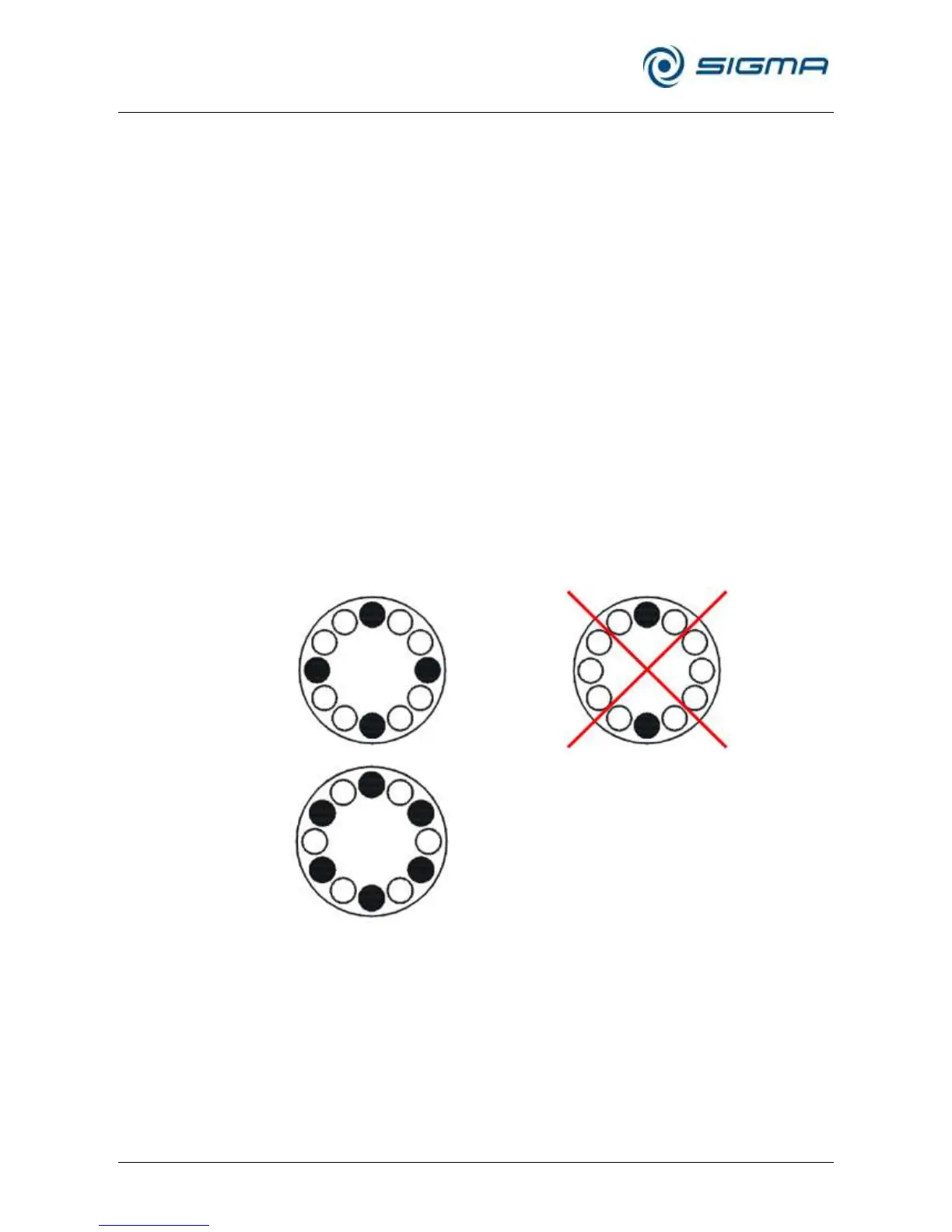

Fig. 7: Permissible and impermissible loading of an angle rotor (example illustration)
Pos: 105 /010 Uni versalmodule/ Leerzeile @ 0\mod_12 02116244500 _0.docx @ 114 @ @ 1
Pos: 106 /100 Sig ma/100 BA Ze ntrifugen Sigma (St andardmo dule)/061 Betrieb_ Spincontrol Basic /061-002 0-0020-0040 G efäße @ 27\m od_140532032 0154_68.docx @ 193753 @ 4 @ 1
6.2.2.4 Tubes
• Load the tubes outside of the centrifuge. Liquids in the bores of the rotor
cause corrosion.
• Fill the tubes carefully and arrange them according to their weight.
Imbalances result in the excessive wear of the bearings.
• Follow the safety instructions and hazard warnings (see chapter 3 -
"Safety")!
