Sigma SD1 Merrill User Manual

95
VIEWING IMAGES ON A TV
The SD1 Merrill camera can be connected to a television or a video/DVD
recorder using the provided AV cable, allowing the recorded images to be
viewed on the television monitor or recorded on videotape/DVD.

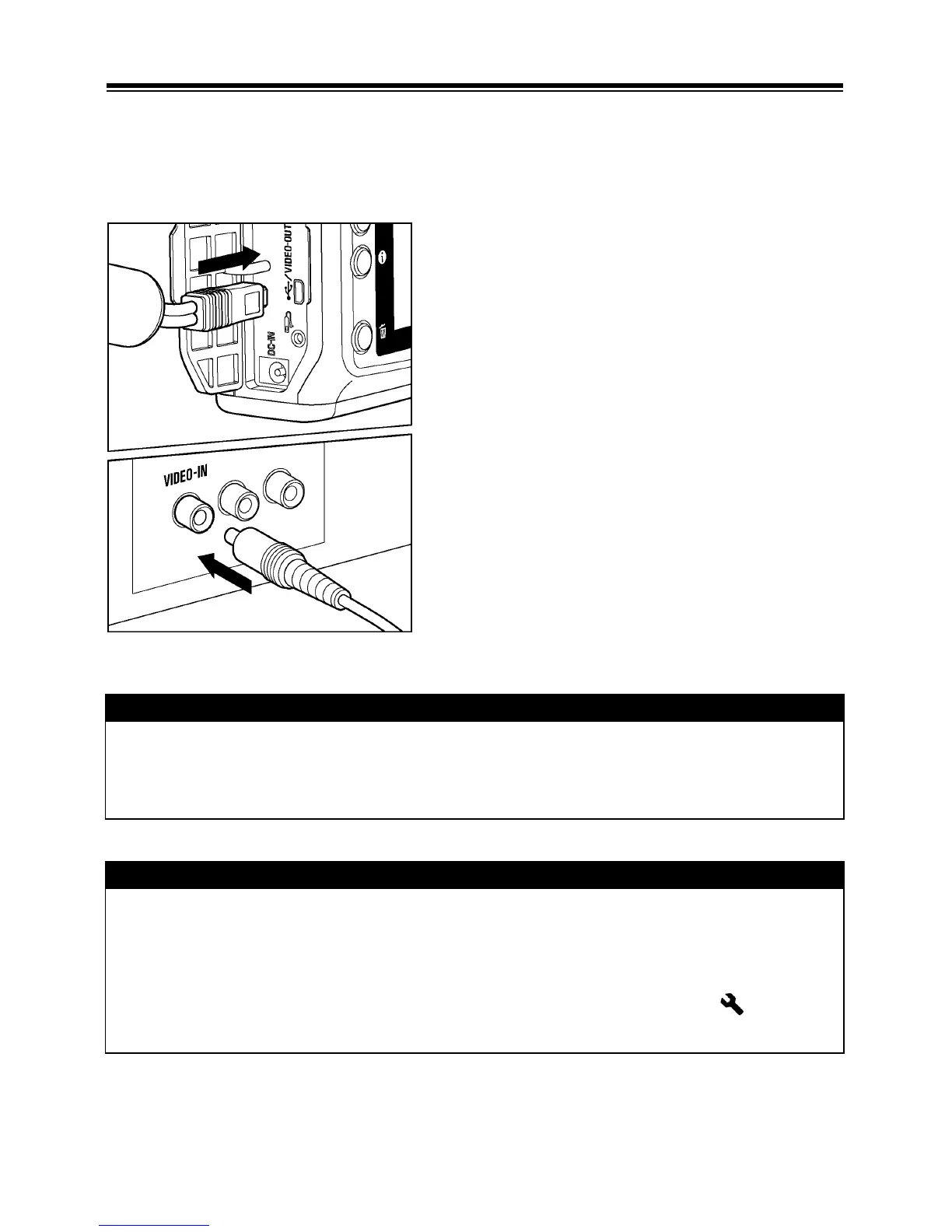

TO CONNECT THE CAMERA TO A
VIDEO DEVICE
1
Open the connector cover.
2
Connect the AV cable to the ＜ USB /
VIDEO- OUT＞
terminal on the camera and
to the video input terminal on the television
or video recorder. (Please connect the yellow
plug to the video input terminal.)
3
Turn on the camera and the video device.
WARNING !!
• Please do not use any AV cable other than provided with your Sigma SD1
Merrill camera, when connecting a video input terminal. Using other brands
may cause damage.
TIP
• It is recommended that the camera be powered with the AC adapter
(optional) during television playback to avoid draining the battery.
• The default mode for the video signal is NTSC. When connecting the camera
to a PAL device, the [Video Mode] must be changed to [PAL] in [ Camera
Settings] (P.28).

Sigma SD1 Merrill Specifications

General

Megapixel	46 MP
Camera type	SLR Camera Body
Sensor type	CMOS
Image stabilizer	-
Total megapixels	48 MP
Image sensor size	- \
Image formats supported	JPG, RAW
Supported aspect ratios	3:2
Maximum image resolution	4704 x 3136 pixels
Image sensor size (W x H)	23.5 x 15.7 mm
Still image resolution(s)	4704 x 3136, 3264 x 2176, 2336 x 1568
Optical zoom	- x
Focus	TTL
Auto focusing (AF) modes	Continuous Auto Focus, Single Auto Focus
Normal focusing range (tele)	- m
Light metering	Centre-weighted, Evaluative (Multi-pattern), Spot
ISO sensitivity	100, 200, 400, 800, 1600, 3200, 6400
Light exposure modes	Aperture priority AE, Manual, Shutter priority AE
ISO sensitivity (max)	6400
ISO sensitivity (min)	100
Light exposure control	Program AE
Light exposure correction	± 3EV (1/3EV step)
Camera shutter type	Electronic
Fastest camera shutter speed	1/8000 s
Slowest camera shutter speed	30 s
External flash connector	Yes
Maximum video resolution	- pixels
Memory slots	1
Compatible memory cards	CF
Flip-out screen	No
Display diagonal	3 \
Display resolution (numeric)	460000 pixels
Magnification	0.95 x
USB version	2.0
Photo effects	Black&White, Neutral, Sepia, Vivid
White balance	Auto, Custom modes, Flash, Fluorescent, Incandescent, Shade, Sunny
Power source type	Battery
Product color	Black
Cables included	AV, USB
Bundled software	SIGMA Photo Pro

Weight and Dimensions

Depth	80 mm
Width	145.5 mm
Height	113.5 mm
Weight	700 g
