ATTENTION: each notch on the centesimal ring corresponds to 0,025 mm (fig. 15-A).
9) Repeat these operations until regulation is complete, then tighten the tracer point locking grub screw
(G2).

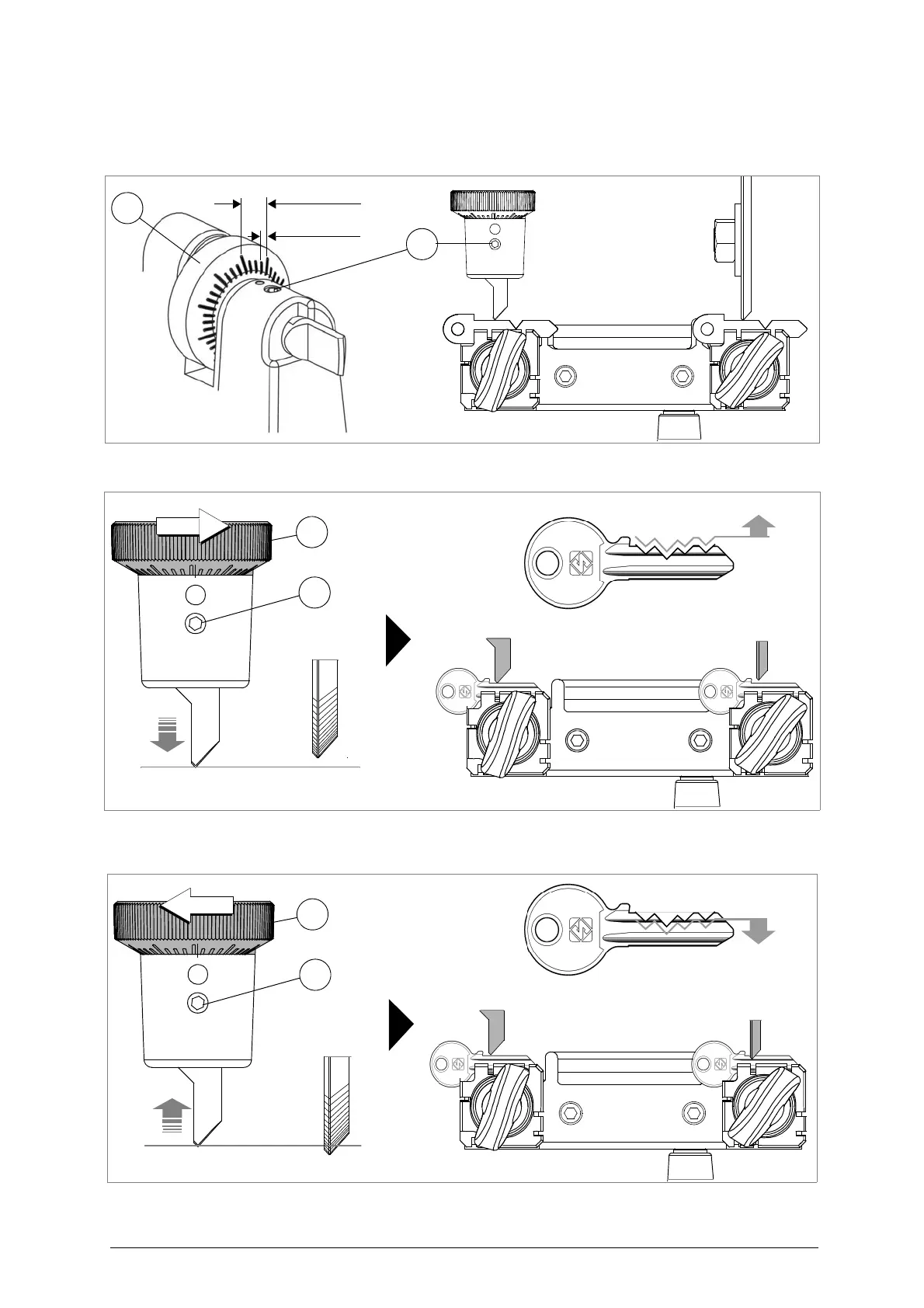

Fig. 15
Fig. 16
Turn the nut to the RIGHT (clockwise) to take the tracer point down. Result: LESS DEEP CUTS
Fig. 17
Turn the nut to the LEFT (anticlockwise) to take the tracer point up. Result: DEEPER CUTS
