9.10 Replacing motor/condenser
ATTENTION: remove the mains plug.
1) Loosen the 4 screws (Q1) and remove the top cover (Q) (fig.49, page 35).
2) Detach the 4 connectors (S2) from the motor ignition switch and condenser (fig.58, page 39).
3) Unscrew the earth cable nut (S5) (fig. 59).
4) Turn the machine onto its back (chap.9.2, page 34).
5) Loosen the 4 screws (S1) (fig. 60) on the motor fixing plate and remove the belt (chap.9.4, page 35).
6) Loosen completely only the 2 lower screws (S1) the motor fixing plate and pull downwards.
7) Install the new motor and tighten the 4 screws (S1) slightly.
8) Place the machine in position on the work bench.
9) Install the belt and tighten it, and tighten the 4 screws (S1) (fig. 60) of the plate motor.
10) Connect the 4 connectors (S2) (fig. 58) to the motor on switch and fit the earth cable to its screw with
the nut (S5) (fig. 59).
11) Replace the condenser wires.
12) Place the machine in position on the work bench.
13) Replace the top cover and secure with the 4 screws (Q1).

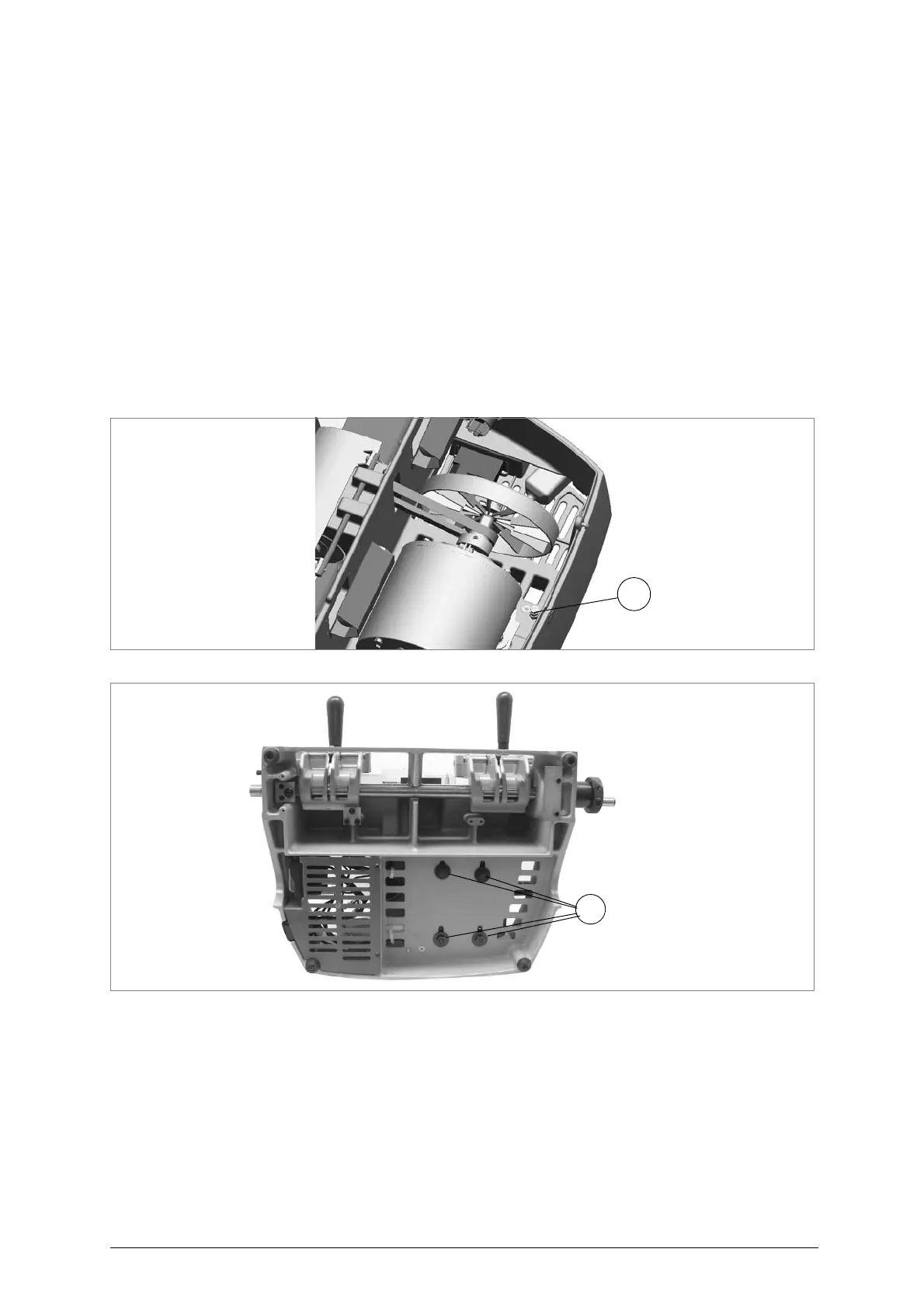

Fig. 59
Fig. 60
S5
S1
