DUO Operating manual - English
20 Copyright Silca 2 010
8
CUTTING OPERATIONS
ATTENTION:
for complete safety during the cutting operations, take the following precautions
:
• Always work with dry hands.
• Check that the machine is properly earthed.
• Wear protective goggles even if the machine has a protective shield over the cutting tool.
• Start the motor (switch U) only after completing the operations on the carriage (securing the
keys, etc...).
• Keep hands away from the cutting tool in motion.
8.1 Key cutting
Cutting can be carried out in two ways:
• with the carriage in a fixed position (locked carriage) (Attention: not available on Duo Brazil
version)
• with the carriage in a mobile/free position (carriage released)
ATTENTION: if cutting is carried out with the carriage in a fixed position, before proceeding release the
carriage not to be used (Attention: not available on Duo Brazil version).
ATTENTION: if cutting is carried out with the carriage in a free position, use handle (C) or (H) to raise and move
the carriage.
8.1.1 Carriage release (right or left-hand side)
Attention: not available on Duo Brazil version

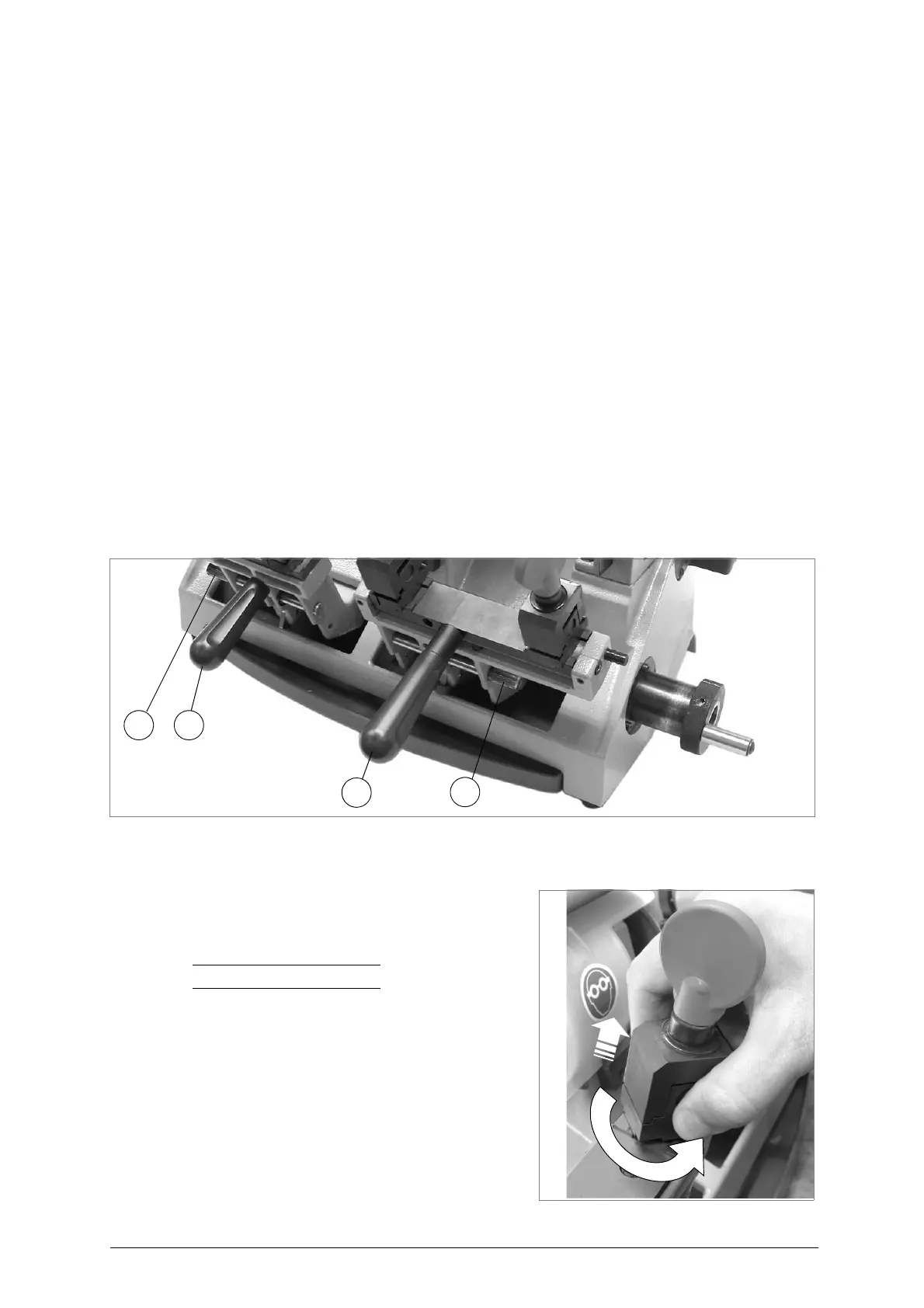

- turn the carriage lock/release pin to the right (A1 or B1) (fig. 23).
Fig. 23
The clamps must be prepared according to the type of key to be cut (fig. 24).
8.1.2 Clamp rotation
1) Loosen the clamp closing knob by a few turns.
2) Raise the clamp (both jaws) and turn so that the re-
quired side is facing the tracer point and cutter.
Note: carry out the operation on both clamps.
Fig. 24
