Operating manual - English DUO
Copyright Silca 2 010 39
9.9 Replacing motor on switch
ATTENTION: remove the mains plug.
1) Loosen the 4 screws (Q1) and remove the top cover (Q) (fig.49, page 35).
2) Detach the 4 connectors (S2) (fig. 58) paying special attention to their position.
3) Use a screwdriver to turn down the internal switch fixing tabs and pull it out.
4) Fit the new switch in its seat and r econnect the 4 connectors (S2) p aying special attention to their
position.
5) Replace the top cover and secure with the 4 screws (Q1).

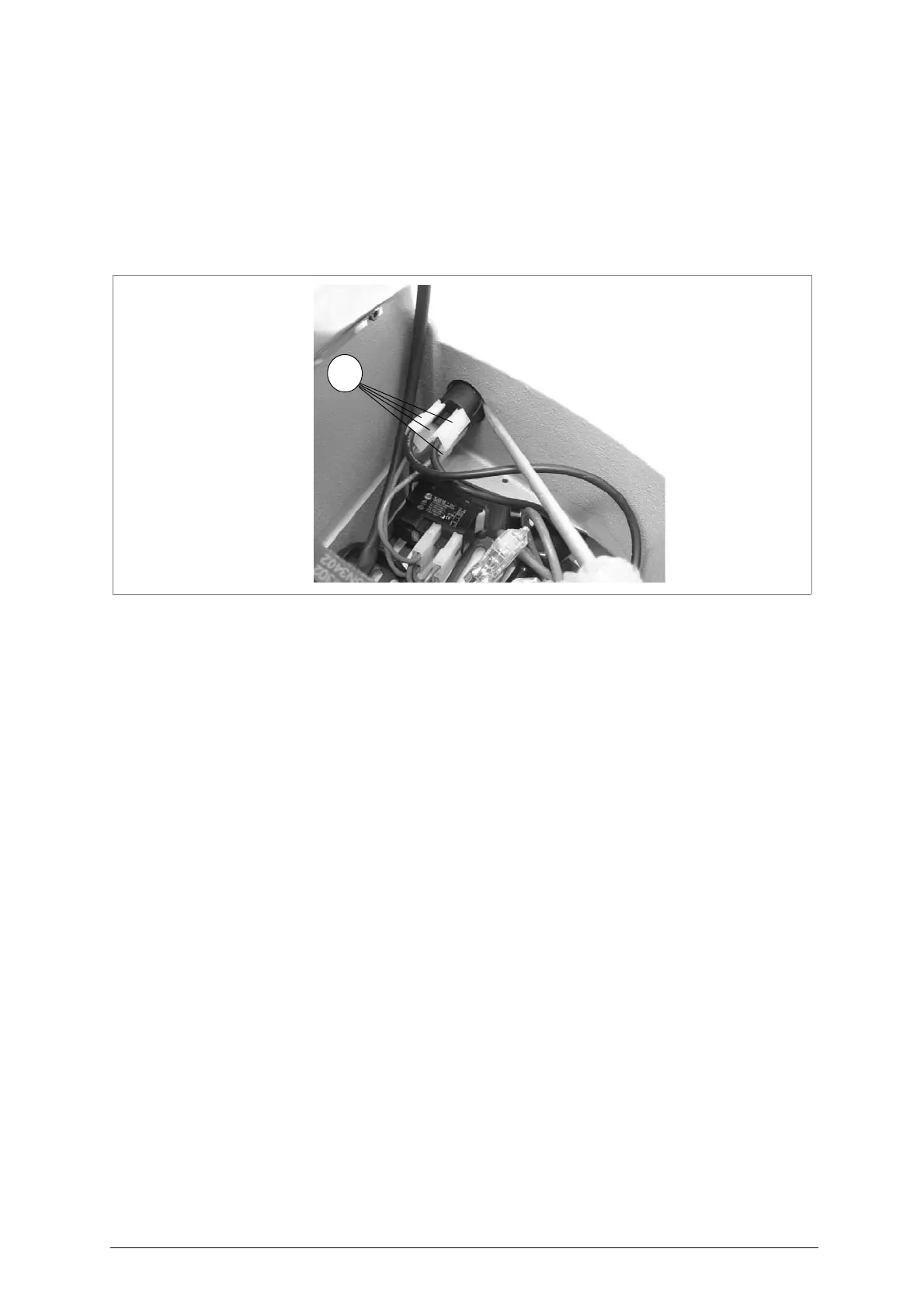

Fig. 58
