Silca DUO POWER - 2 DUO; DUO POWER Machines WORKING PARTS

DUO Operating manual - English
6 Copyright Silca 2 010

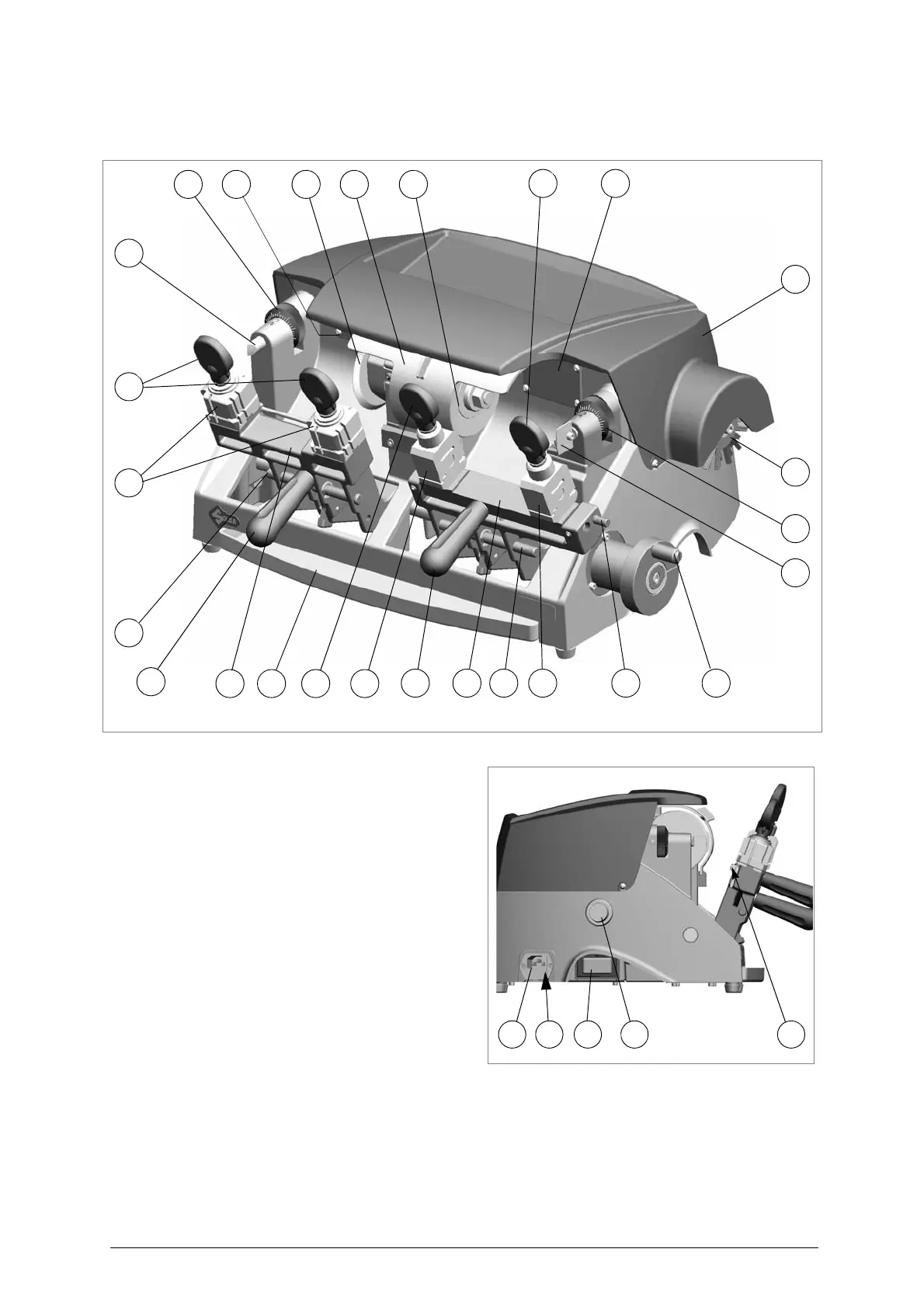

2 DUO / DUO POWER machines WORKING PARTS
Fig. 5
A - left-hand carriage
A1 - carriage lock/release pin - left-hand side
B - right-hand carriage
B1 - carriage lock/release pin - right-hand side
C - left-hand carriage movement lever
D - clamps for flat keys
D1 - gauges knob
E - clamps knobs (left-hand carriage)
F - prismatic cutter for flat keys
G - left tracer point for flat keys
G1 - centesimal ring - left tracer point
H - right-hand carriage movement lever
J - clamps for bit keys
K - clamps knobs (right-hand carriage)
L - tilting move ment activa ting pin (right-hand car-
riage)
M - milling cutter for bit keys
N - right tracer point for bit keys
N1 - centesimal ring - right tracer point
O - handwheel for carriage movement
P - brush
Q - top cover
R-lamps
S - chippings tray
T - main switch
U - motor on switch
V - supply socket
V1 - fuses
W - cutters protective shield
