8.1.5 Flared cuts cutting bit keys (right-hand carriage)
Tilting clamps
The clamps on the right-hand carriage, used to cut bit,
double bit and rim keys, may be of th e tilting type so
that the cuts can be flared.
• To activate tilting : pull out the pin (L).
•
To deactivate tilting : inser t the pin (L) to lock the
clamps in the fixed horizontal position.

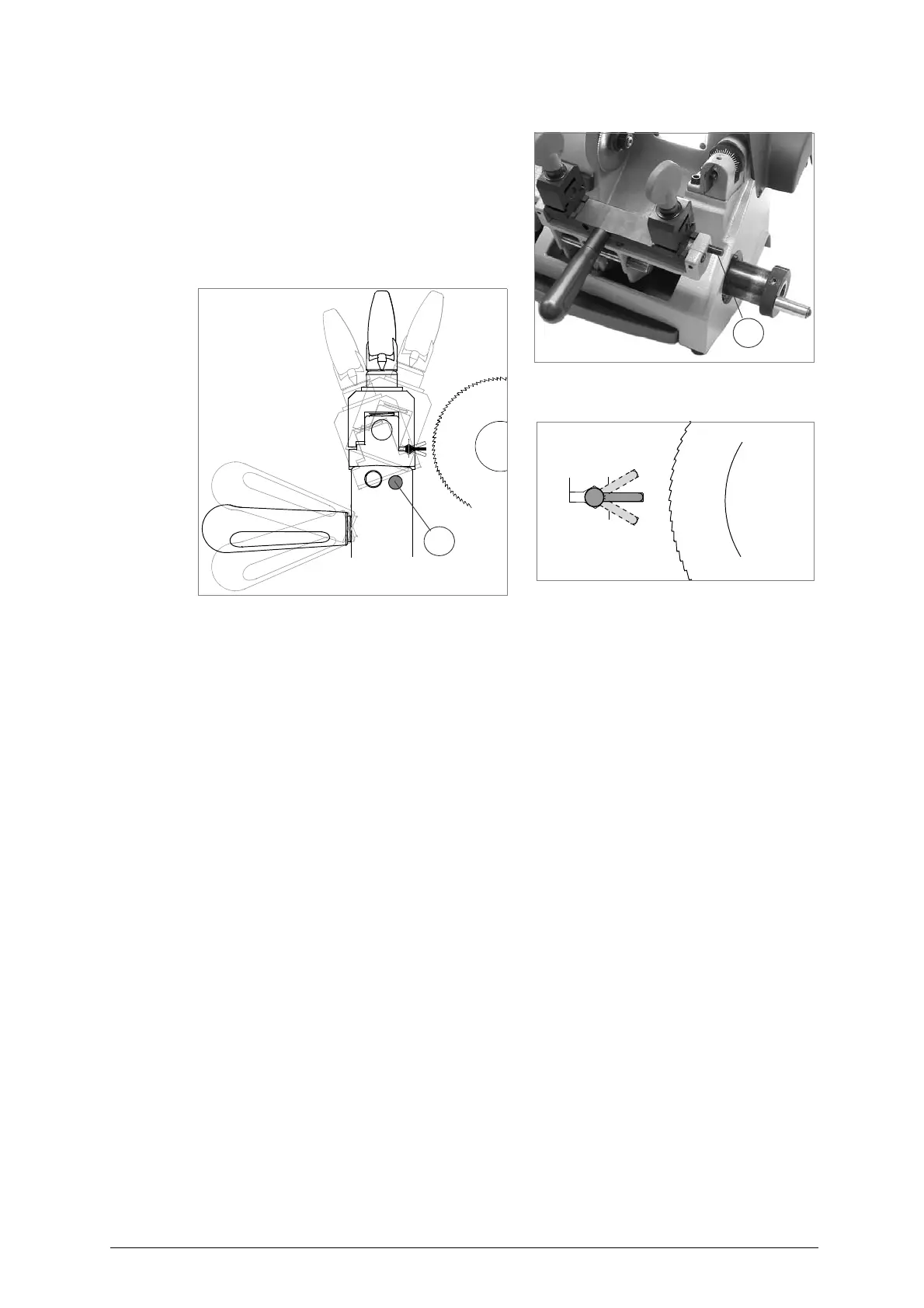

Fig. 27
Fig. 28
Fig. 29
L
L
