DUO Operating manual - English
38 Copyright Silca 2 010
9.8 Replacing main switch
ATTENTION: remove the mains plug.
1) Loosen the 4 screws (Q1) and remove the top cover (Q) (fig.49, page 35).
2) Detach the 4 connectors (V2) paying special attention to their position.
3) Remove the switch making pressure on the tabs with a screwdriver.
4) Fit the new main switch.
5) Reconnect the 4 connectors (V2).
6) Replace the top cover and secure with the 4 screws (Q1).

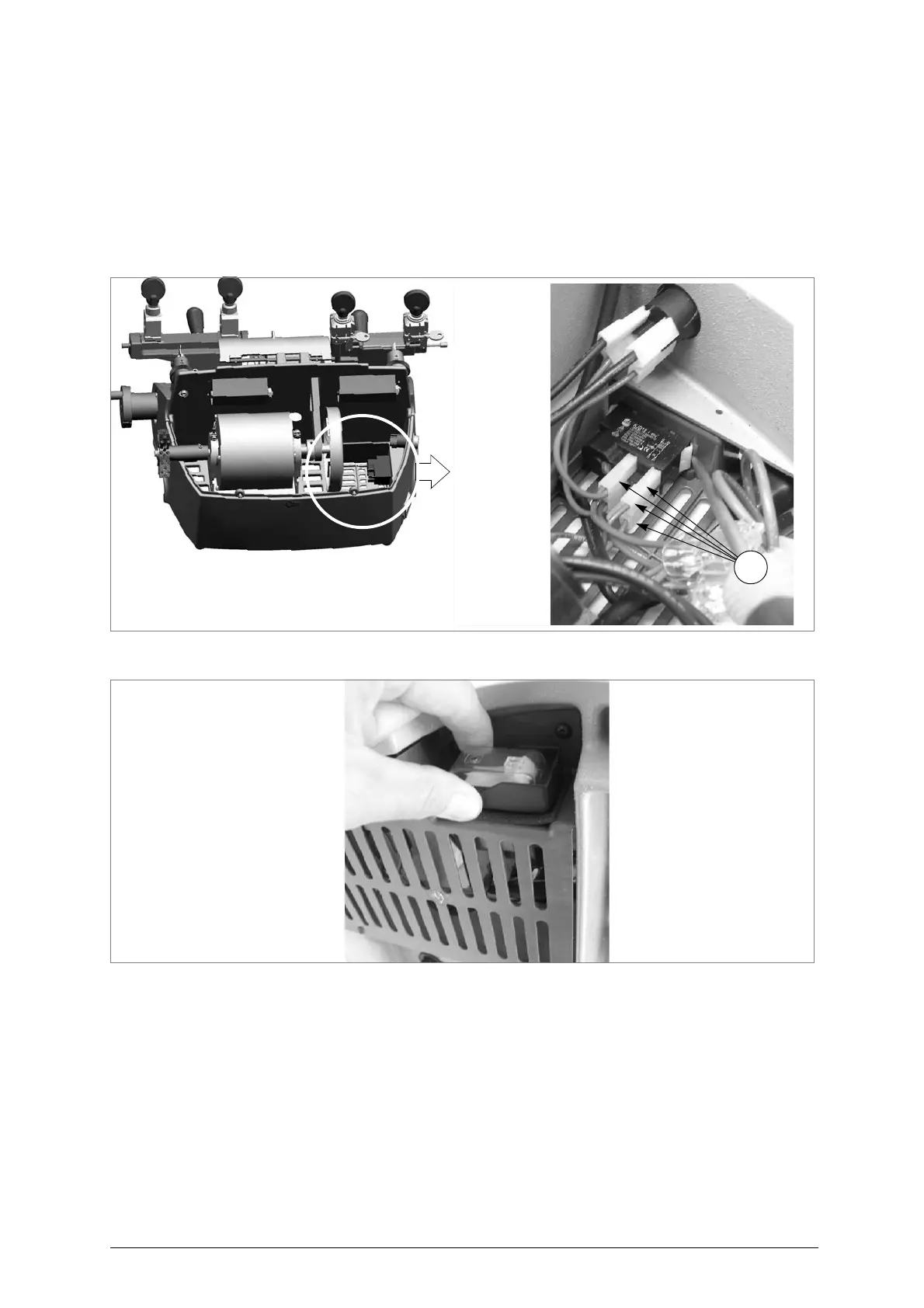

Fig. 56
Fig. 57
