Silca DUO POWER - 3 DUO BRAZIL Machine WORKING PARTS

Operating manual - English DUO
Copyright Silca 2 010 7
3 DUO BRAZIL machine WORKING PARTS

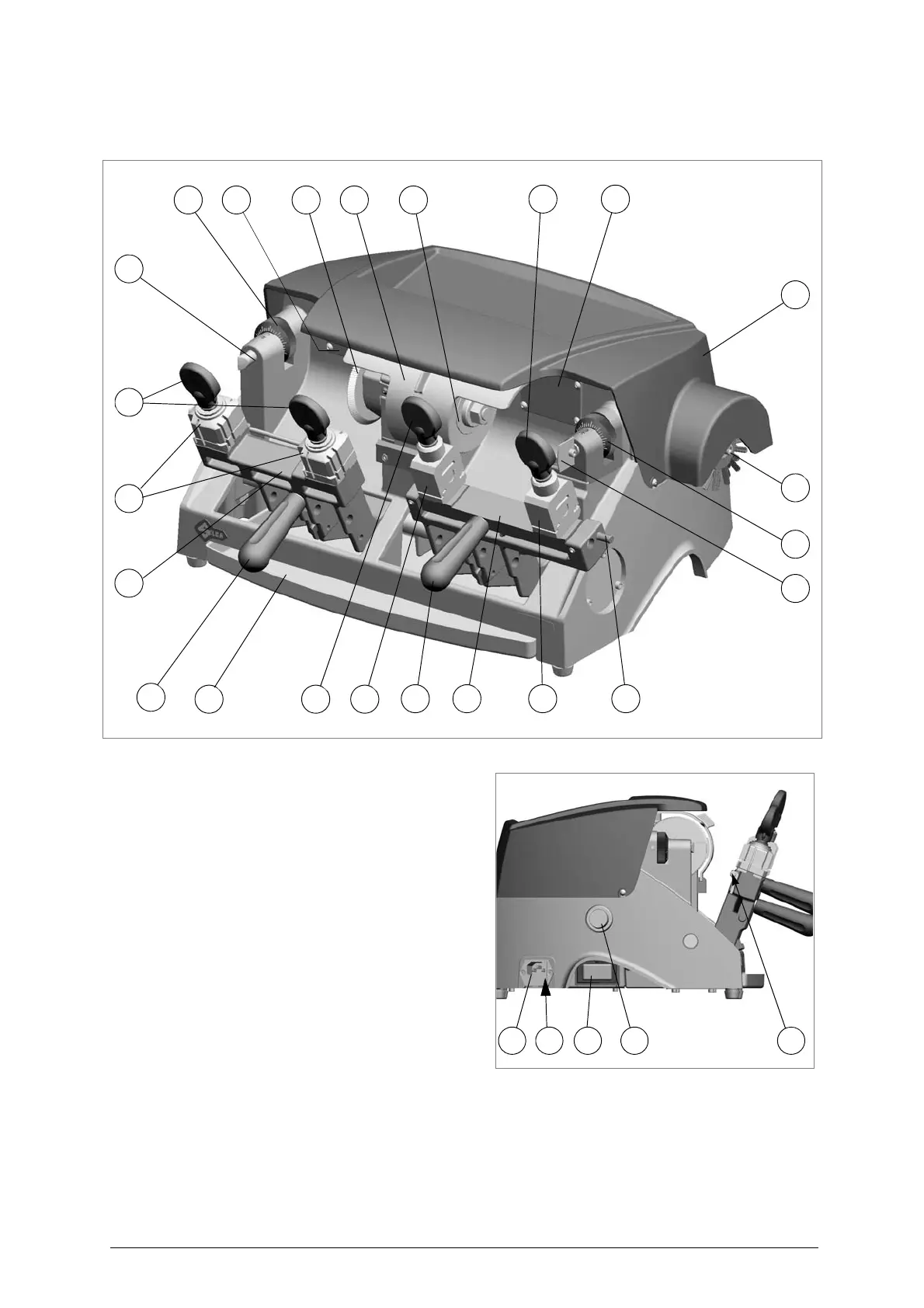

Fig. 6
A - left-hand carriage
B - right-hand carriage
C - left-hand carriage movement lever
D - clamps for flat keys
D1 - gauges knob
E - clamps knobs (left-hand carriage)
F - prismatic cutter for flat keys
G - left tracer point for flat keys
G1 - centesimal ring - left tracer point
H - right-hand carriage movement lever
J - clamps for bit keys
K - clamps knobs (right-hand carriage)
L - tilting movement activating pin (right-hand car-
riage)
M - milling cutter for bit keys
N - right tracer point for bit keys
N1 - centesimal ring - right tracer point
P - brush
Q - top cover
R-lamps
S - chippings tray
T - main switch
U - motor on switch
V - supply socket
V1 - fuses
W - cutters protective shield
A
B
C
D
E
H
J
J
K
K
L
N
G
G1
N1
F M
P
Q
R
S
WR
DUO BRAZIL
TV U D1V1
