1) Turn the clamps to find the appropriate side for securing the key (fig. 38) (fig. 39).
2)
Loosen the knobs
(E)
by a couple of turns
.
3) Raise the lower part of the clamps and turn to the required position (fig. 24):

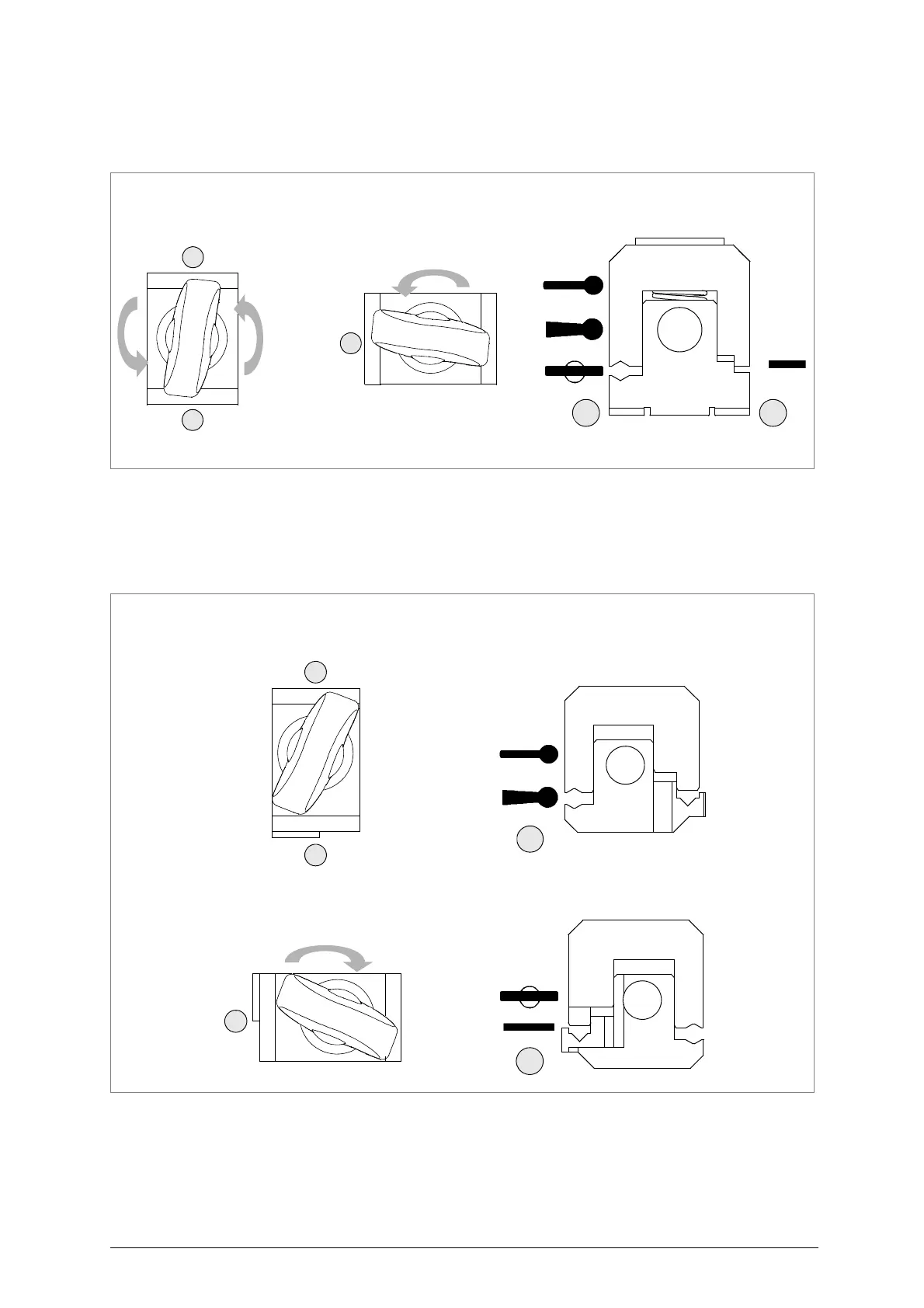

Fig. 38
DUO and DUO BRAZIL
- Clamp side for bit, double bit keys and bit keys with central stop (position 1)
- Clamp side for pump keys with ROUND stem (position 1 turned 90°)
- Clamp side for mail box keys (position 2)
Fig. 39
DUO POWER
- Clamp side for bit, double bit keys and bit keys with central stop (position 1)
- Clamp side for pump keys (position 2 turned 90°)
180°
90°
1 2
bit and double bit keys
mail box keys
DUO and DUO BRAZIL
1
2
1
pump keys
ROUND stem
1
2
DUO POWER
1
2
90°
pump keys
bit and double bit keys
2
pump keys
